Introduction

This chapter provides an overview of the DSL ports (ADSL and G.SHDSL), their characteristics and the tasks

involved in the conﬁguration.

There is no line modulation setting. The modems automatically adapt to the bit rate and modulation used.

The status LED on the back of the device is blinking while the modem attempts to connect and lit when the

link is established. If the modem keeps blinking, check the cabling,

Conﬁguring PPPoE

explains how to conﬁgure PPPoE on the SmartNode's built-in G.SHDSL card. To conﬁgure the

DSL port for PPPoE, ﬁrst you need to log in to the SmartNode via the CLI and enter conﬁguration mode.

password: <enter>

node>#configure

session MyISP

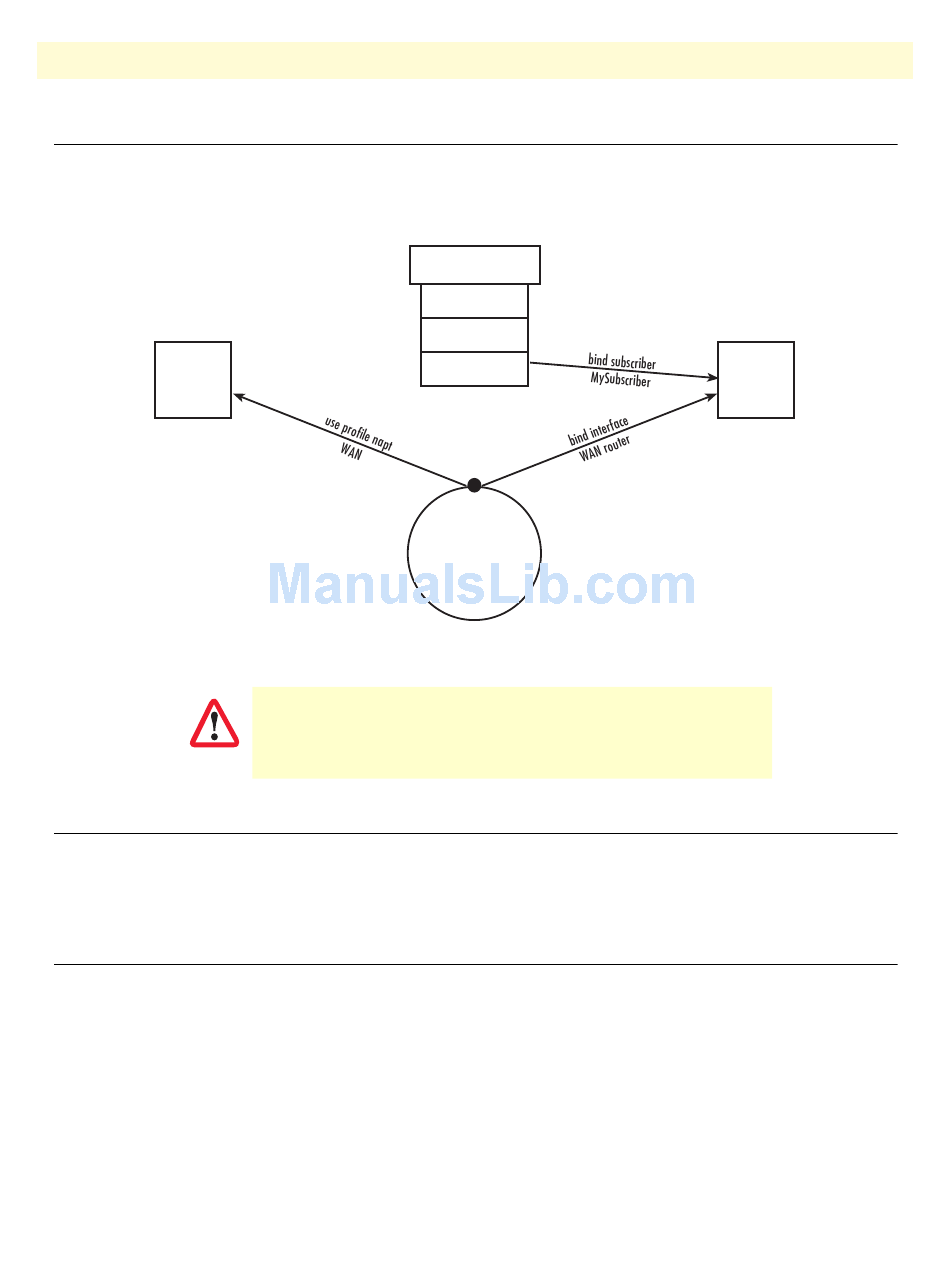

Figure 36. Conﬁguring the G.SHDSL card for PPPoE

The Modem setup uses IP messages within its own subnet:

192.0.2.0/24. SmartNodes with built-in modems cannot use this

subnet in any other way.

21 • DSL Port Configuration

Subscriber PPP

MySubscriber

Smartware release 5.1
