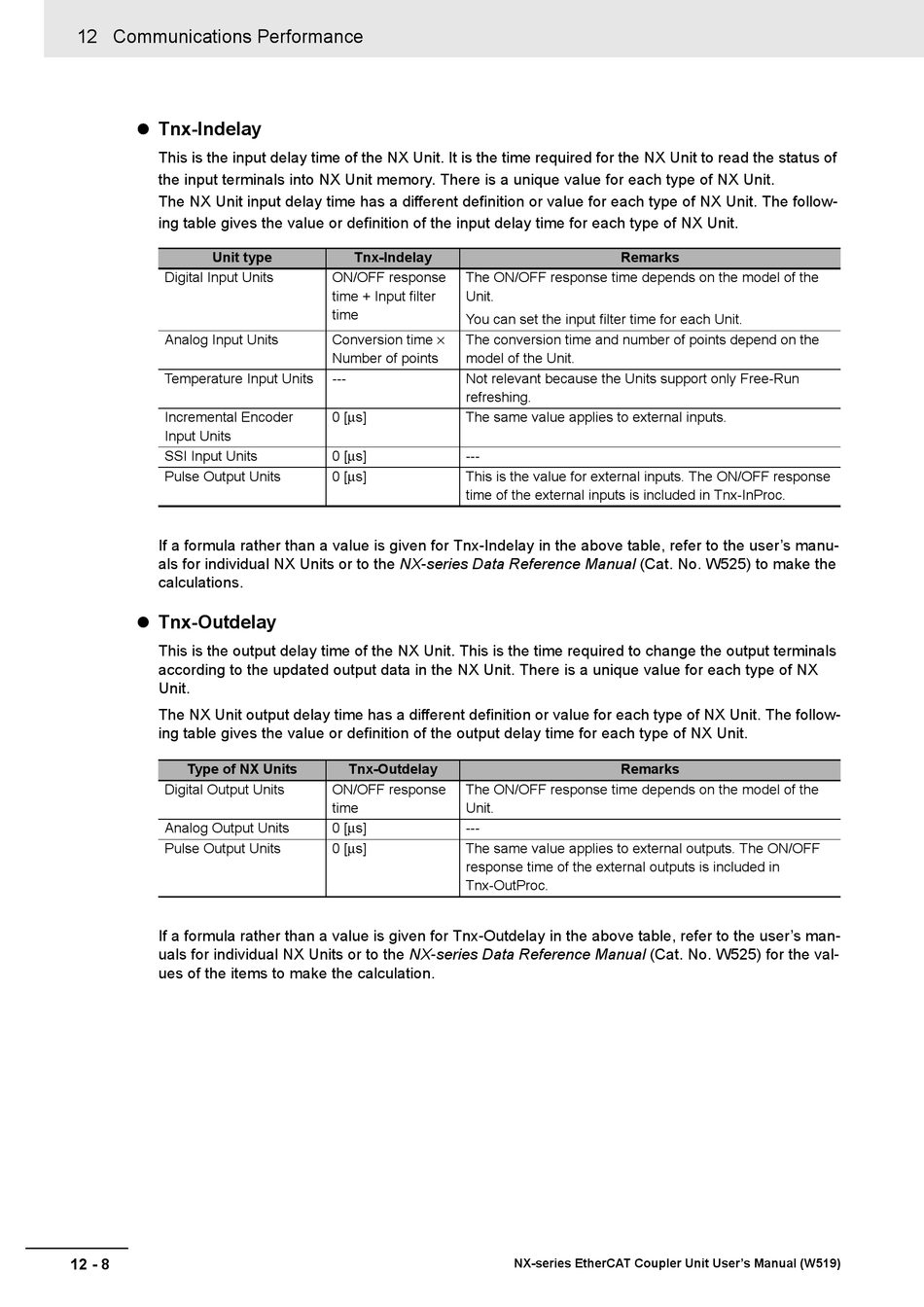

12 Communications Performance
 Tnx-Indelay
This is the input delay time of the NX Unit. It is the time required for the NX Unit to read the status of
the input terminals into NX Unit memory. There is a unique value for each type of NX Unit.
The NX Unit input delay time has a different definition or value for each type of NX Unit. The follow-
ing table gives the value or definition of the input delay time for each type of NX Unit.
Unit type
Digital Input Units
Analog Input Units
Temperature Input Units
Incremental Encoder
Input Units
SSI Input Units
Pulse Output Units
If a formula rather than a value is given for Tnx-Indelay in the above table, refer to the user's manu-
als for individual NX Units or to the NX-series Data Reference Manual (Cat. No. W525) to make the
calculations.
 Tnx-Outdelay
This is the output delay time of the NX Unit. This is the time required to change the output terminals
according to the updated output data in the NX Unit. There is a unique value for each type of NX
Unit.
The NX Unit output delay time has a different definition or value for each type of NX Unit. The follow-
ing table gives the value or definition of the output delay time for each type of NX Unit.
Type of NX Units
Digital Output Units
Analog Output Units
Pulse Output Units
If a formula rather than a value is given for Tnx-Outdelay in the above table, refer to the user's man-
uals for individual NX Units or to the NX-series Data Reference Manual (Cat. No. W525) for the val-
ues of the items to make the calculation.
12 - 8
Tnx-Indelay
ON/OFF response The ON/OFF response time depends on the model of the
time + Input filter Unit.
time
You can set the input filter time for each Unit.
Conversion time ×
The conversion time and number of points depend on the
Number of points model of the Unit.
--- Not relevant because the Units support only Free-Run
refreshing.
0 [μs] The same value applies to external inputs.
0 [μs] ---
0 [μs] This is the value for external inputs. The ON/OFF response
time of the external inputs is included in Tnx-InProc.
Tnx-Outdelay
ON/OFF response The ON/OFF response time depends on the model of the
time Unit.
0 [μs] ---
0 [μs] The same value applies to external outputs. The ON/OFF
response time of the external outputs is included in
Tnx-OutProc.
Remarks
Remarks
