8D–20 WIRING SYSTEM

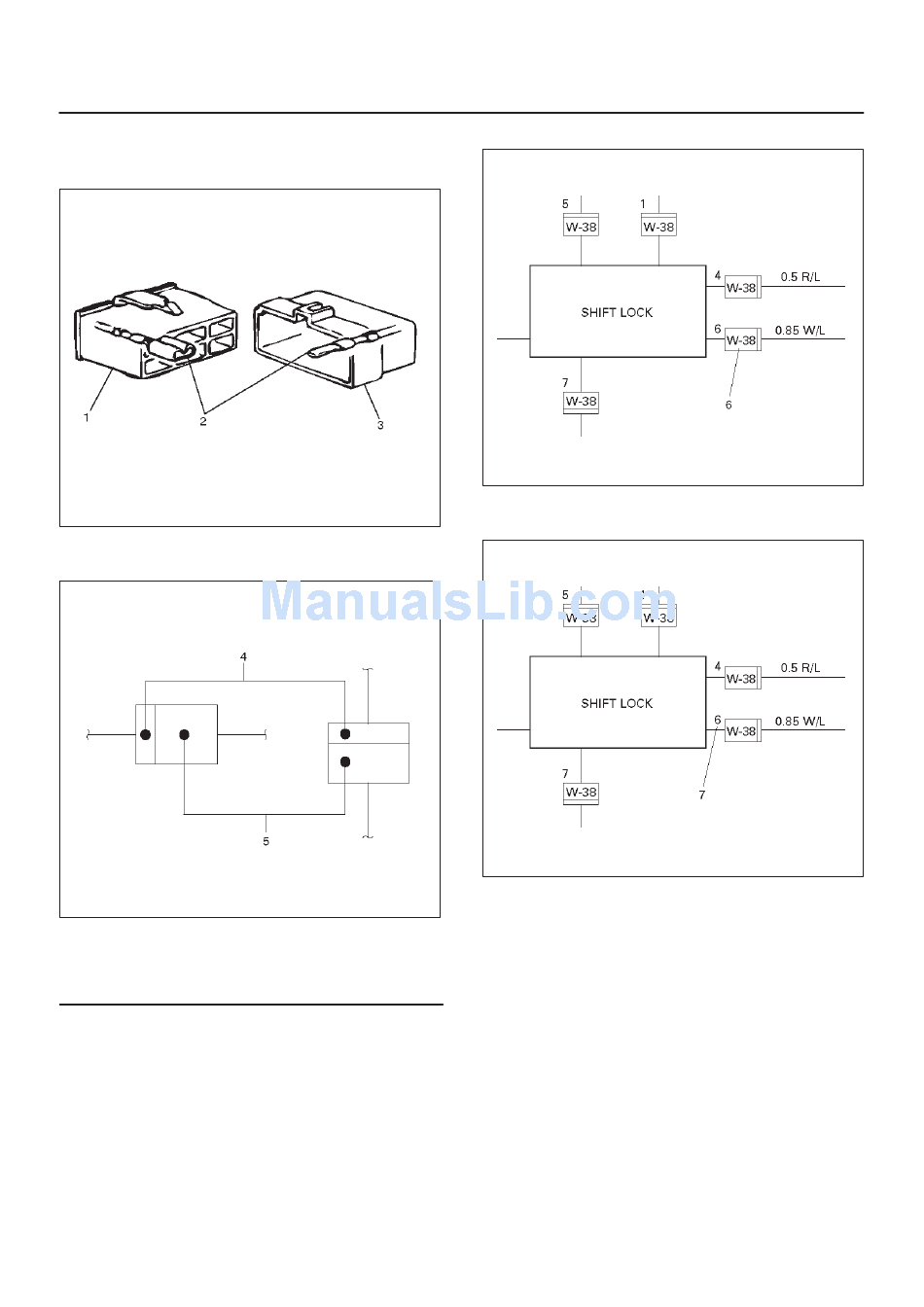

Connector
f The connector pin shape (2) determines whether the
connector is male (3) or female (1).
f The symbol illustrated in the figure is used as
connector, in the circuit of this section.
Legend
(4) Female Side Connector
(5) Male Side Connector
f Connector is identified with a connector number (6)
f The applicable terminal number (7) is shown for each
connector.
D08RW159
D08RW160
D08RW161
D08RW162
