MANUAL TRANSMISSION
7B–56

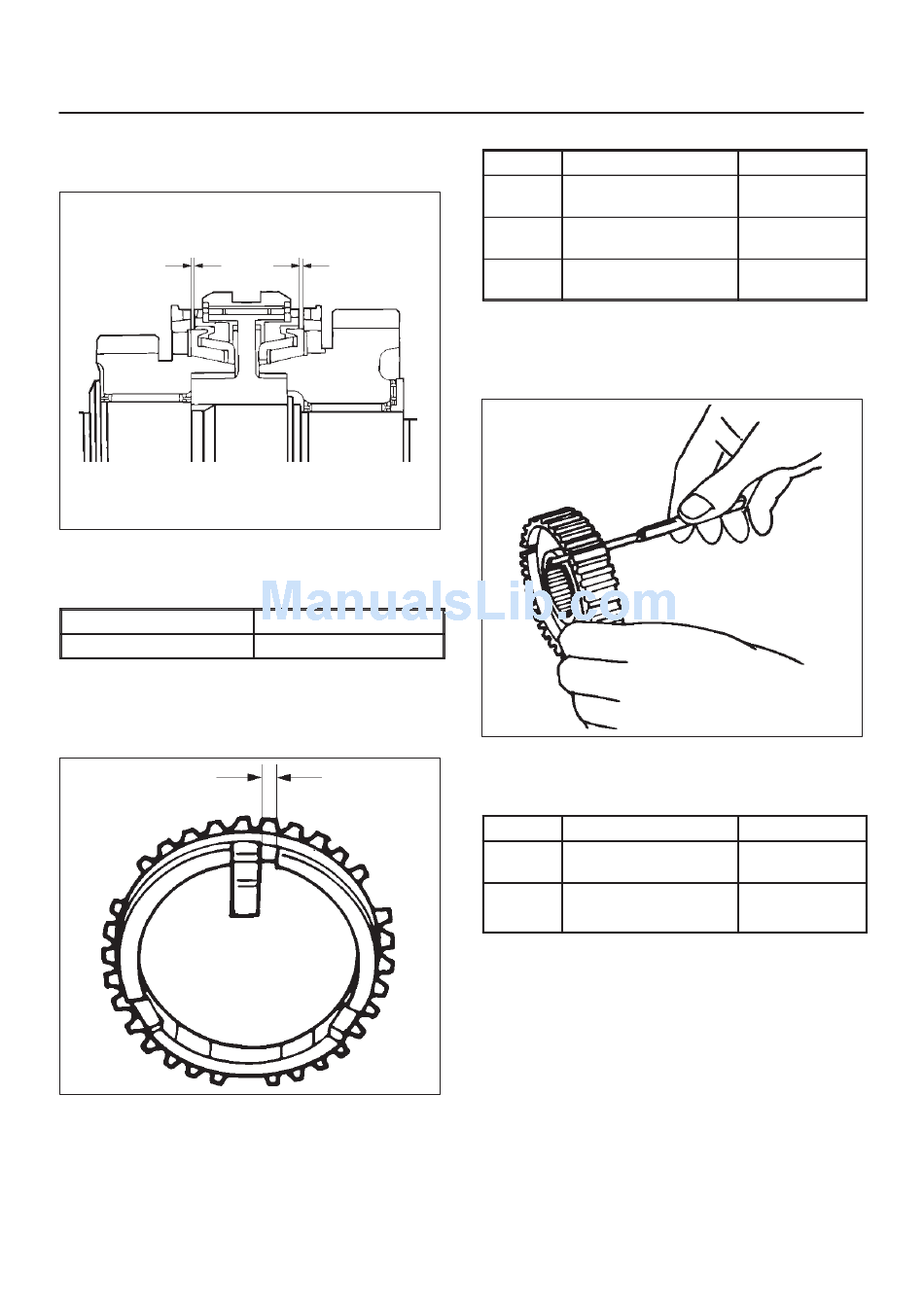

1st–2nd Synchronizer (3–CONE)
f Use a thickness gauge to measure the clearance
between the block ring and the dog teeth.
If the measured value exceeds the specified limit,the
1st–2nd synchronizer assembly must be replaced.
Block Ring and Dog Teeth Clearance
Standard
1.5 mm (0.059 in)
Block Ring and Insert Clearance
f Use a vernier caliper or thickness gauge to measure
the clearance between the block ring and the insert.
If the measured value exceeds the specified limit, the
block ring and the insert must be replaced.
226RS036
Limit
0.8 mm (0.032 in)
226RS037
Block and Insert Clearance
Standard
3.46 – 3.74 mm
3rd–4th
(0.136 – 0.147 in)
4.34 – 4.66 mm
1st–2nd
(0.171 – 0.183 in)
3.59 – 3.91 mm
Rev–5th
(0.141 – 0.154 in)
Clutch Hub and Insert Clearance
f Use a thickness gauge to measure the clearance
between the clutch hub and the insert.
If the measured value exceeds the specified limit, the
clutch hub and the insert must be replaced.
Clutch Hub and Insert Clearance
Standard
0.01 – 0.19 mm
3rd–4th
(0.0004 – 0.0075 in)
1st–2nd
0.09 – 0.31 mm
(0.0035 – 0.0122 in)
Rev–5th
Limit
4.0 mm
(0.158 in)
4.9 mm
(0.193 in)
4.1 mm
(0.161 in)
226RS038
Limit
0.3 mm
(0.012 in)
0.4 mm
(0.016 in)
