Passenger Air Bag Assembly - Isuzu 1999 RODEO Workshop Manual

Service Precaution
WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY–PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD
AFTERWARDS.
WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL
OTHERWISE, PERSONAL INJURY COULD RESULT.
NOTE: In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.
Removal
1. Disable the SRS. (Refer to "Disabling the SRS" in this
section.)
2. Remove glove box assembly.
3. Disconnect passenger air bag assembly harness
connector.
4. Remove air bag assembly fixing bolts and nuts.
5. Remove reinforcement.

Passenger Air Bag Assembly

SOAP AND WATER
DEPLOYMENT.
SUPPLEMENTAL RESTRAINT SYSTEM
6. Remove passenger air bag assembly from glove box
opening of instrument panel.

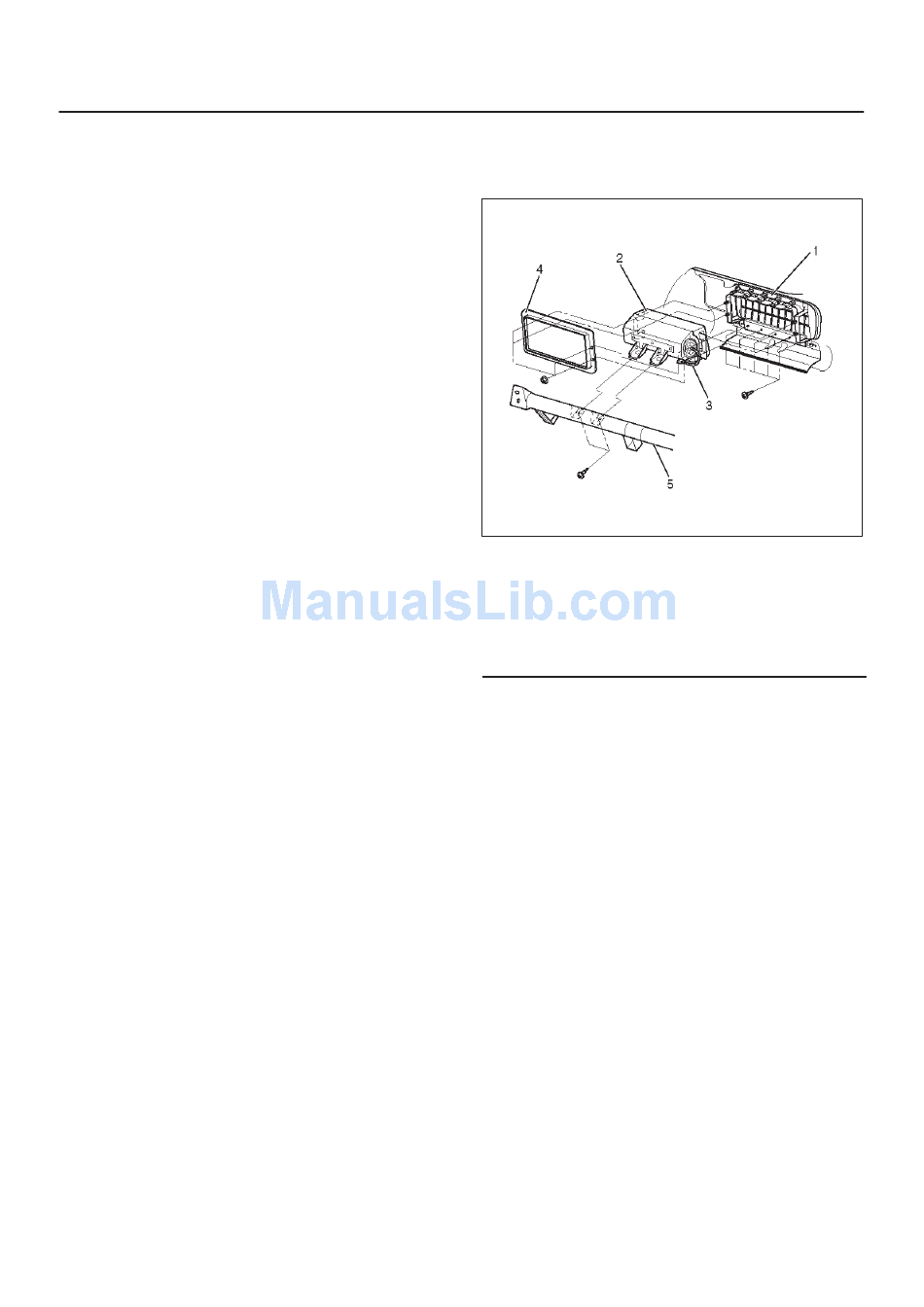

Legend
(1) Passenger Air Bag Door
(2) Passenger Air Bag Assembly
(3) Passenger Air Bag Harness
(4) Reinforcement
(5) Cross Beam
Installation
1. Install passenger air bag assembly from glove box
opening of instrument panel.
2. Install reinforcement from glove box opening of
instrument panel.
3. Install air bag assembly fixing nuts and bolts, and
tighten to specified torque.
Torque: 7.8 N·m (69 lb in)
4. Connect air bag assembly harness connector.
5. Install glove box assembly.
6. Enable the SRS (Refer to "Enabling the SRS" in this
section.)
9J–33
827RX053
