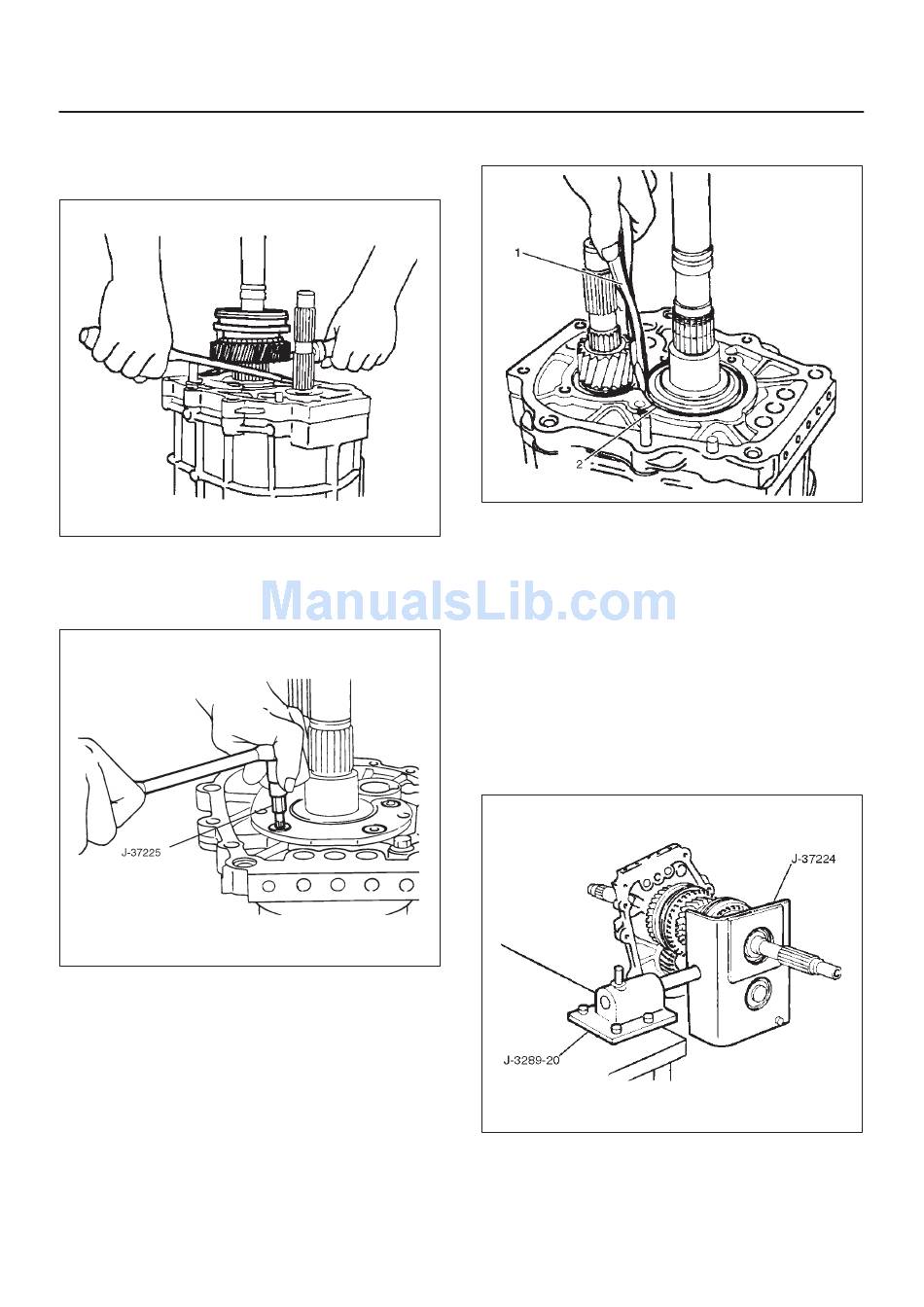

15. Use pry bars between the reverse gear(26) and
bearing plate(28)
synchronizer assembly(24) together with reverse
block ring(25) and reverse gear(26).
16. Remove needle bearing(27).
17. Use the torx bit wrench J–37225(T45) to remove the
bearing plate and screw(28) from the intermediate
plate.
to remove the Rev–5th
226RS010
220RS014
MANUAL TRANSMISSION
18. Use the snap ring pliers(2) to remove the mainshaft
bearing snap ring(1) (29).
19. Hold the snap ring open with the pliers.
Push the intermediate plate(30) toward the rear of the
transmission to remove it.
The bearing snap ring will come free.
Inspection and Repair
Refer to Top Gear Shaft, Main Gear Shaft, and Counter
Gear in this section for inspection and repair.
Reassembly
1. Mesh the counter gear with the mainshaft assembly.
Install the holding fixture J–37224 and base
J–3289–20 to the mainshaft and the counter gear.
7B–47
226RS011
226RS012
