Headlight Adjustment; Fog Light Bulb - Isuzu 1999 RODEO Workshop Manual

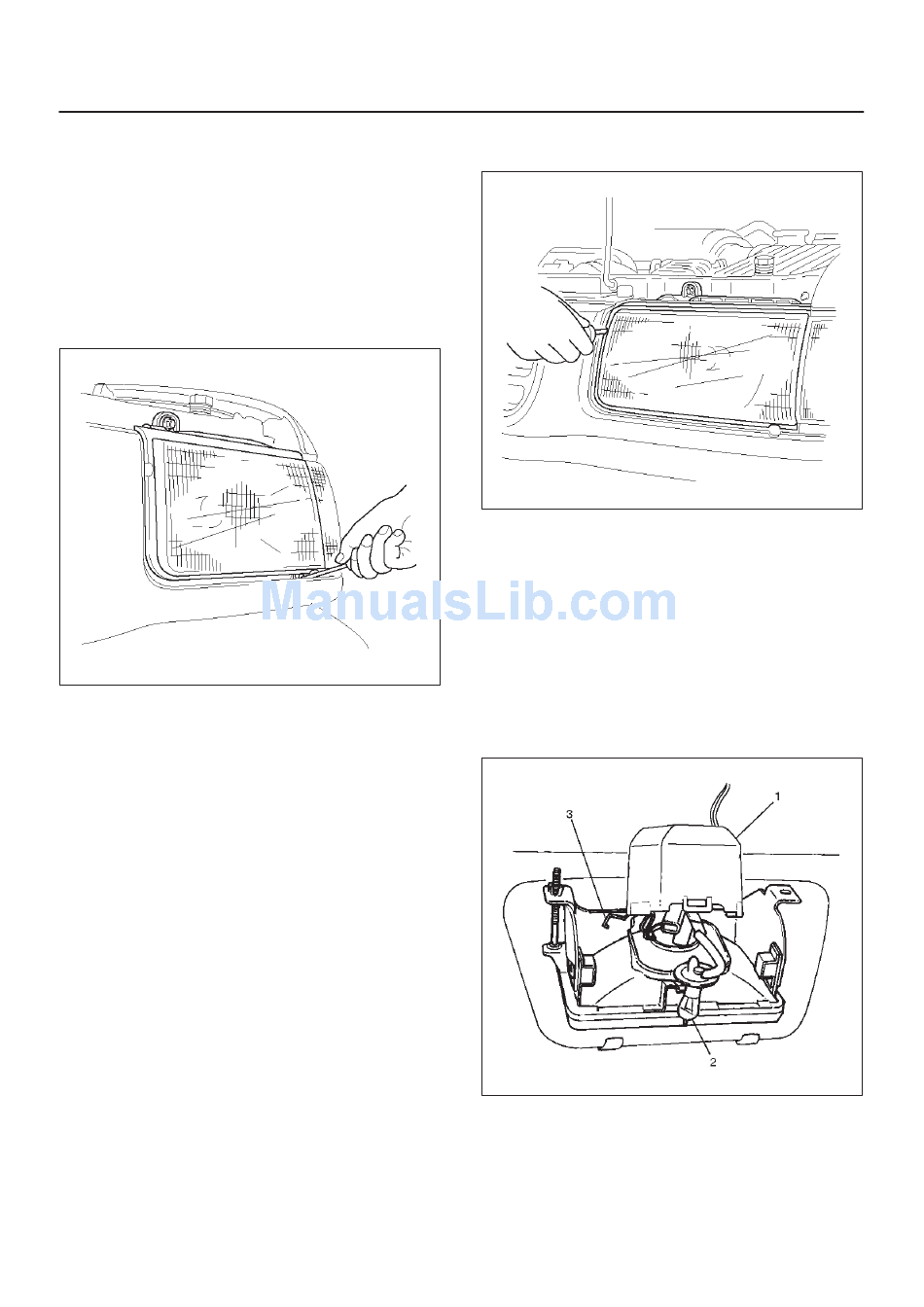

Headlight Adjustment

Preparation
Place the unloaded vehicle on a level surface and check
to see if the inflation pressure of the tires is correct, the
lenses are clean, and the battery is sufficiently charged.
Adjust the aim with the headlight tester, if necessary.
When adjusting, follow the procedure of the tester
manufacture's.
Vertical Adjustment
Use a screwdriver for vertical adjustment.
Removal
1. Disconnect the battery ground cable.
2. Remove the fog light bulb (2).
f Open the rear cover (1).
f Remove the dust cover.
f Disconnect the bulb connector.
f Remove the clip (3).
Horizontal Adjustment
Use a screwdriver for horizontal adjustment.
825RW064

Fog Light Bulb

Installation
To install, follow the removal steps in the reverse order.
LIGHTING SYSTEM 8A–3
825RW066
801RW002
