7A–32 AUTOMATIC TRANSMISSION (4L30–E)

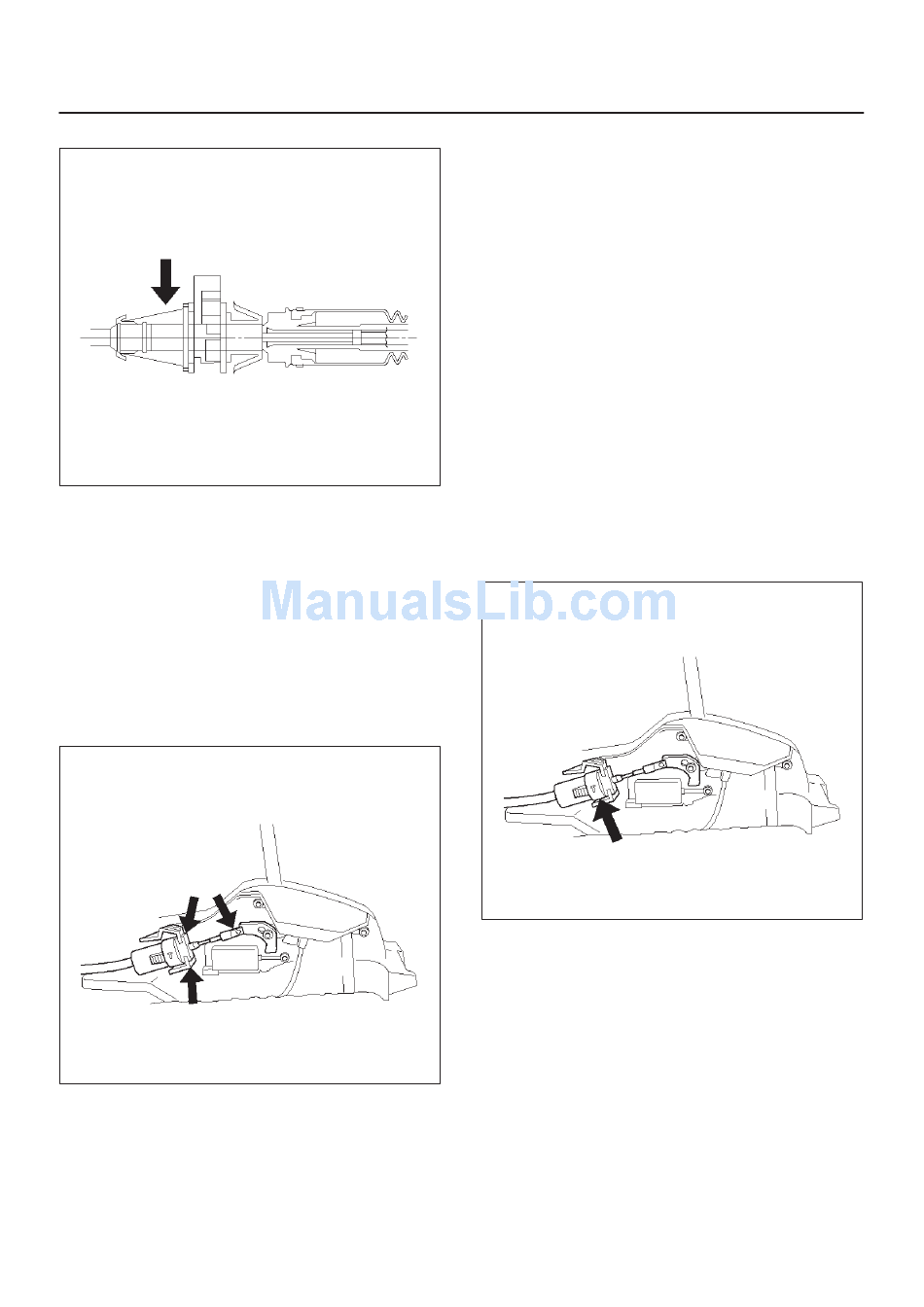

8. Push lock into adjust end fitting attachment.

1. Set ignition key in "LOCK" position and selector lever

in "P" position.

2. Remove transfer control lever knob, lower cluster

assembly, rear console, center console, selector

lever knob and cover.

f Refer to Selector Lever in this section.

3. Disconnect inner cable from selector lever assembly

then push claw and disconnect cable assembly.

9. Install grommet.

10. About following installation steps, refer to Selector

Lever in this section.

Shift Lock Cable

4. Disconnect lock adjust.

5. Remove instrument panel lower cover and steering

column cover.
