LIGHTING SYSTEM
8A–2

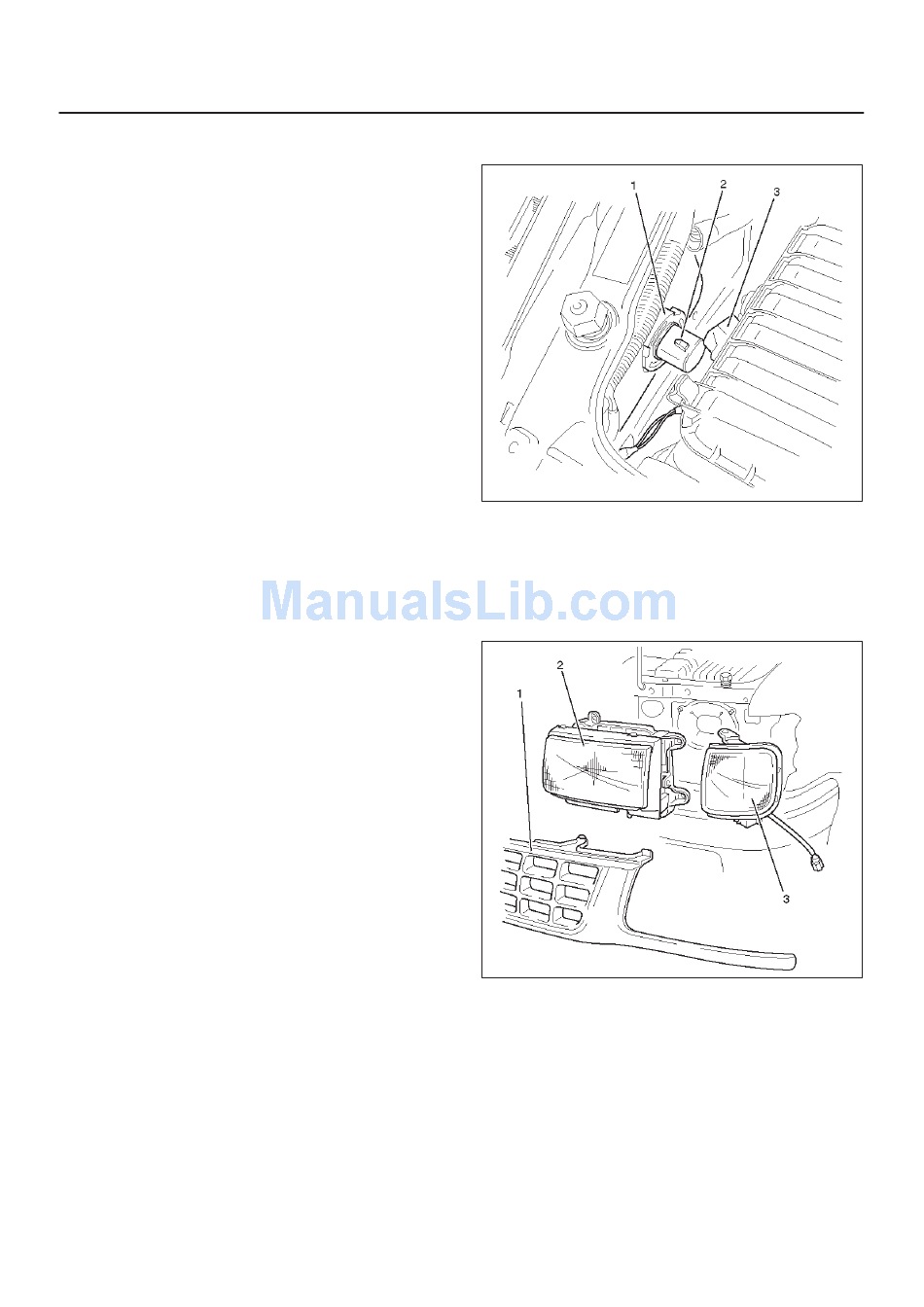

Removal
1. Disconnect the battery ground cable.
2. Remove the headlight bulb (2).
f Disconnect the connector (3).
f Release the socket retaining ring (1).
CAUTION: The halogen light bulb produces heat
and temperature rises high, therefore, if the glass
surface is contaminated it will be burnt by heat
leaving stains which will not come out. This may
reduce the illuminating power or damage the bulb
due to thermal deformation during evaporation. In
order to prevent this problem, do not touch the glass
surface with your fingers.
Removal
1. Disconnect the battery ground cable.
2. Remove the radiator grille (1).
f Remove eight clips and a screw.
3. Remove the side marker light (3).
f Remove three screws.
f Disconnect the connector.
4. Remove the headlight assembly (2).
f Disconnect the connector.
f Remove four screws.

Headlight Bulb

Installation
To install, follow the removal steps in the reverse order.

Headlight Assembly

Installation
To install, follow the removal steps in the reverse order.
CAUTION: After installing the headlight, be sure to
adjust the headlight aim.
825RW062
825RW063
