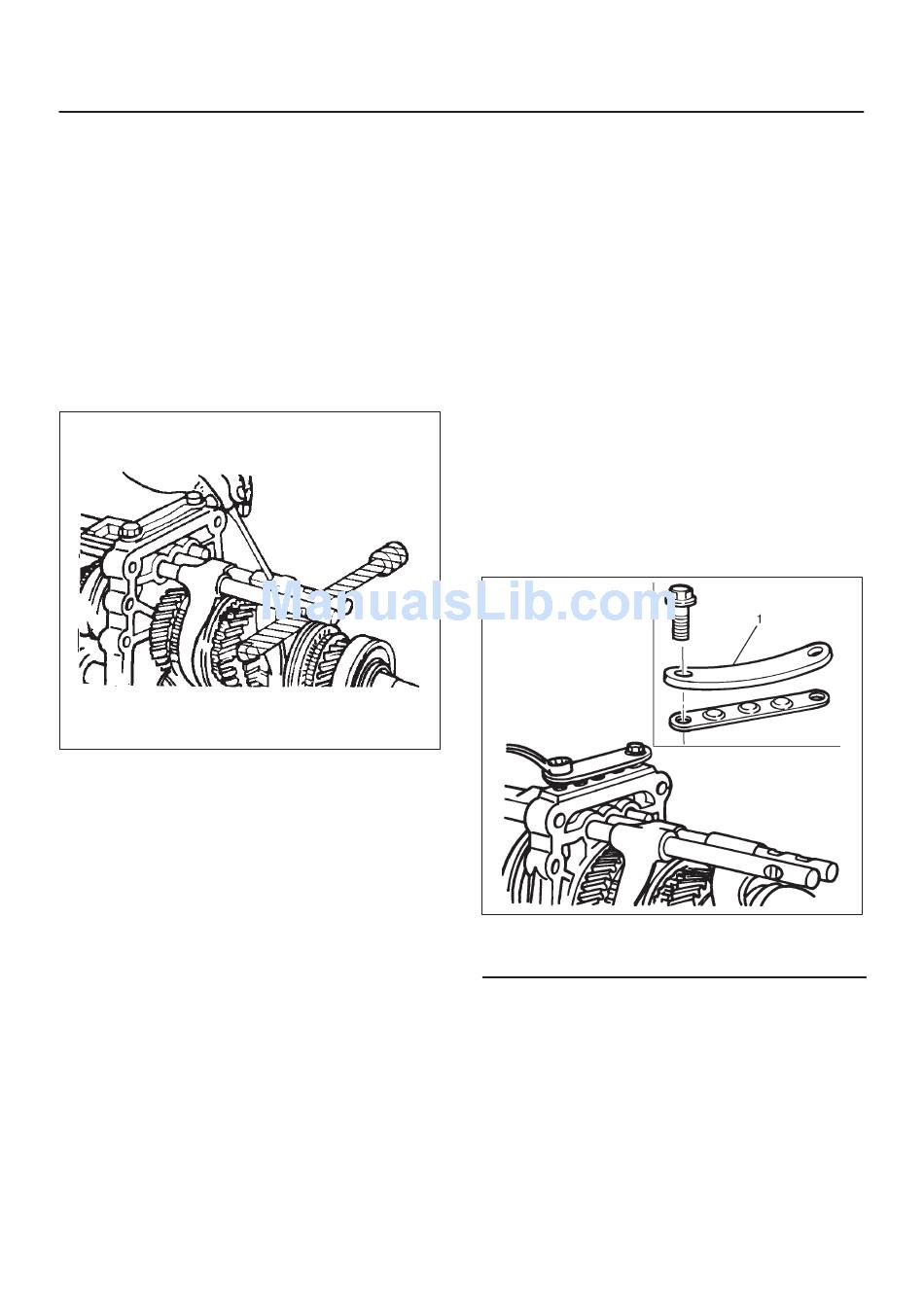

Reassembly
1. Install 1st–2nd shift arm(10) and 3rd–4th shift arm(9)
to intermediate plate and gear assembly(12).
2. Install 3rd–4th shift rod(8) and 1st–2nd shift rod(7).
f Install the interlock pin(11) to the shift rod.
f Install the shift rod together with the interlock pin to
the intermediate plate.
Do not allow the interlock pin to fall from the shift
rod.
f Hold a round bar against the shift rod end lower face
to protect it against damage.
f Install a new spring pin.
Never reinstall the used spring pin.
MANUAL TRANSMISSION
3. Install rev–5th shift arm and reverse inhibitor(6) and
rev–5th shift rod(5).
f Apply oil to the reverse inhibitor inner surface.
f Install the interlock pin(11) to the shift rod.
f Install the shift rod together with the interlock pin to
the intermediate plate.
Do not allow the interlock pin to fall from the shift
rod.
f Hold a round bar against the shift rod end lower face
to protect it against damage.
f Install a new spring pin.
Never reinstall the used spring pin.
4. Install spring(4).
5. Put detent balls(3) in the intermediate plate holes.
f Apply oil to the detent balls.
6. Install detent springs(2) and detent spring plate and
gasket(1).
f Install a new gasket and the detent spring plate.
f Tighten the detent spring plate bolts to the specified
torque.
Torque: 20 N·m (14 lb ft)
230RS007
Legend
(1) Warped
7B–43
220RS030
