Cruise Control Main Switch - Isuzu 1999 RODEO Workshop Manual

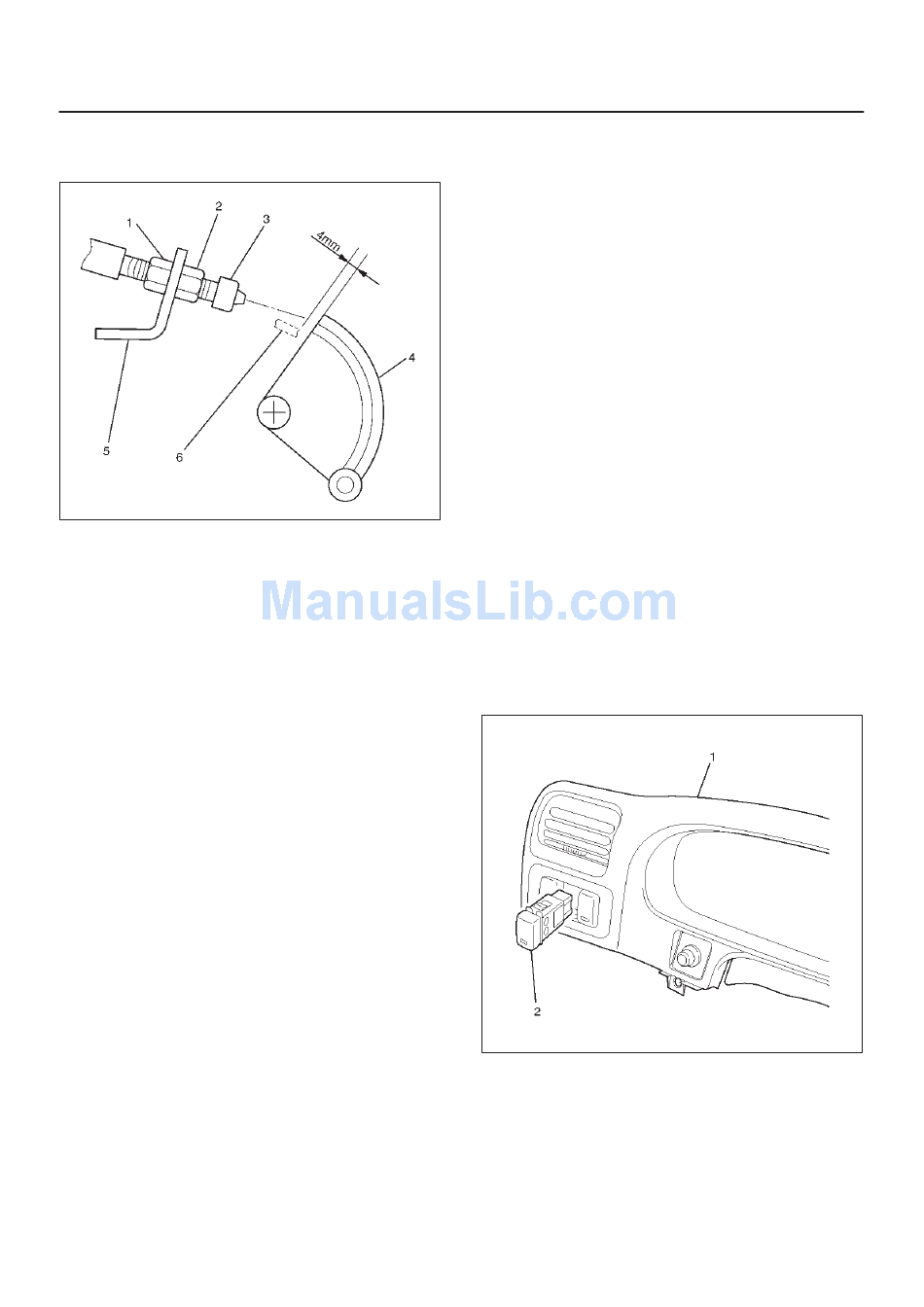

f If the distance between the throttle link (4) and the
throttle link lever (6) is out of the specified range,
loosen the nut (2) to adjust it.
Removal and Installation
Refer to the Mode Switch removal and installation steps
in Automatic Transmission section.
Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly (1).
f Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the rear defogger switch (2).
f Disconnect the switch connector.
f To remove the switch, push the lock from the back
side of the instrument panel cluster assembly.
035RW140
Mode Switch

Cruise Control Main Switch

CRUISE CONTROL SYSTEM
Installation
To install, follow the removal steps in the reverse order.
10A–5
825RW089
