7A–36 AUTOMATIC TRANSMISSION (4L30–E)

Transmission and Associated Parts

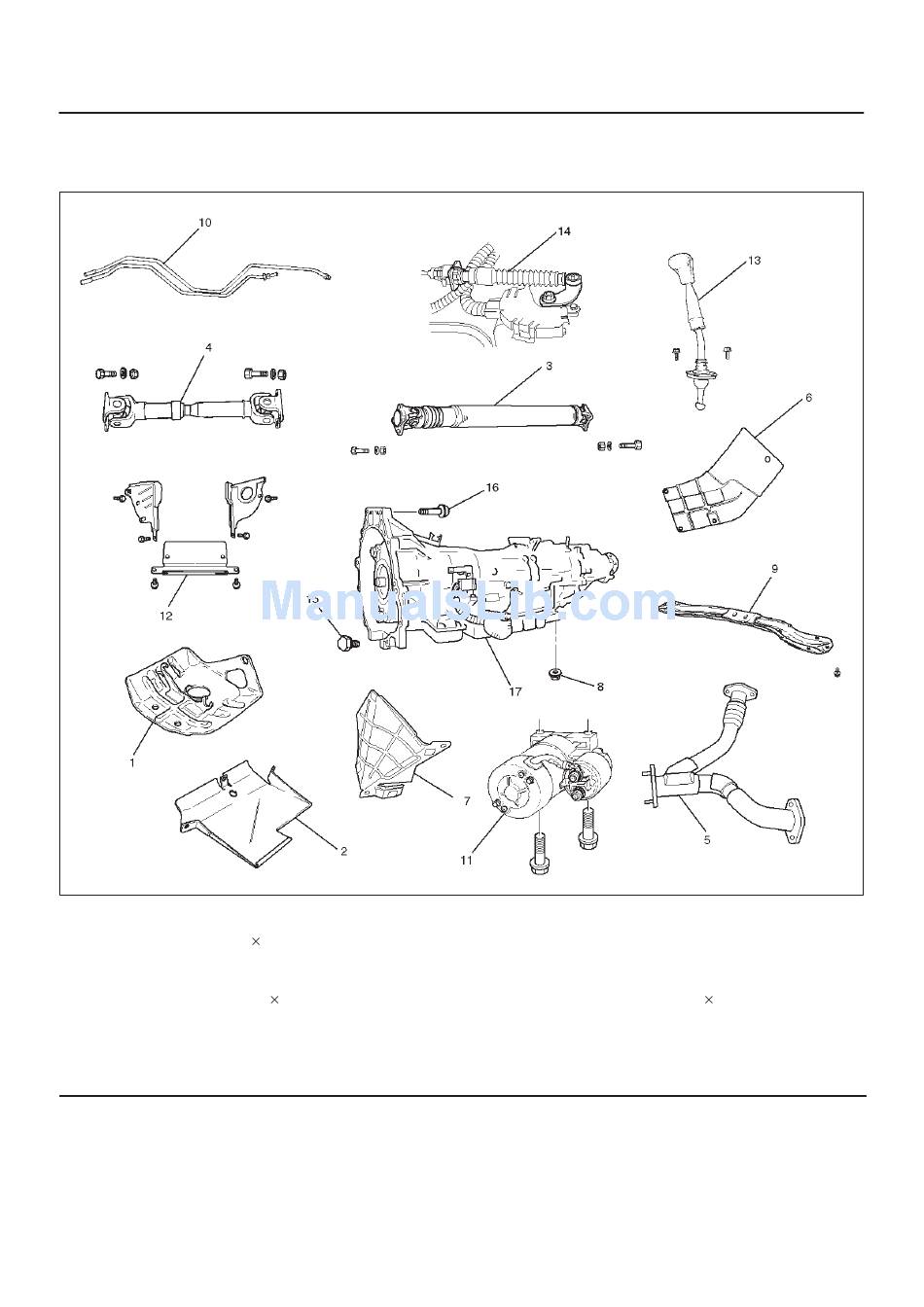

Legend
(1) Transfer Protector (4 4)
(2) Fairing Plate
(3) Rear Propeller Shaft
(4) Front Propeller Shaft (4 4)
(5) Center Exhaust Pipe
(6) Full Pipe Heat Protector
(7) Harness Heat Protector
(8) Rear Mount Nut

Transmission

(9) Third Crossmember
(10) Transmission Oil Cooler Pipe
(11) Starter
(12) Under Cover
(13) Transfer Control Lever (4 4)
(14) Select Cable
(15) Torque Converter Bolt
(16) Engine-Transmission Bolt
(17) Transmission Assembly
240RW010
