Slave Cylinder; Disassembled View; Inspection And Repair - Isuzu 1999 RODEO Workshop Manual

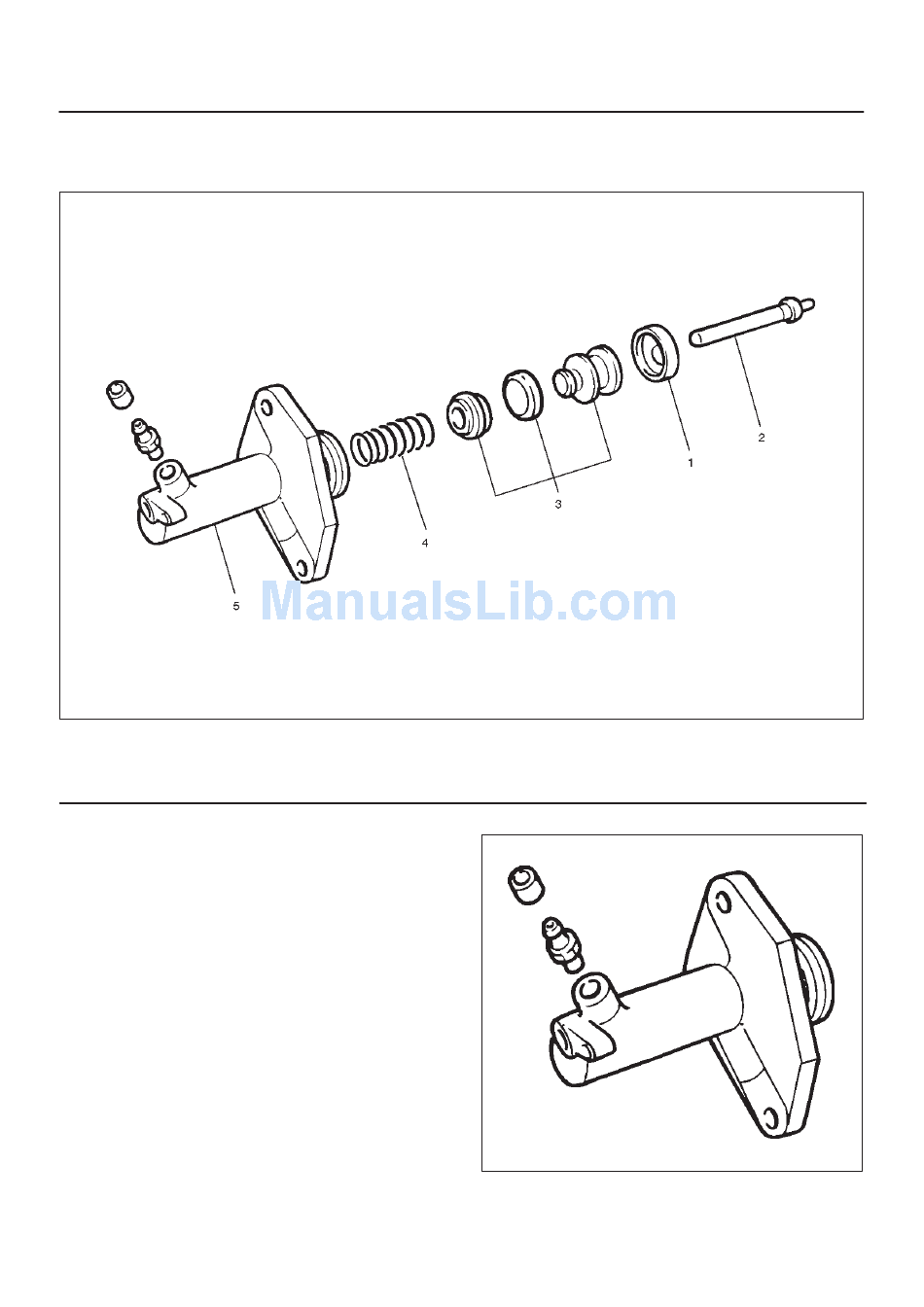

Disassembled View

Legend
(1) Push Rod
(2) Boot
Disassembly
1. Disassemble boot (1), push rod (2), piston and piston
cup (3), and spring (4) from cylinder body (5).

Inspection and Repair

Make the necessary adjustments, repairs, and part
replacements if excessive wear or damage is discovered
during inspection.
Cylinder Body
1. Clean the cylinder body.
2. Check the fluid return port for restrictions and clean it
if necessary.

Slave Cylinder

(3) Piston and Piston Cup
(4) Spring
(5) Cylinder Body
CLUTCH 7C–31
206RS002
