MANUAL TRANSMISSION
7B–38

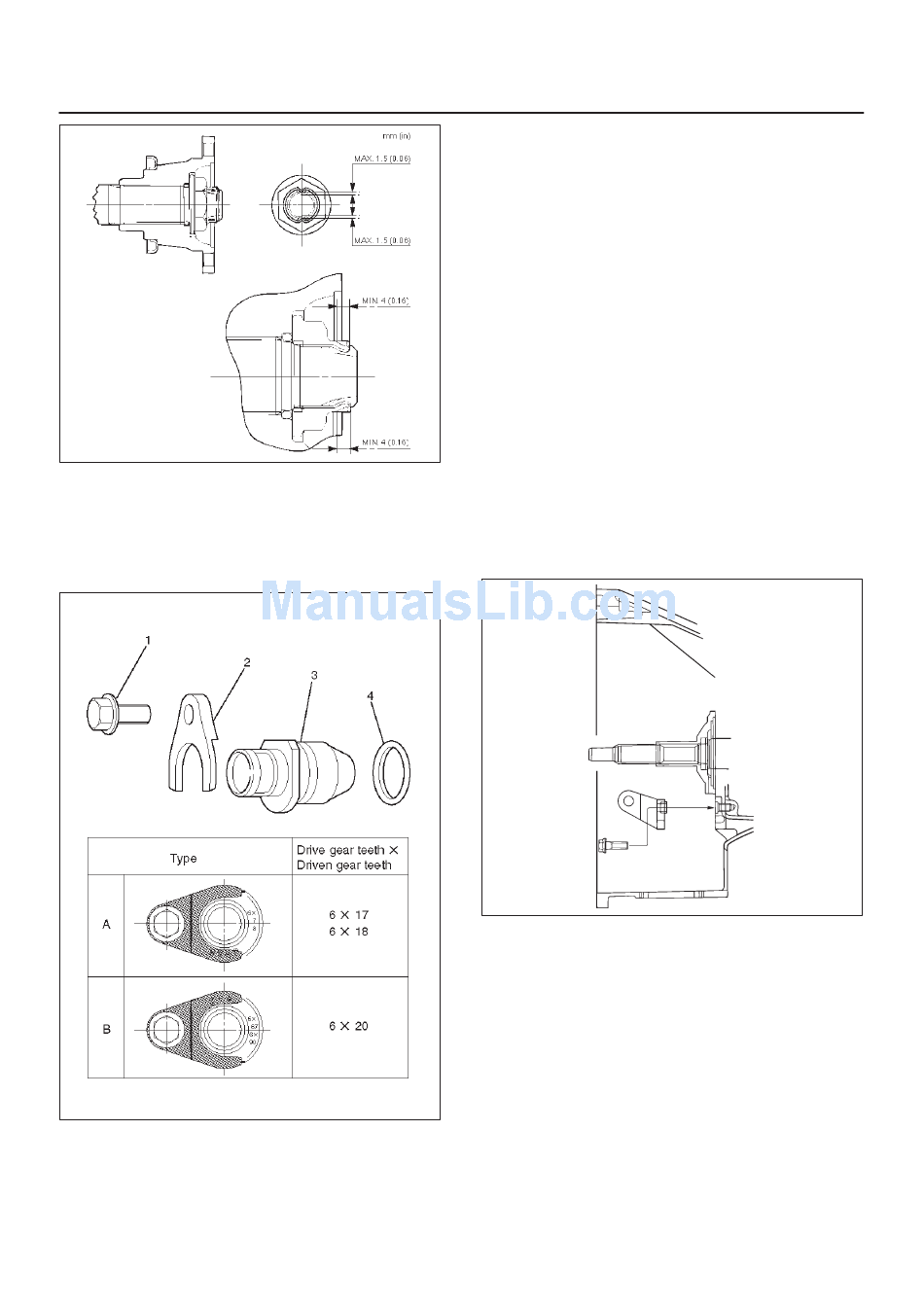

23. Install the O-ring (4) to the speedometer driven gear
bushing(3).
Install the driven gear to the speedometer driven gear
bushing(3).
Install the speedometer driven gear assembly(7) to
the transfer rear cover.
24. Install the plate to the transfer rear cover.
Torque: 15 N·m (11 lb ft)
25. Install the speedometer sensor.
Torque: 27 N·m (20 lb ft)
26. Install top gear bearing snap ring(6) and counter front
bearing snap ring(5).
Use a pair of snap ring pliers to install the snap rings
to the mainshaft and countershaft.
The snap rings must be fully inserted into the bearing
snap ring groove.
27. Install a new packing and front cover (with oil seal) (4)
to the transmission case.
NOTE: Take care not to damage the oil seal.
Notes When Tightening the Bolt:
f After cleaning the bolt hole, dry it thoroughly with air.
f After cleaning the screw face of a removed bolt or new
one, dry it thoroughly. Apply recommended liquid
gasket (LOCTITE 242) or its equivalent before
tightening it.
Tighten six new front cover bolts to the specified
torque.
266RS003
Torque: 25 N·m (18 lb ft)
28. Install the fulcrum bridge(3) to the transmission case.
Tighten three fulcrum bridge bolts to the specified
torque.
Torque: 38 N·m (28 lb ft)
225RW008
220RS009
