Disassembly

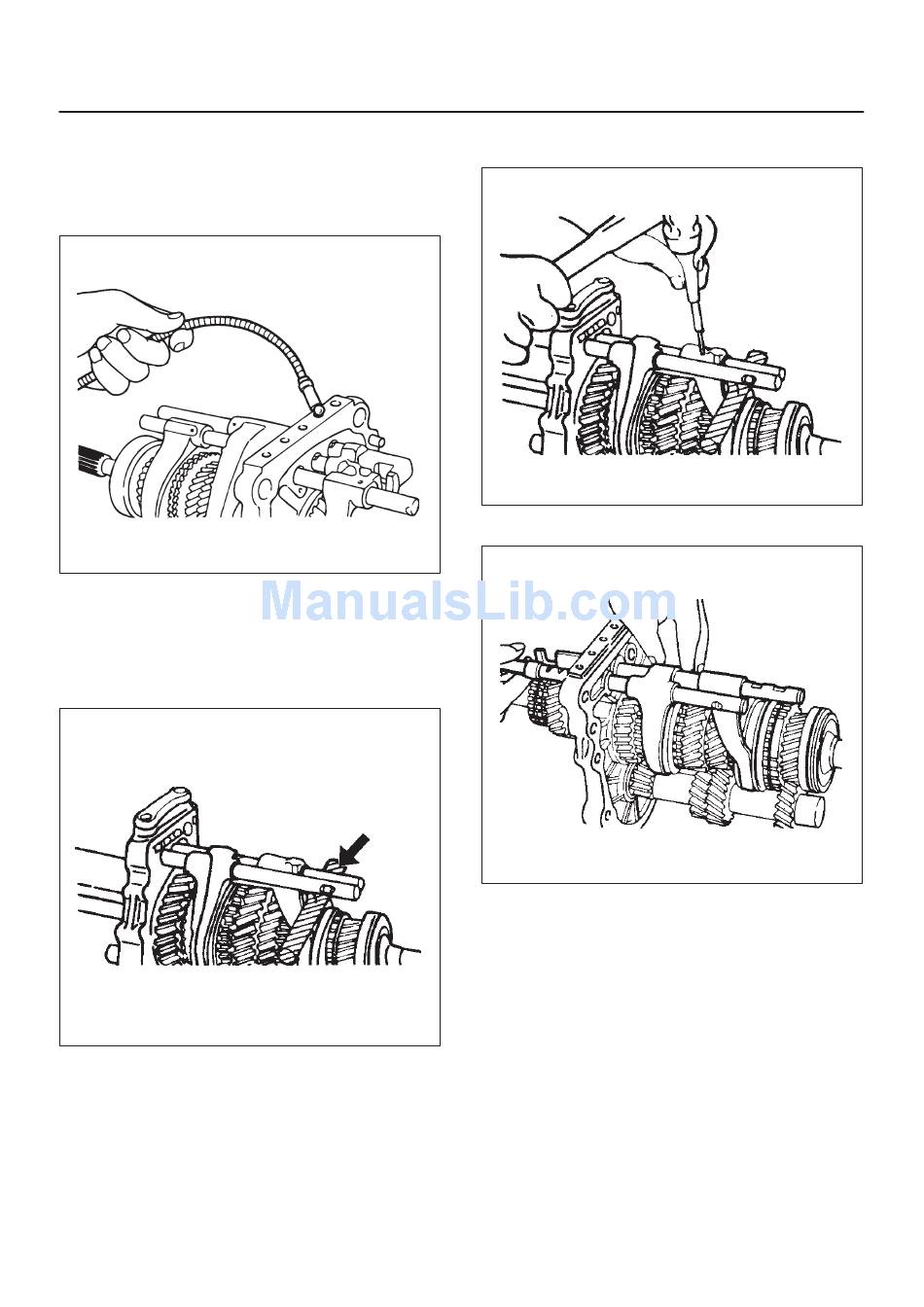

1. Remove detent spring plate and gasket(1), detent
spring(2) and detent ball(3).
Use a magnetic hand to remove the detent balls from
the intermediate plate.
2. Remove spring(4).
3. Remove rev–5th shift rod(5), and rev–5th shift arm
and reverse inhibitor(6).
Remove 1st–2nd shift rod(7), 3rd–4th shift rod(8),
3rd–4th shift arm(9), and 1st–2nd shift arm (10).
f Hold a round bar against the shift rod end.
MANUAL TRANSMISSION
f Use a spring pin remover to remove the shift arm
spring pins from the shift arms and the shift rods.
f Move the 3rd–4th shift rod forward.
220RS011
f Remove the rev–5th, 1st–2nd and 3rd–4th shifter
rods carefully. Interlock pins are located between
the shifter rods in the intermediate plate.
4. Remove interlock pin(11) from intermediate plate and
gear assembly(12).
230RS003
7B–41
230RS004
230RS005
