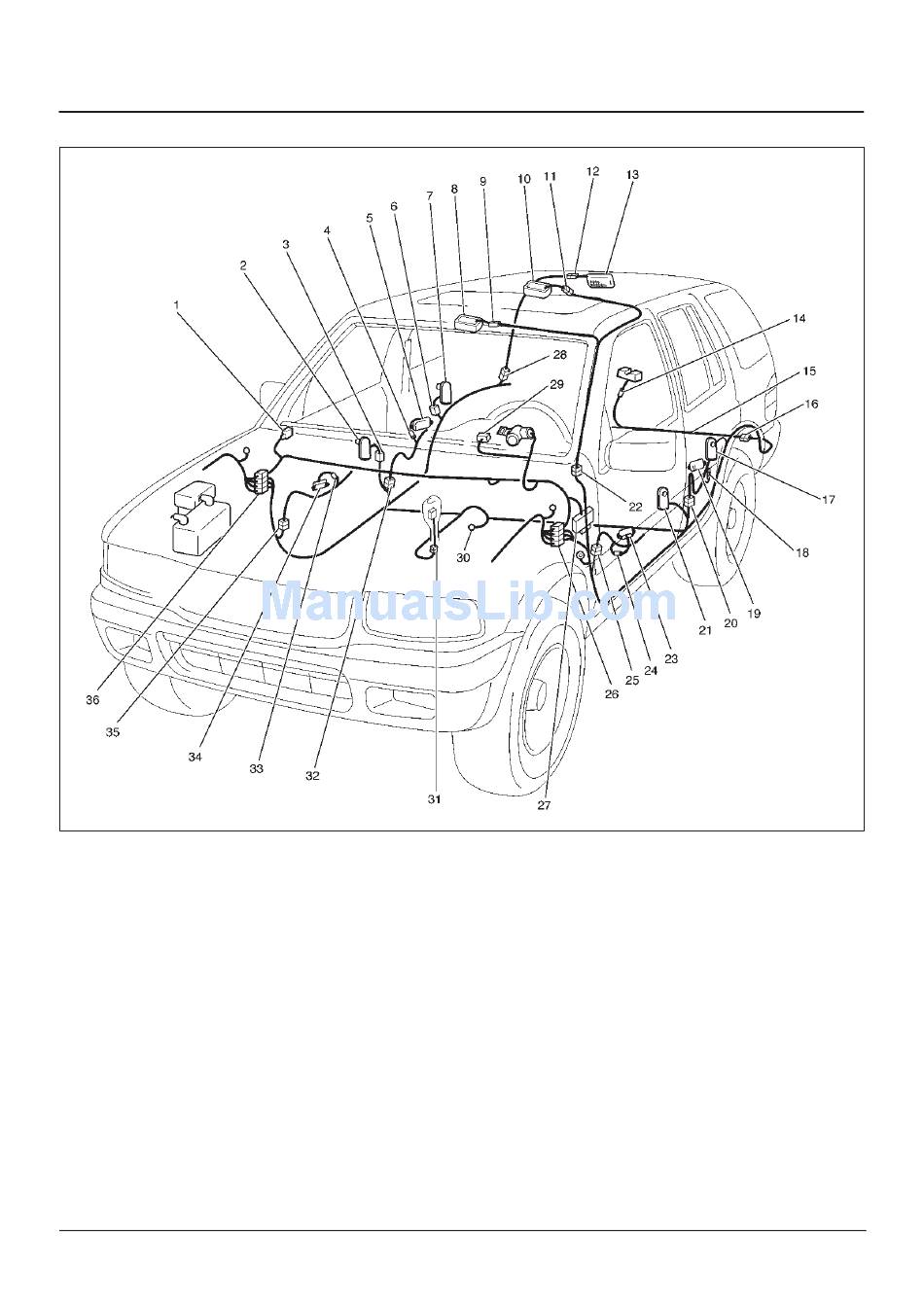

Parts Location

Legend
(1) I–41, I–42
(2) FRT Door SW–RH
(3) B–1
(4) D–29
(5) RR Courtesy–Light–RH
(6) B–21
(7) RR Door SW–RH
(8) Map Light
(9) L–2
(10) Dome Light
(11) L–3
(12) B–11
(13) Luggage Room Light
(14) G–1 (LWB)
(15) Tail Gate Harness
(16) H–22
(17) RR Door SW–LH
(18) B–16
WIRING SYSTEM
(19) RR Courtesy–Light–LH
(20) H–24
(21) FRT Door SW–LH
(22) H–30
(23) FRT Door SW–LH
(24) D–7
(25) H–28
(26) H–31,H–32
(27) I–34, I–44, I–45, I–46
(28) H–22
(29) I–1
(30) B–8
(31) B–22
(32) H–29
(33) FRT Courtesy–Light–RH
(34) D–18
(35) H–33
(36) H–19
8D–125
D08RX063
