MANUAL TRANSMISSION
7B–52
Thrust Washer Availability
Thickness
Color
mm (in)
Coding
7.9 (0.311)
White
(0.317–0.319)
8.0 (0.315)
Yellow
(0.319–0.323)
8.1 (0.319)
Green
(0.323–0.327)
8.2 (0.323)
Bluen
(0.327–0.329)
f Apply grease to the thrust washer and the lock ball.
f Install the thrust washer and the lock ball.
Clearance
A mm (in)
mm (in)
8.05–8.1
0.15–0.25
(0.006–0.010)
8.1–8.2
0.1–0.25
(0.004–0.010)
8.2–8.3
0.1–0.25
(0.004–0.010)
8.3–8.36
0.1–0.21
(0.004–0.008)
226RS024
17. Install thrust plate(8) and retainer(7).
18. Install retaining snap ring(6), clip(5), speedometer
drive gear(4), and bearing snap ring(3). (4X2)

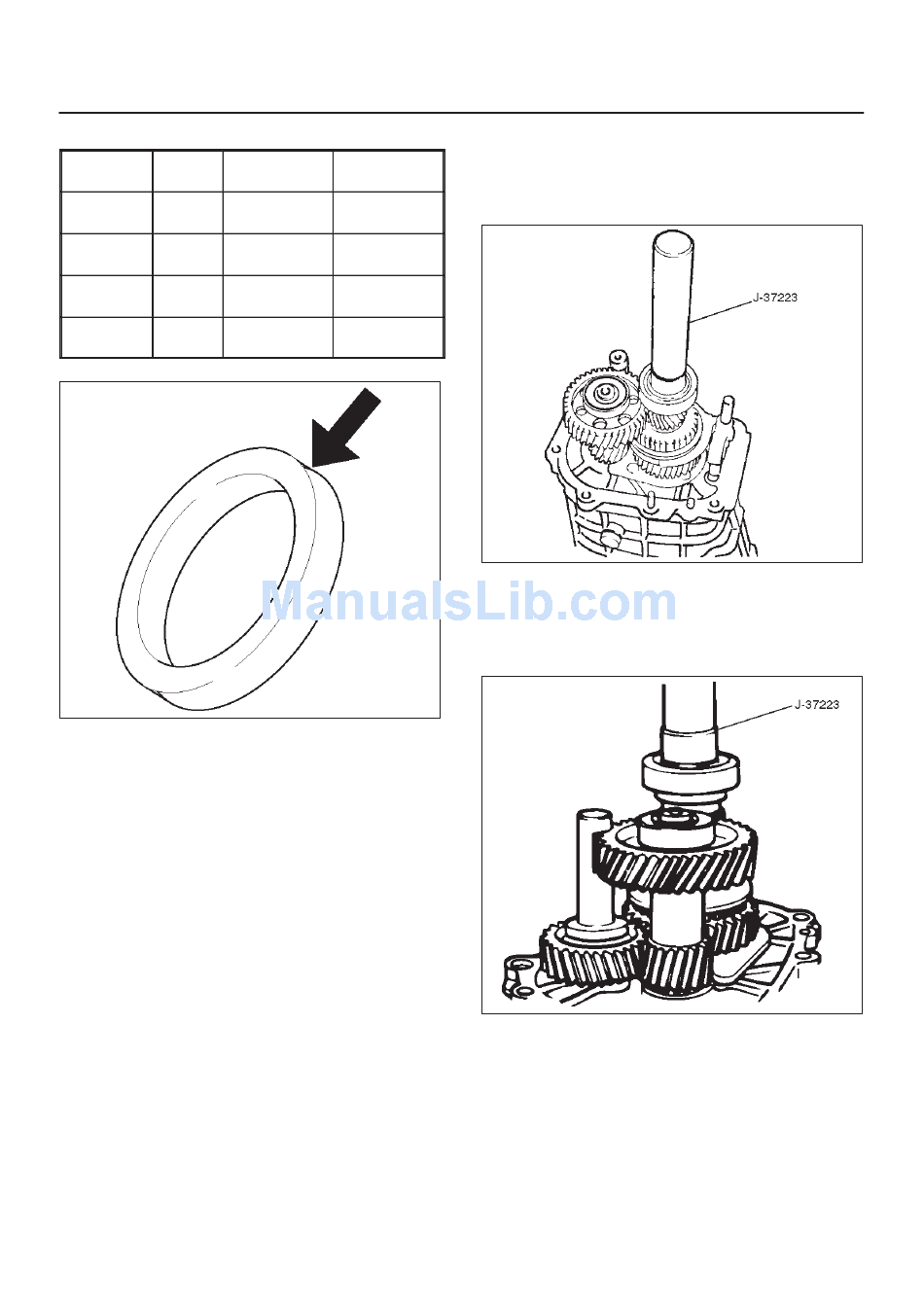

19. Use the installer J–37223 to install the ball bearing(2)
to the mainshaft. (4X2)
20. Install bearing snap ring(1). (4X2)
21. Apply engine oil to the bearing inner and outer
circumference. (4X4)
Use the installer J–37223 to install the ball bearing(2)
to the mainshaft in proper direction. (4X4)
22. Install oil seal collar(1). (4X4)
226RS096
226RS025
