Reassembly
1. Apply recommended liquid gasket (LOCTITE 17430)
or its equivalent to the transmission case(12),
intermediate plate(11) and rear cover(9) fitting
surfaces.
2. Install the intermediate plate with gear assembly(11)
to the transmission case(12).
Pull out the top gear shaft until the ball bearing snap
ring groove protrudes from the transmission case
front cover fitting face.
Avoid subjecting the mainshaft to sudden shock or
stress.
3. Tighten the transmission rear cover bolts to the
specified torque.
Torque: 37 N·m (27 lb ft)
NOTE:
Notes When Tightening the Bolt:
f After cleaning the bolt hole, dry it thoroughly with air.
f After cleaning the screw face of a removed bolt or new
one, dry it thoroughly. Apply recommended liquid
gasket (LOCTITE 242) or its equivalent before
tightening it.
4. Install a new gasket and gear control box
assembly(8).
Install the harness clips and brackets and then tighten
four new gear control box bolts to the specified
torque.
Torque: 20 N·m (14 lb ft)

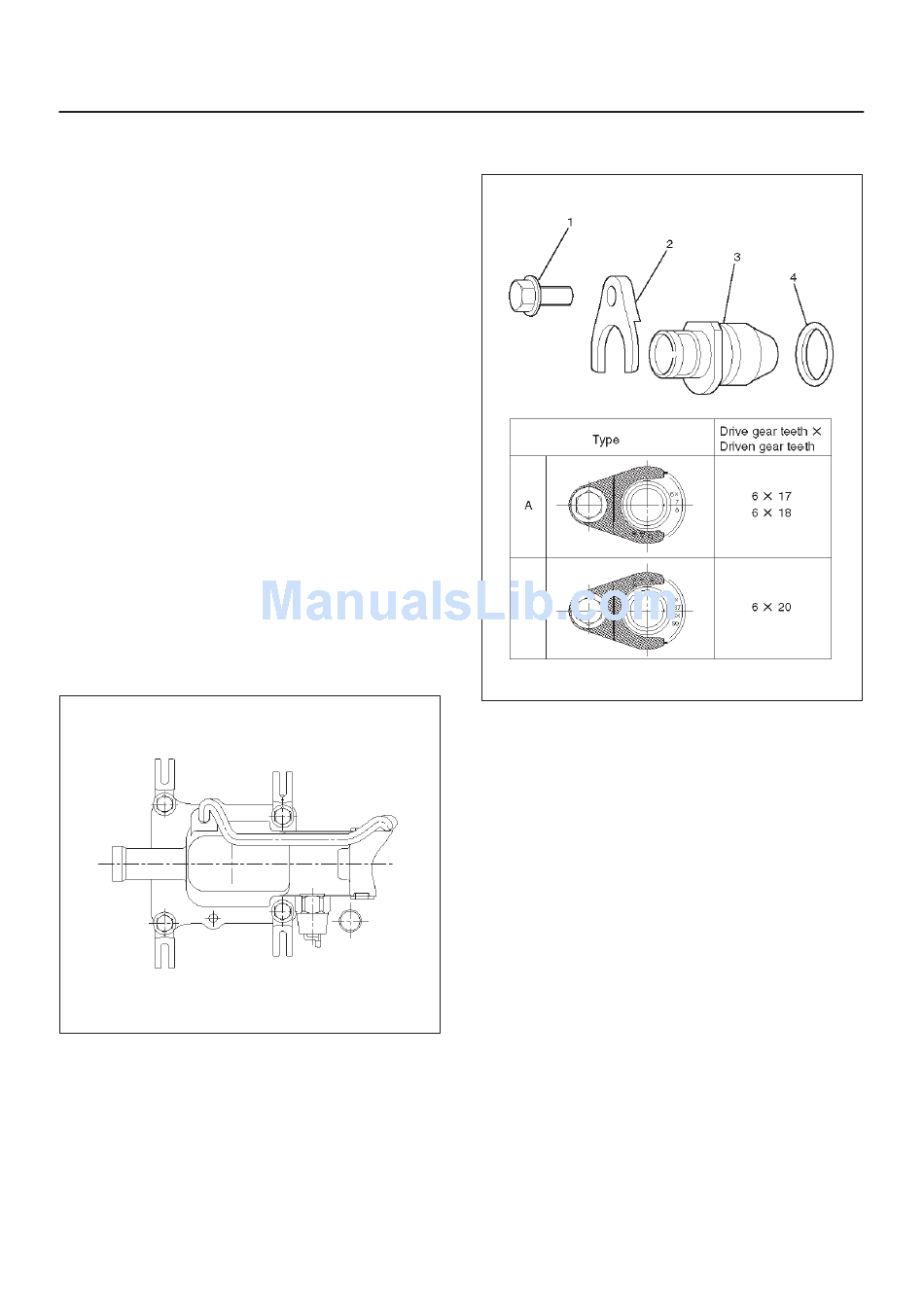

5. Install the O-ring(4) to the speedometer driven gear
bushing(3).
Install the driven gear to the speedometer driven gear
bushing(3).
6. Install the speedometer driven gear assembly(7) to
the transmission rear cover(9).
Install the plate(1) to the transmission rear cover(9).
Torque: 15 N·m (11 lb ft)
MANUAL TRANSMISSION
7. Install the speedometer sensor(7).
Torque: 27 N·m (20 lb ft)
261RW043
7B–27
225RW008
