MANUAL TRANSMISSION
7B–48
2. Place the holding fixture (with the mainshaft and the
counter shaft) in a vise.
Install the intermediate plate(30).
3. Install bearing snap ring(29).
4. Apply recommended
(LOCTITE 242) or its equivalent to each of the
bearing plate screw threads.

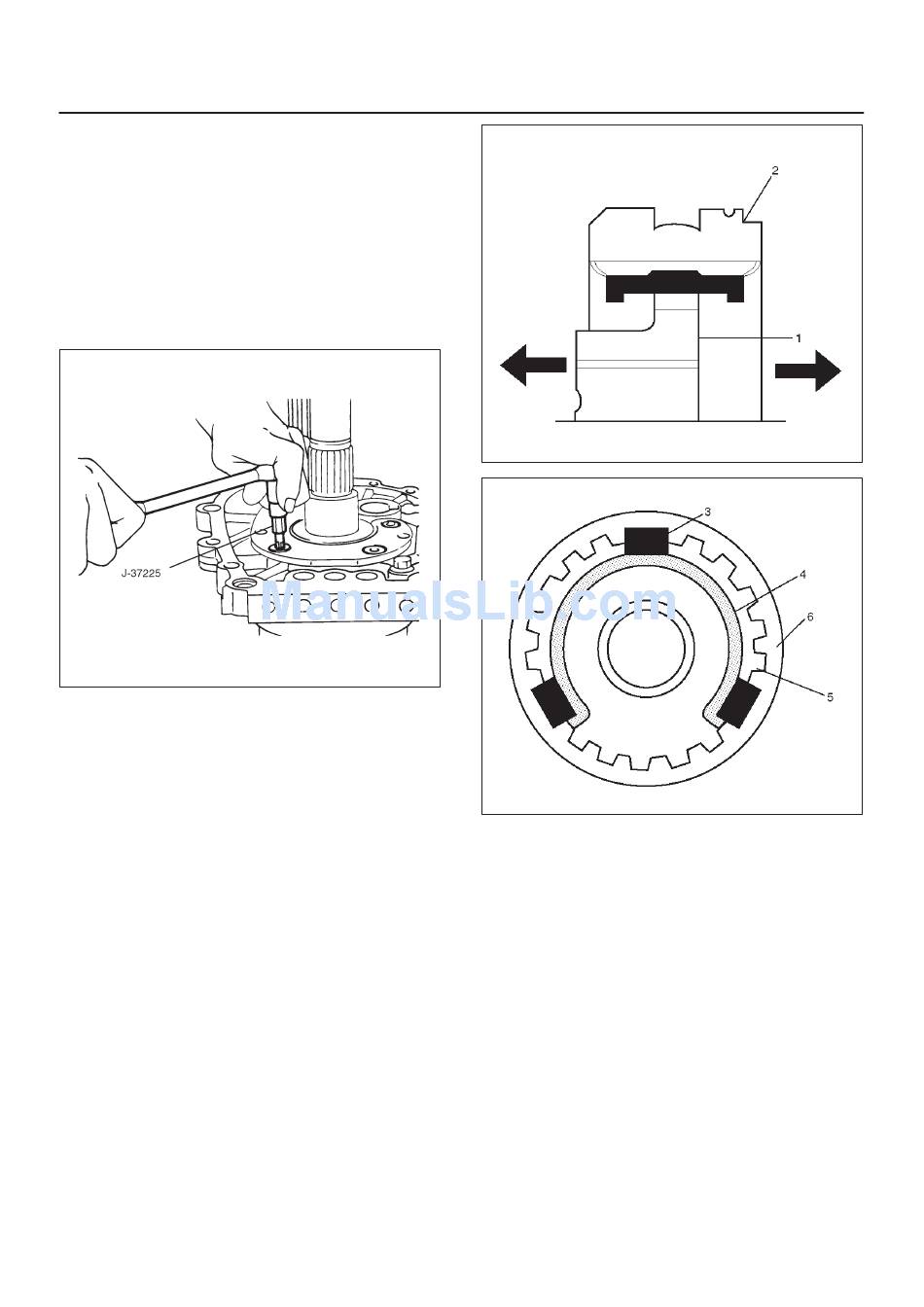

Install bearing plate and screw(28).
Tighten the screws to the specified torque by using
torx bit wrench J–37225.
Torque: 15 N·m (11 lb ft)
5. Install needle bearing(27), reverse gear(26), and
reverse block ring(25).
6. Assemble rev–5th synchronizer assembly(24) by
performing the following steps.
1. Turn the clutch hub face(1) toward the sleeve
groove(2) (rear side) on the outer circumference.
2. Check that the inserts(3) fit snugly into the block
ring insert grooves.
3. Check that the inserts springs(4) are fitted to the
inserts as shown in the illustration.
4. Check that the clutch hub(5) and the sleeve(6)
slide smoothly.
5. Install the synchronizer assembly to the
mainshaft.
The clutch hub face (with the heavy boss) must be
facing the reverse gear side.
thread locking agents
220RS014
226RS013
226RS049
