Isuzu 1999 RODEO Workshop Manual page 2011

Disassembly

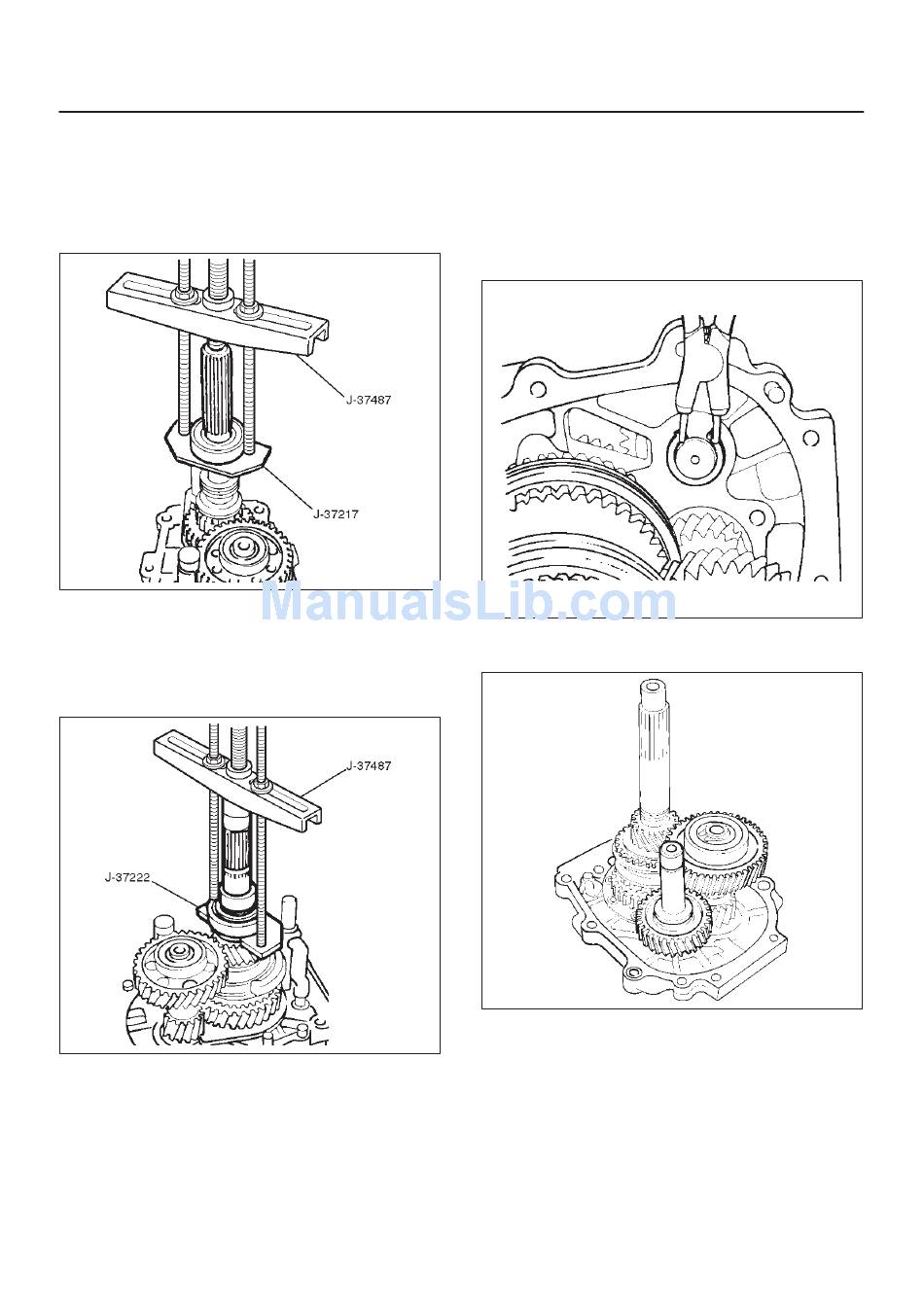

1. Use a pair of snap ring pliers to remove the bearing
snap ring(1). (4X2)
2. Set the bearing remover J–37217 and puller J–37487
to the bearing and the mainshaft end to remove ball
bearing(2). (4X2)
3. Remove bearing snap ring(3), speedometer drive
gear(4), clip(5), retainer snap ring(6) and retainer(7).
(4X2)
4. Set the retaining ring remover J–37222 and puller
J–37487 to the retainer(7) and the mainshaft end.
(4X4)
MANUAL TRANSMISSION
5. Remove the retainer(7) together with the bearing(2)
and the oil seal collar(1). (4X4)
The universal puller may be used in place of the
retaining ring remover.
6. Remove thrust plate(8) and thrust washer and lock
ball(9).
7. Use a pair of snap ring pliers to remove reverse idler
gear snap ring(10).
262RW033
8. Remove the reverse idler gear assembly(11) from the
intermediate plate(30).
9. Remove idle shaft pin(12), thrust washer(13), reverse
idler gear(14), and reverse idler shaft(15).
262RW031
10. Use a pair of snap ring pliers to remove the snap
ring(16).
7B–45
226RS004
226RS005
