MANUAL TRANSMISSION
7B–42

Inspection and Repair

Make the necessary adjustments, and part replacements
if excessive wear or damage is discovered during
inspection.

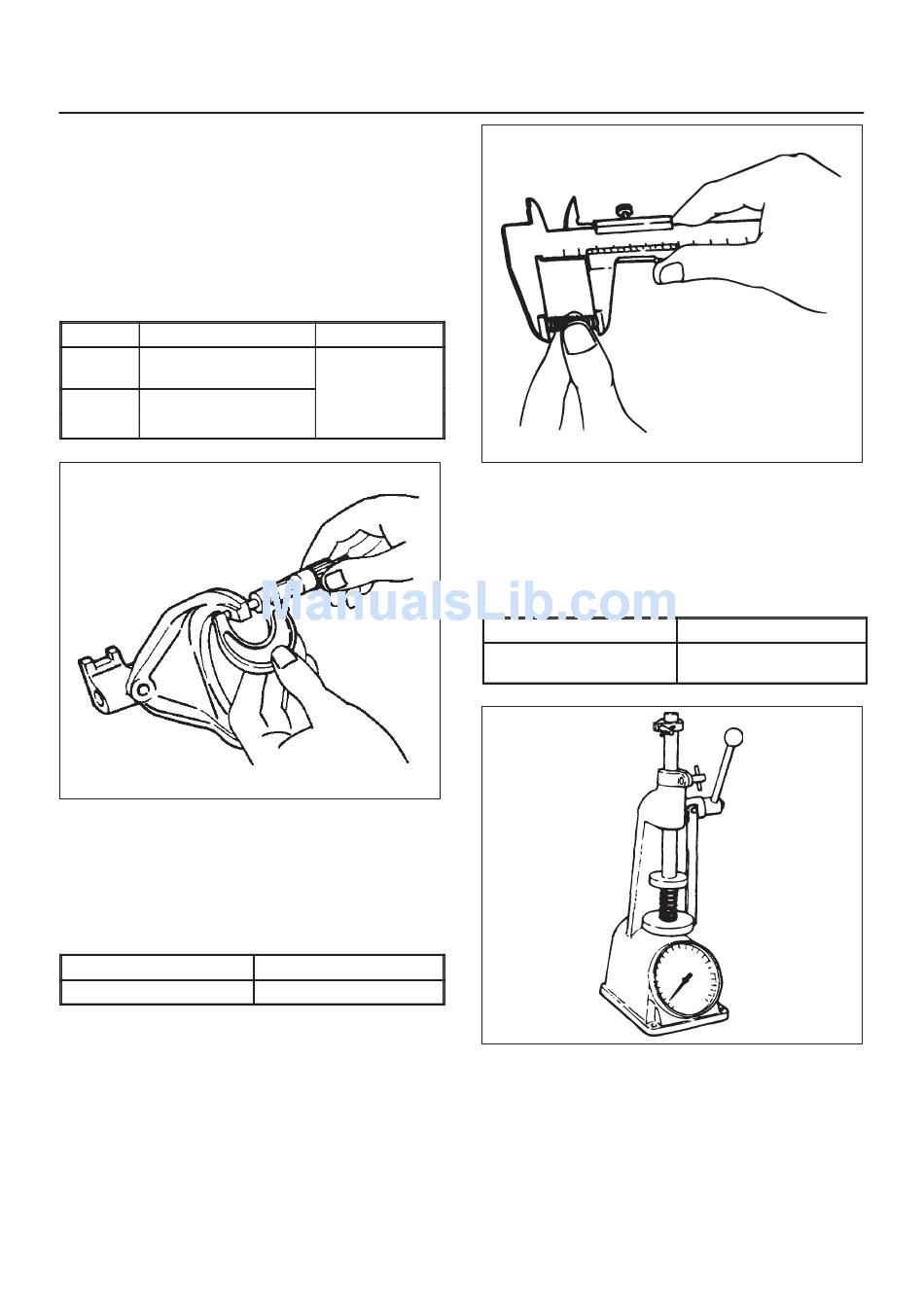

Shift Arm Thickness
f Use a micrometer to measure the shift arm thickness.
If the measured value is less than the specified limit,
the shift arm must be replaced.
Shift Arm Thickness
Standard
9.60–9.85 mm
1st–2nd
(0.378–0.388 in)
3rd–4th
9.60–9.80 mm
(0.378–0.386 in)
Rev.5th
Detent Spring Free Length
f Use a vernier caliper to measure the detent spring
free length.
If the measured value is less than the specified limit,
the detent spring must be replaced.
Detent Spring Free Length
Standard
26.8 mm (1.06 in)
Limit
9.0 mm 9.0 mm
(0.354 in)
230RS006
Limit
26.2 mm (1.03 in)
Detent Spring Tension
f Use a spring tester to measure the valve spring
tension.
If the measured value is less than the specified limit,
the detent spring must be replaced.
Detent Spring Tension
Compressed height
20 mm (0.787 in)
220RS012
Standard
87.2 – 97.1 N
(19.6 – 21.8 lb)
220RS013
