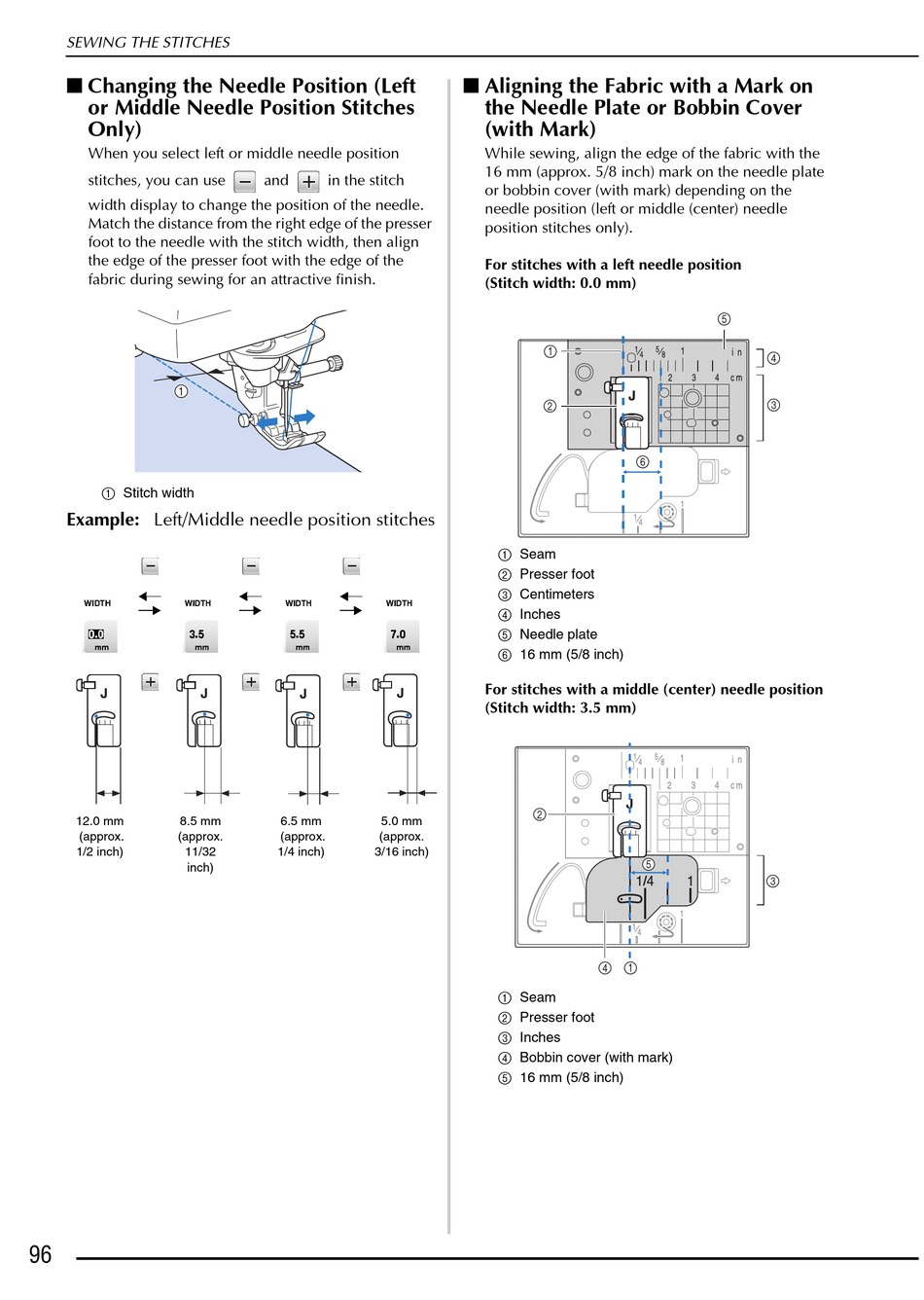

SEWING THE STITCHES
■ Changing the Needle Position (Left
or Middle Needle Position Stitches
Only)
When you select left or middle needle position
stitches, you can use
width display to change the position of the needle.
Match the distance from the right edge of the presser
foot to the needle with the stitch width, then align
the edge of the presser foot with the edge of the
fabric during sewing for an attractive finish.
a Stitch width
Example: Left/Middle needle position stitches
12.0 mm
8.5 mm
(approx.
(approx.
1/2 inch)
11/32
inch)
96
and
in the stitch
6.5 mm
5.0 mm
(approx.
(approx.
1/4 inch)
3/16 inch)
■ Aligning the Fabric with a Mark on
the Needle Plate or Bobbin Cover
(with Mark)
While sewing, align the edge of the fabric with the
16 mm (approx. 5/8 inch) mark on the needle plate
or bobbin cover (with mark) depending on the
needle position (left or middle (center) needle
position stitches only).
For stitches with a left needle position
(Stitch width: 0.0 mm)
a Seam
b Presser foot
c Centimeters
d Inches
e Needle plate
f 16 mm (5/8 inch)
For stitches with a middle (center) needle position
(Stitch width: 3.5 mm)
a Seam
b Presser foot
c Inches
d Bobbin cover (with mark)
e 16 mm (5/8 inch)
