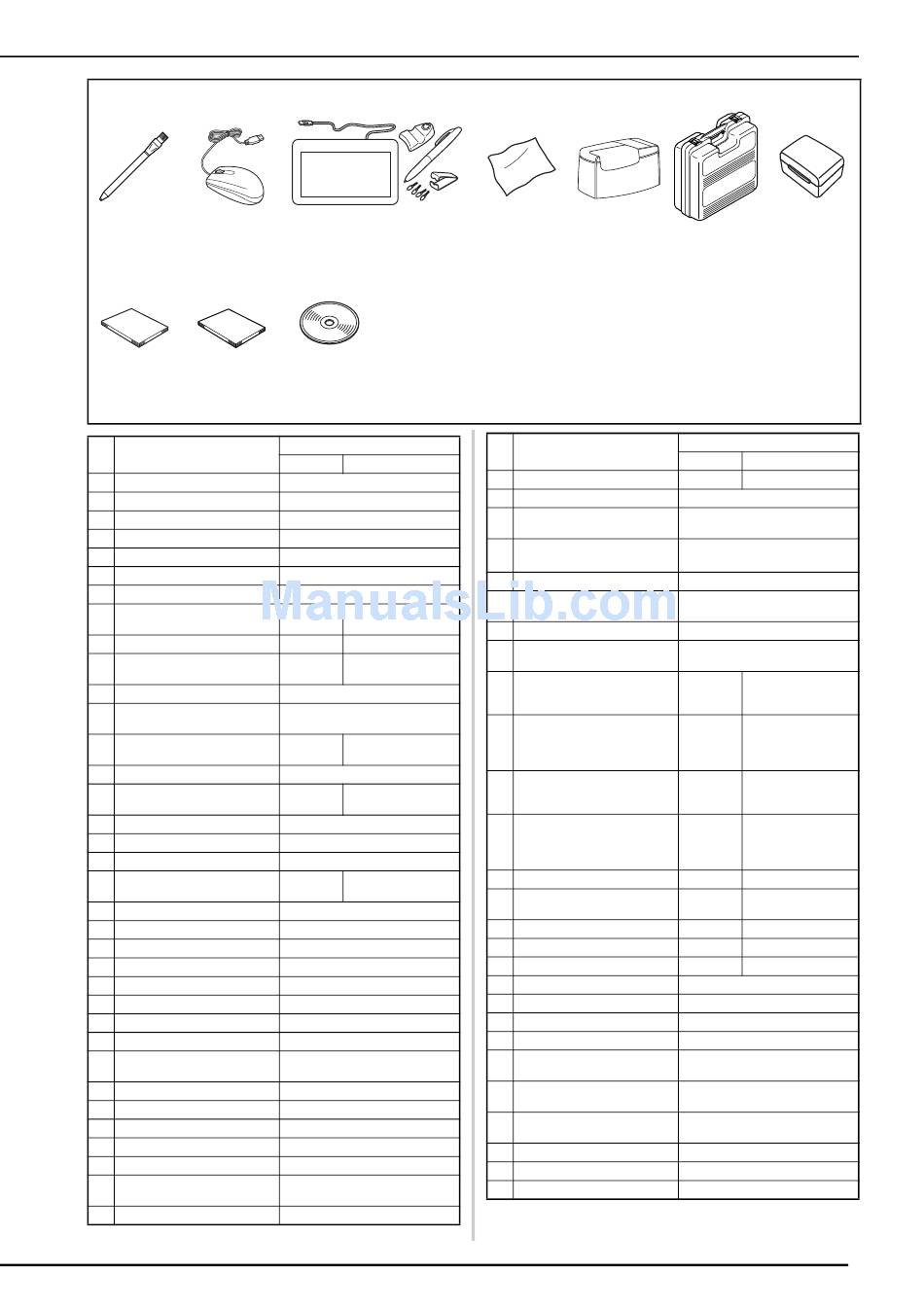

Brother Quattro 2 6700D Operation Manual Page 21

Embroidery and sewing machine.
Hide thumbs

Advertisement

Table of Contents
53
54
60
61
**In some countries or regions, this is not included in the enclosed accessories; however, it is available as an option.
No.
Part Name
1
Zigzag foot "J" (on machine)
2
Monogramming foot "N"
3 Overcasting foot "G"
4 Zipper foot "I"
5
Buttonhole foot "A"
6
Blind stitch foot "R"
7
Button fitting foot "M"
8 Walking foot
9 Side cutter foot
10 Straight stitch foot
11 Free motion quilting foot "C"
12 Free motion echo quilting
foot "E"
13 Free motion open toe
quilting foot "O"
14 Embroidery foot "W"
15 Vertical stitch alignment foot
"V"
16 Needle set
17 Twin needle
18 Ball point needle set
19 Bobbin × 10
(One is on machine.)
20 Seam ripper
21 Scissors
22 Cleaning brush
23 Eyelet punch
24 Screwdriver (small)
25 Screwdriver (large)
26 Disc-shaped screwdriver
27 Spool cap (small)
28 Spool cap (medium) × 2
(One is on machine.)
29 Spool cap (large)
30 Spool stand
31 Bobbin clip × 10
32 Spool felt
33 Spool net × 2
34 Embroidery needle plate
cover
35 Touch pen (stylus)
55
62
Part Code
Americas
Others
XC3021-051
X53840-351
XC3098-051
X59370-051
X57789-151
X56409-051
130489-001
SA140
F033N:
XC2214-002
SA177
F054: XC3879-102
SA167
F042N:
XC1973-052
XE0765-101
XE0766-001
SA187
F061: XE1097-001
XC8156-651
SA189
F063: XE5224-001
XE4962-001
XE4963-001
XD0705-051
SA156
SFB: XA5539-151
X54243-051
XC1807-121
X59476-051
135793-001
X55468-051
XC4237-021
XC1074-051
130013-154
X55260-153
130012-054
See page 21
XE3060-001
X57045-051
XA5523-050
XE5131-001
XA9940-051
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
**
56
57
No.
Part Name
36 Knee lifter
37 USB cable
38 Alternate bobbin case
(no color on the screw)
39 Bobbin case
(gray, for bobbin work)
40 Straight stitch needle plate
41 Cord guide bobbin cover
(with single hole)
42 Bobbin cover (with mark)
43 Foot controller
44 Embroidery frame set (small)
H 2 cm × W 6 cm
(H 1 inch × W 2-1/2 inches)
45 Embroidery frame set
(medium) H 10 cm × W 10
cm (H 4 inches × W 4
inches)
46 Embroidery frame set (quilt)
H 20 cm × W 20 cm
(H 8 inches × W 8 inches)
47 Embroidery frame set
(extra large)
H 30 cm × W 20 cm
(H 12 inches × W 8 inches)
48 Embroidery bobbin thread
49 Embroidery positioning
sticker sheets
50 Edge sewing sheet × 6
51 Stabilizer material
52 Grid sheet set
53 Chalk pencil
54 USB mouse
55 Pen tablet
56 LCD cleaning cloth
57 Soft cover
58 Embroidery unit carrying
case
59 Accessory case
60 Operation manual
61 Quick reference guide
62 My Custom Design CD
58
59
Part Code
Americas
Others
SA599
KL1: XE5902-001
XD0745-051
XC8167-551
XE8298-001
XE4908-301
XE8991-001
XF0750-001
XD0500-151 (EU area)
XC8028-051 (other area)
SA437
EF73: XC8479-152
SA438
EF74: XC8480-152
SA446
EF91: XE5068-101
SA447
EF92: XE5071-001
SA-EBT
XC6283-001
SAEPS2 EPS2: XF0763-001
SAESS1 ESS1: XE5094-001
SA519
BM3: XE0806-001
SA507
GS3: X81277-151
XE8568-001
XE5334-101
See page 23
XE4913-001
XE5111-001 (882-W04)
XE5163-001 (882-W05)
XE3791-001
XF0337-001 (882-W04)
XF0333-001 (882-W05)
This manual
XF0230-001
XF0186-001
