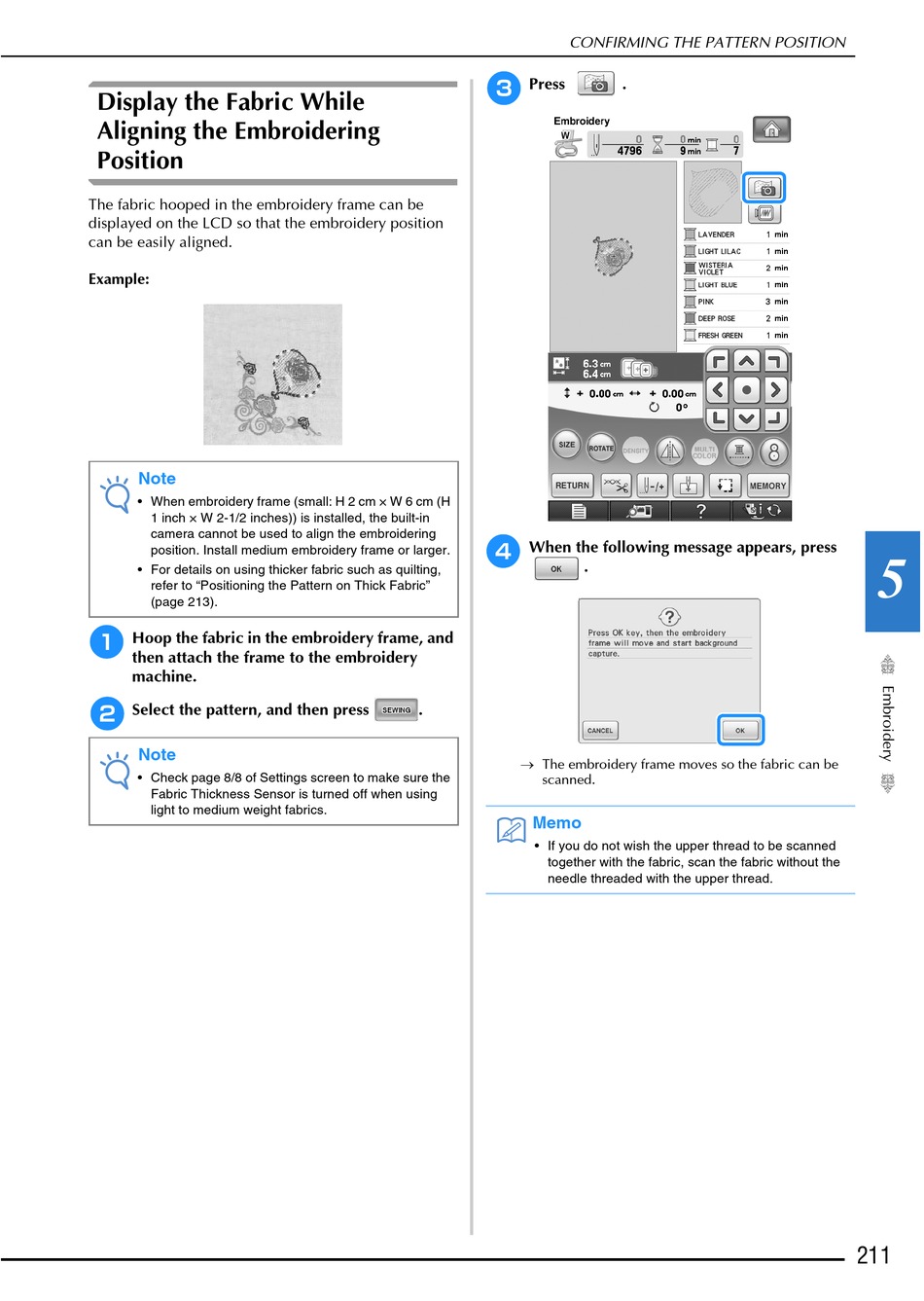

Display the Fabric While
Aligning the Embroidering
Position
The fabric hooped in the embroidery frame can be
displayed on the LCD so that the embroidery position
can be easily aligned.
Example:
Note
• When embroidery frame (small: H 2 cm × W 6 cm (H
1 inch × W 2-1/2 inches)) is installed, the built-in
camera cannot be used to align the embroidering
position. Install medium embroidery frame or larger.
• For details on using thicker fabric such as quilting,
refer to "Positioning the Pattern on Thick Fabric"
(page 213).
a
Hoop the fabric in the embroidery frame, and
then attach the frame to the embroidery
machine.
b
Select the pattern, and then press
Note
• Check page 8/8 of Settings screen to make sure the
Fabric Thickness Sensor is turned off when using
light to medium weight fabrics.
CONFIRMING THE PATTERN POSITION
c
Press
d
When the following message appears, press
.
.
→ The embroidery frame moves so the fabric can be
scanned.
Memo
• If you do not wish the upper thread to be scanned
together with the fabric, scan the fabric without the
needle threaded with the upper thread.
.
5
211
