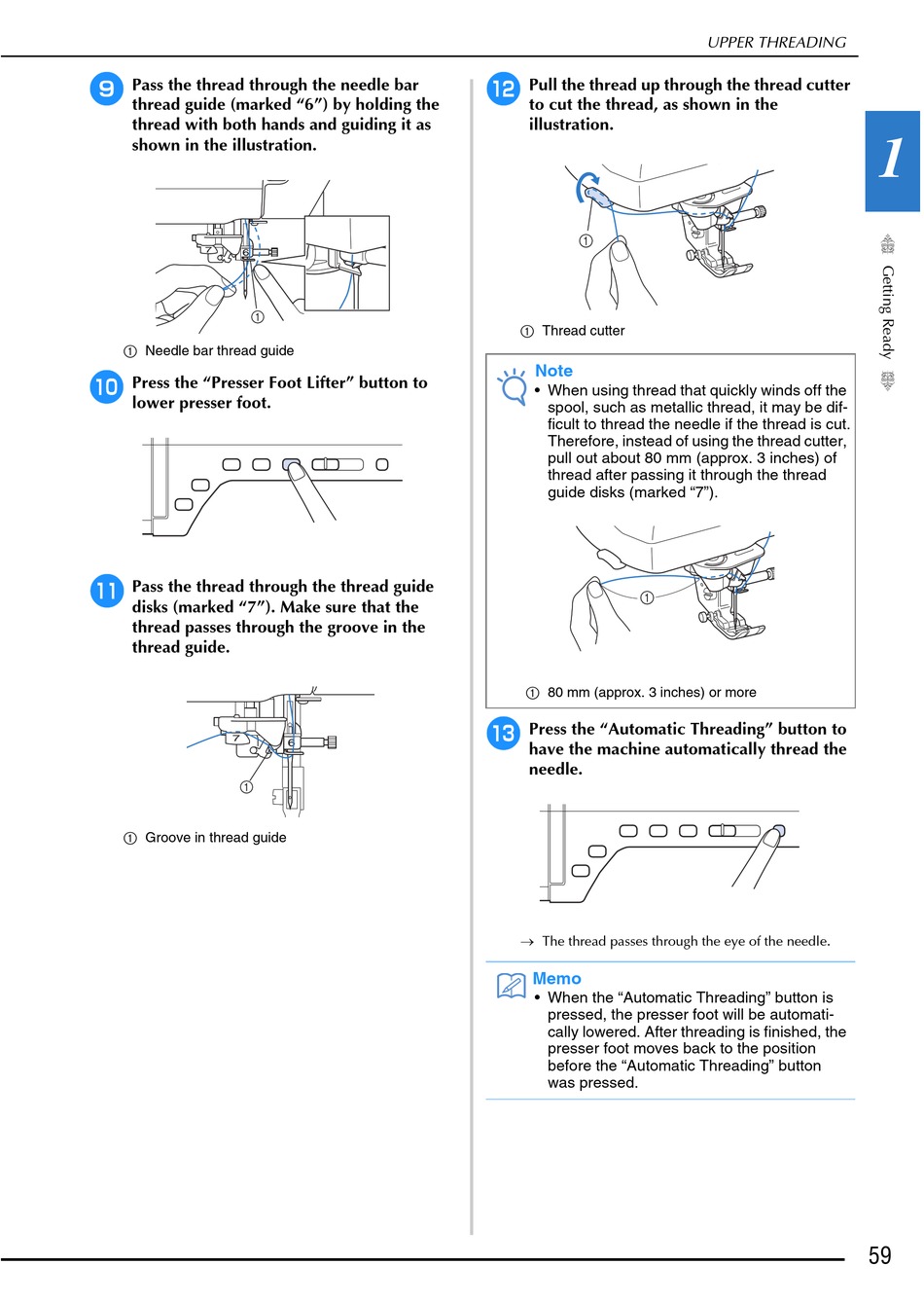

Pass the thread through the needle bar
thread guide (marked "6") by holding the
thread with both hands and guiding it as
shown in the illustration.
a Needle bar thread guide
j
Press the "Presser Foot Lifter" button to
lower presser foot.
k
Pass the thread through the thread guide
disks (marked "7"). Make sure that the
thread passes through the groove in the
thread guide.
a Groove in thread guide
l
Pull the thread up through the thread cutter
to cut the thread, as shown in the
illustration.
a Thread cutter
Note
• When using thread that quickly winds off the
spool, such as metallic thread, it may be dif-
ficult to thread the needle if the thread is cut.
Therefore, instead of using the thread cutter,
pull out about 80 mm (approx. 3 inches) of
thread after passing it through the thread
guide disks (marked "7").
a 80 mm (approx. 3 inches) or more
m
Press the "Automatic Threading" button to
have the machine automatically thread the
needle.
→ The thread passes through the eye of the needle.
Memo
• When the "Automatic Threading" button is
pressed, the presser foot will be automati-
cally lowered. After threading is finished, the
presser foot moves back to the position
before the "Automatic Threading" button
was pressed.
UPPER THREADING
1
59
