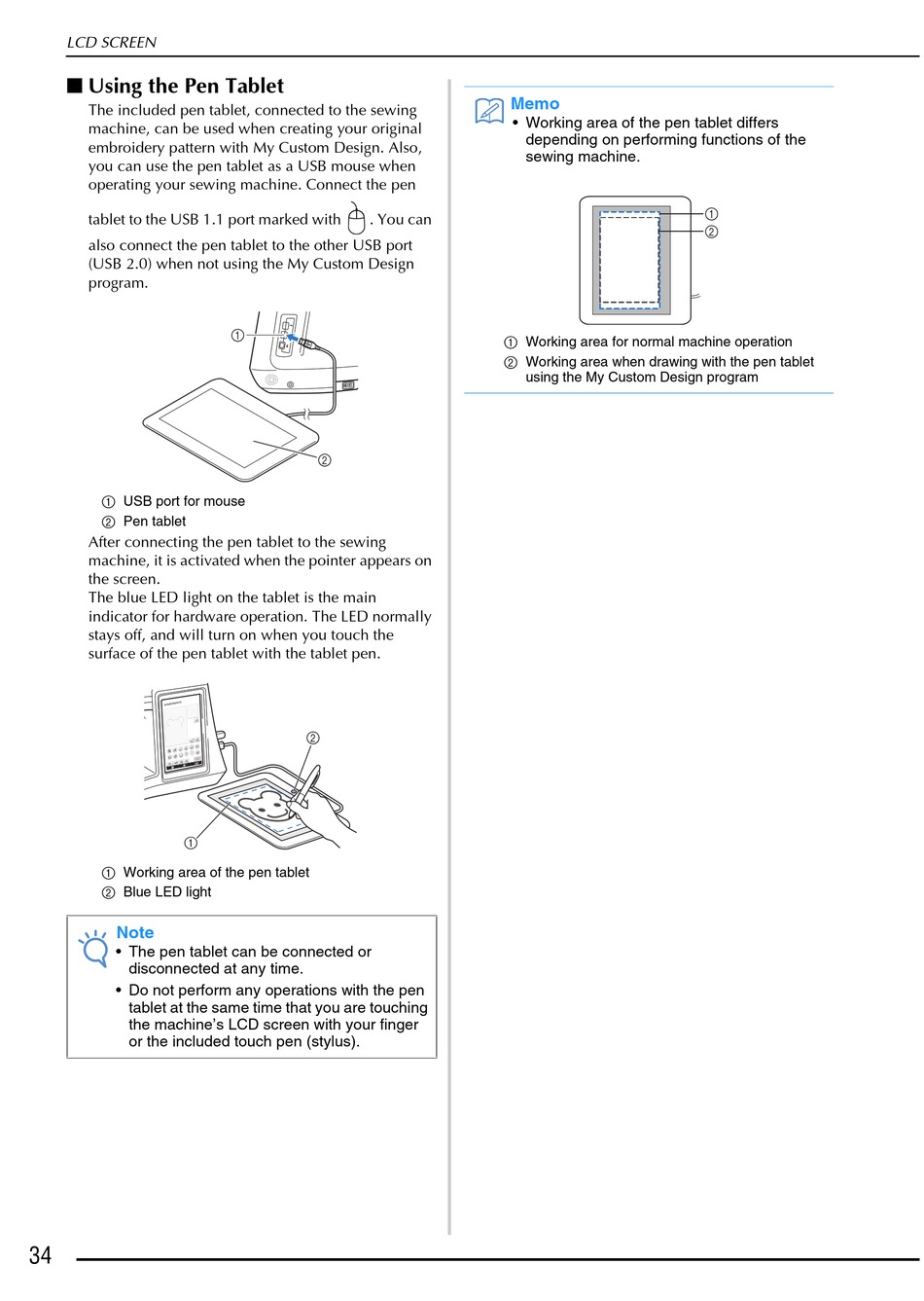

■ Using the Pen Tablet

The included pen tablet, connected to the sewing
machine, can be used when creating your original
embroidery pattern with My Custom Design. Also,
you can use the pen tablet as a USB mouse when
operating your sewing machine. Connect the pen
tablet to the USB 1.1 port marked with
also connect the pen tablet to the other USB port
(USB 2.0) when not using the My Custom Design
program.
a USB port for mouse
b Pen tablet
After connecting the pen tablet to the sewing
machine, it is activated when the pointer appears on
the screen.
The blue LED light on the tablet is the main
indicator for hardware operation. The LED normally
stays off, and will turn on when you touch the
surface of the pen tablet with the tablet pen.
a
a Working area of the pen tablet
b Blue LED light
Note
• The pen tablet can be connected or
disconnected at any time.
• Do not perform any operations with the pen
tablet at the same time that you are touching
the machine's LCD screen with your finger
or the included touch pen (stylus).
34
Memo
• Working area of the pen tablet differs
depending on performing functions of the
sewing machine.
. You can
a Working area for normal machine operation
b Working area when drawing with the pen tablet
using the My Custom Design program
