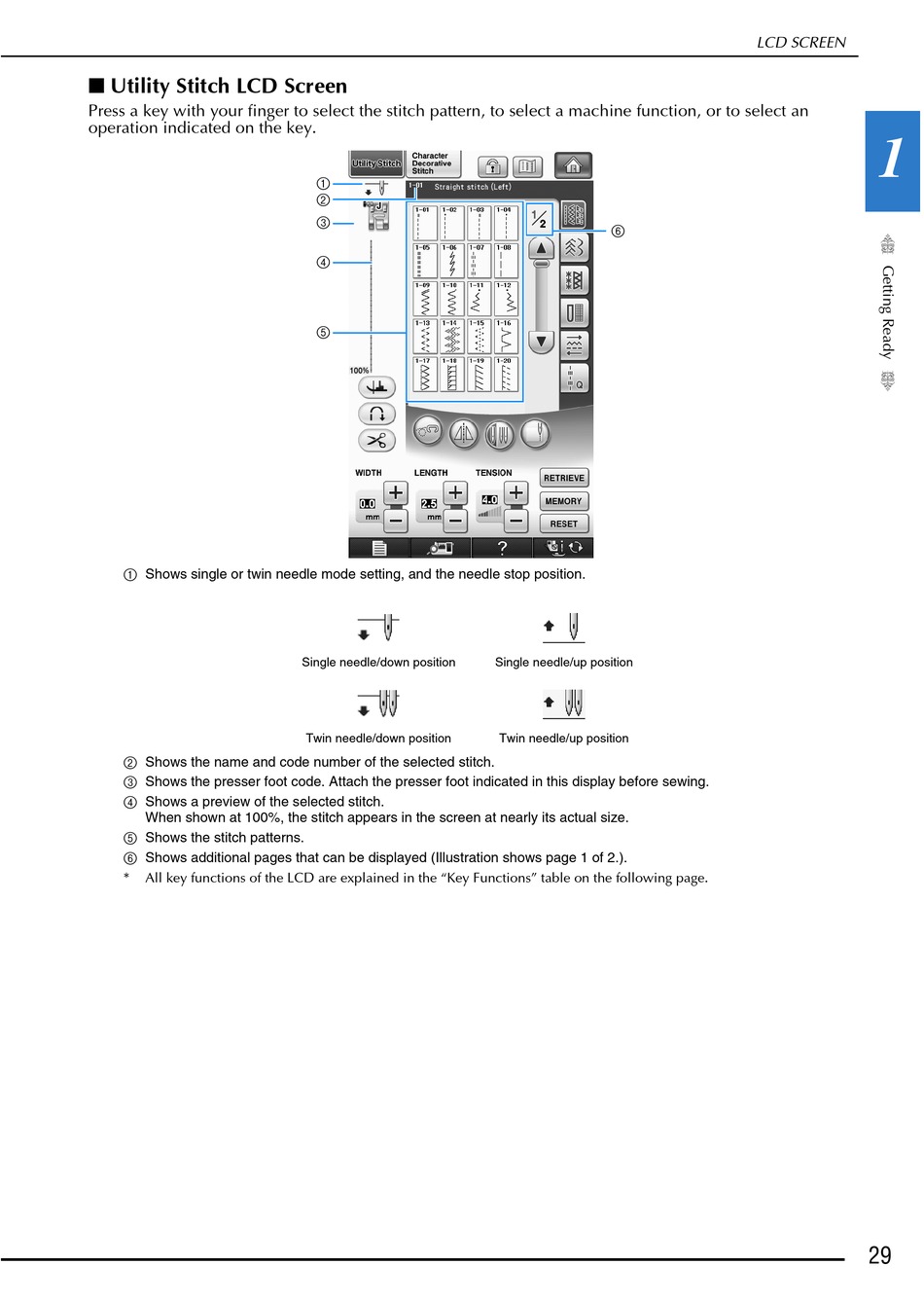

■ Utility Stitch LCD Screen

Press a key with your finger to select the stitch pattern, to select a machine function, or to select an
operation indicated on the key.
a Shows single or twin needle mode setting, and the needle stop position.
b Shows the name and code number of the selected stitch.
c Shows the presser foot code. Attach the presser foot indicated in this display before sewing.
d Shows a preview of the selected stitch.
When shown at 100%, the stitch appears in the screen at nearly its actual size.
e Shows the stitch patterns.
f Shows additional pages that can be displayed (Illustration shows page 1 of 2.).
*
All key functions of the LCD are explained in the "Key Functions" table on the following page.
a
b
c
d
e
Single needle/down position
Twin needle/down position
f
Single needle/up position
Twin needle/up position
LCD SCREEN
1
29
