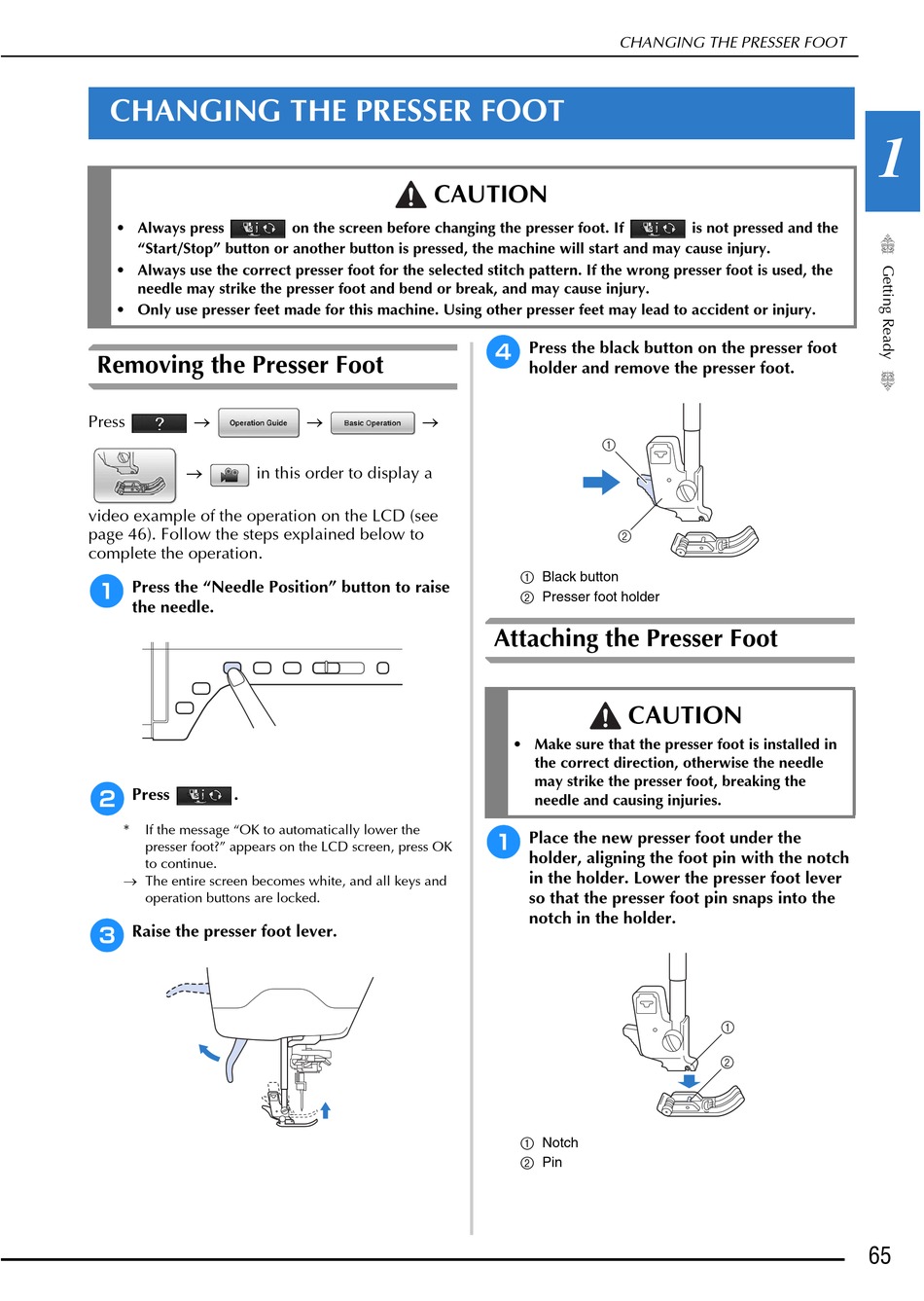

CHANGING THE PRESSER FOOT

• Always press
"Start/Stop" button or another button is pressed, the machine will start and may cause injury.
• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the
needle may strike the presser foot and bend or break, and may cause injury.
• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.

Removing the Presser Foot

Press
in this order to display a
video example of the operation on the LCD (see
page 46). Follow the steps explained below to
complete the operation.
a
Press the "Needle Position" button to raise
the needle.
b
Press
.
*
If the message "OK to automatically lower the
presser foot?" appears on the LCD screen, press OK
to continue.
→ The entire screen becomes white, and all keys and
operation buttons are locked.
c
Raise the presser foot lever.
CAUTION
on the screen before changing the presser foot. If
CHANGING THE PRESSER FOOT
d
Press the black button on the presser foot
holder and remove the presser foot.
a
b
a Black button
b Presser foot holder

Attaching the Presser Foot

CAUTION
• Make sure that the presser foot is installed in
the correct direction, otherwise the needle
may strike the presser foot, breaking the
needle and causing injuries.
a
Place the new presser foot under the
holder, aligning the foot pin with the notch
in the holder. Lower the presser foot lever
so that the presser foot pin snaps into the
notch in the holder.
a Notch
b Pin
is not pressed and the
1
65
