Installing the Processor Board Air Baffle

To install the processor board air baffle:
1. Orient the baffle so that the two release tabs are toward the rear of the chassis (Figure 9).
2. With the rear of the air baffle raised, insert the tab on the front of the air baffle into the slot in the
chassis. Holding the baffle at an angle of about 30° will allow the tab to engage correctly.
3. Holding the power receptacle and attached cords clear, rotate the rear end of the baffle down.
Adjust the position of the baffle until it moves into place and the two tabs are engaged. Do not
force it down.
4. Move the power receptacle into place and attach the receptacle using the screw.

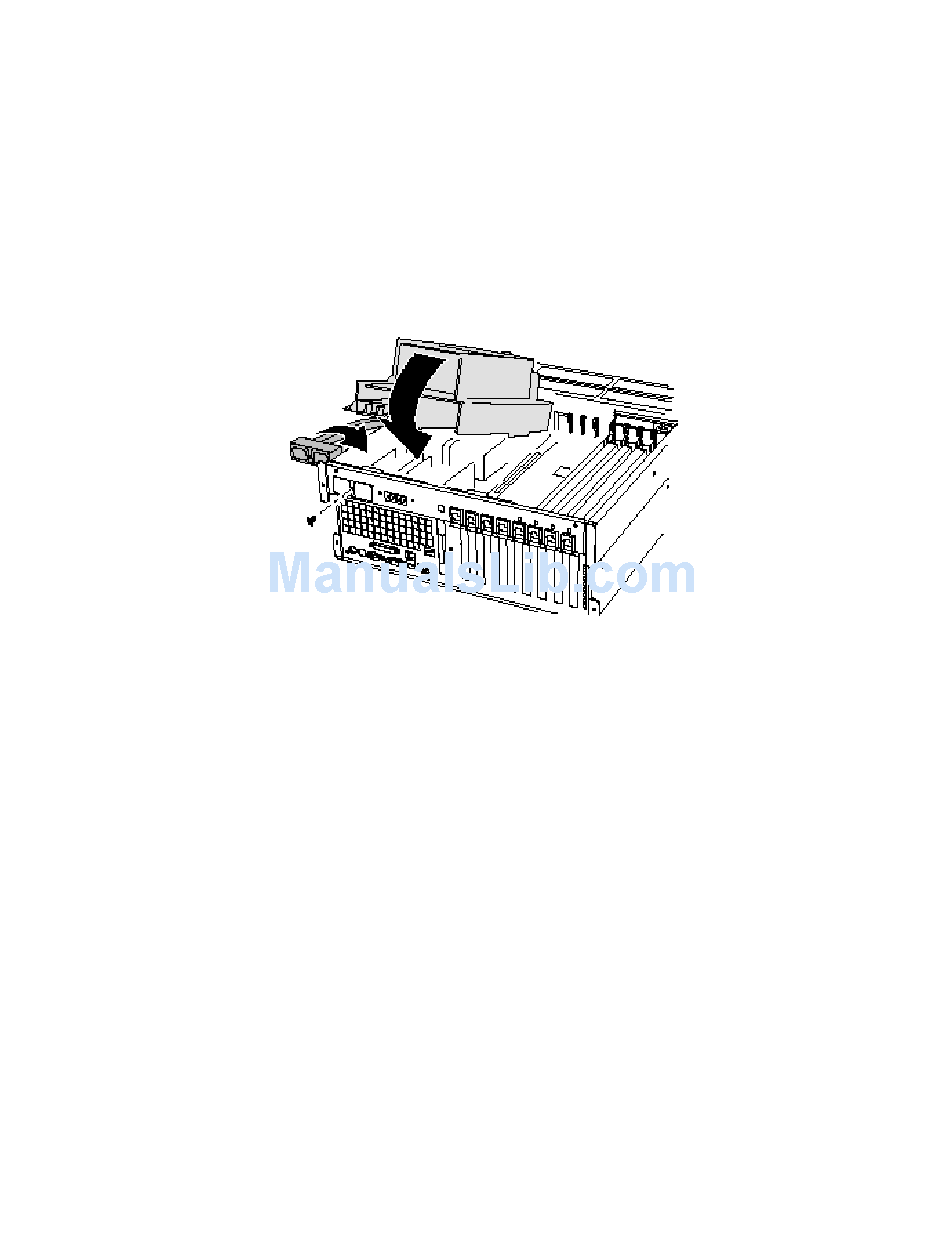

Figure 9. Installing the Processor Board Air Baffle
