6 | Installation
96 / 319
Pin Function
12 Variable GND
13 GND
14 Contact closure output FAULT_OUT*
15 Contact closure output READY_OUT
*Not implemented

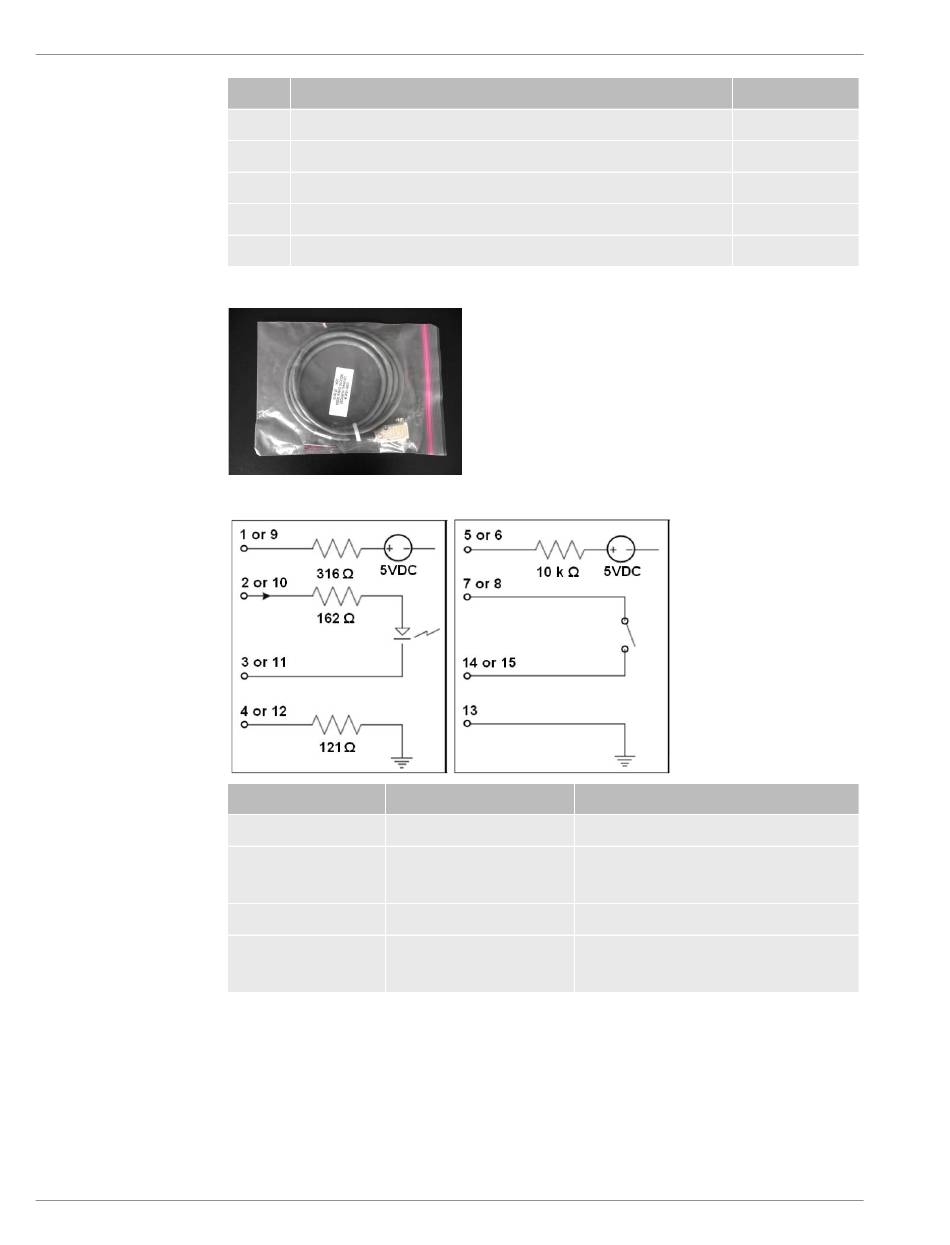

Remote start cable:
Remote start/cancel circuitry:
Purpose Pin Connection
Remote Start Pin 1 and pin 2
Pin 3 and pin 4
Remote Cancel Pin 9 and pin 10
Pin 11 and pin 12
If the REMOTE_CANCEL contacts are closed, Micro GC Fusion opens the
READY_OUT relay (pins 8 and 15) to signal the connected device that the run is
terminated.
Action
Connect together to activate circuit
No action when open Trigger
REMOTE_START when closed
Connect together to activate circuit
No action when open Trigger
REMOTE_CANCEL when closed
074-594-P1H Micro GC Fusion Operating Man-
INFICON
Color
Black/white
Red/white
Green/white
Blue/white
