074-594-P1H Micro GC Fusion Operating Manual

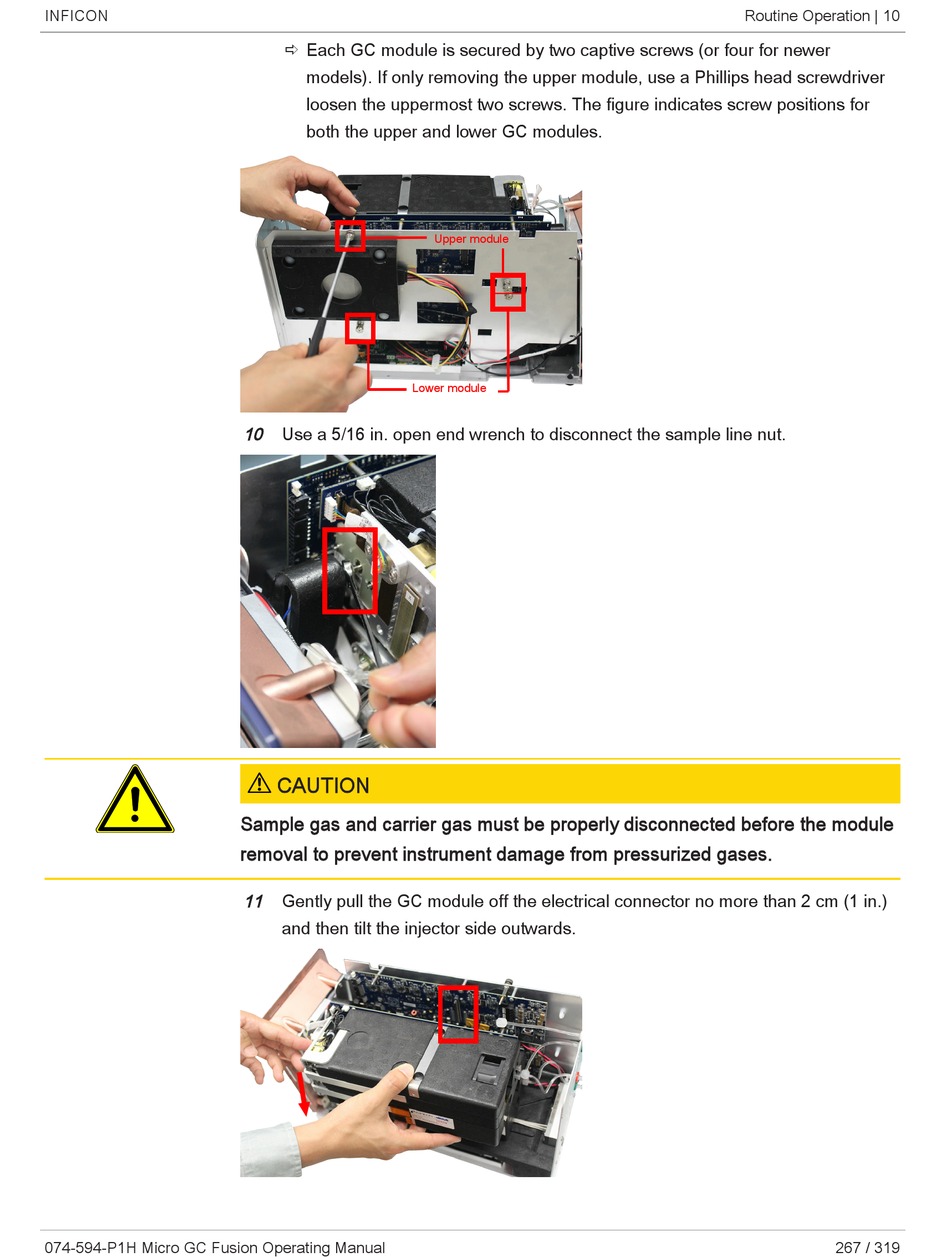

ð Each GC module is secured by two captive screws (or four for newer
models). If only removing the upper module, use a Phillips head screwdriver
loosen the uppermost two screws. The figure indicates screw positions for
both the upper and lower GC modules.
Lower module
10
Use a 5/16 in. open end wrench to disconnect the sample line nut.
CAUTION
Sample gas and carrier gas must be properly disconnected before the module
removal to prevent instrument damage from pressurized gases.
11
Gently pull the GC module off the electrical connector no more than 2 cm (1 in.)
and then tilt the injector side outwards.
Upper module
Routine Operation | 10
