9.10.10.8.2 Multi-Level Calibration
9.10.10.8.3 Multi-Level Calibration using a Valco Stream Selector
074-594-P1H Micro GC Fusion Operating Manual
Create several sequences corresponding to the calibration level using the method
described in Single Level Calibration [} 228].
Example - An auto-calibration sequence for level 3 would be named Level 3
Calibration and have a 3 typed in the Calibration Runs Level field.
1
Create a sequence called Auto-Calibration. See Add Sequence [} 170].
2

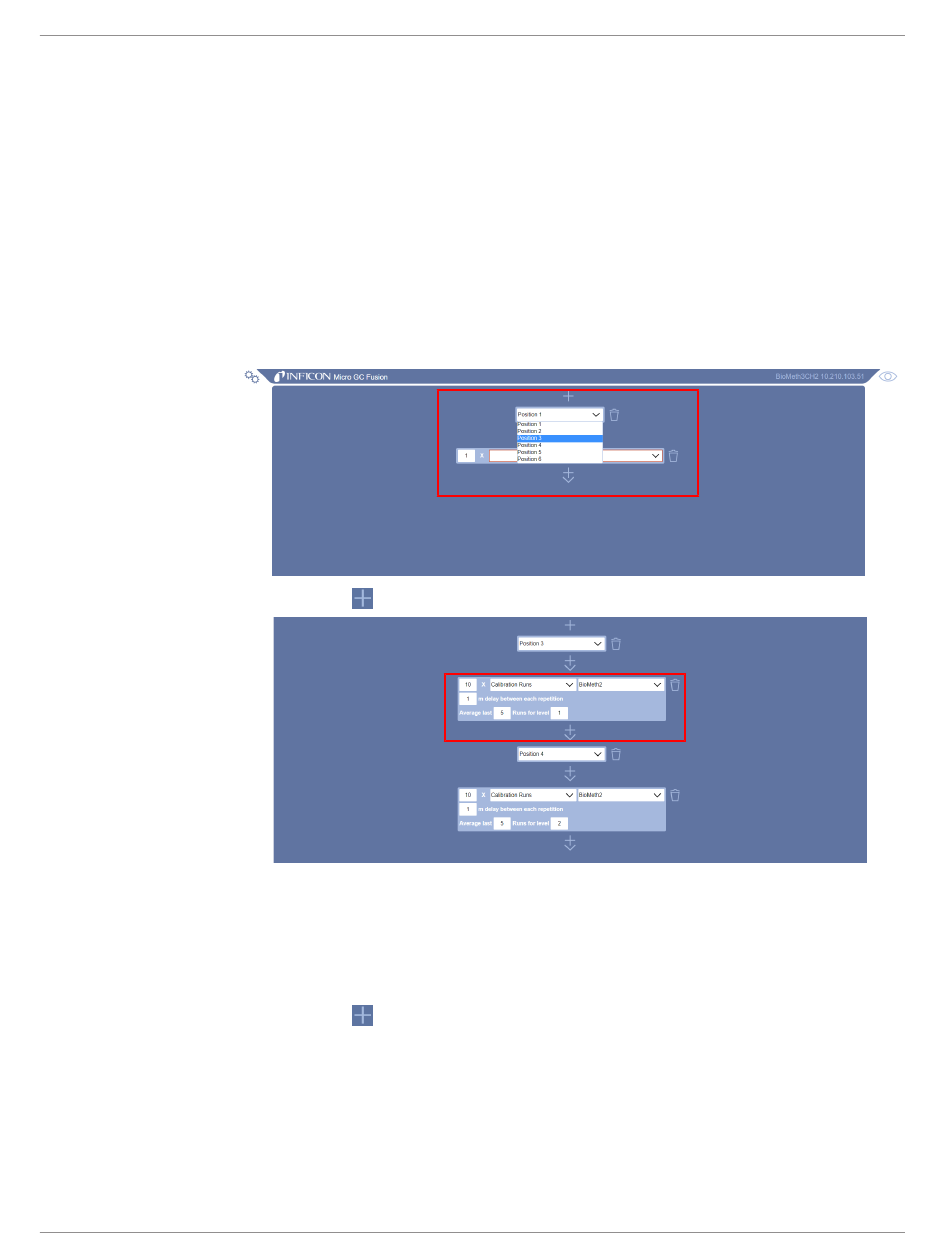

Add a Valco Stream Selector switching event and switch to the first calibration
gas.
3 Click the icon and select Calibration Runs.
4
Type the number of step repetitions and the method. If desired, add a delay
between each repetition.
5
Type the number of runs to use while averaging the area.
6
Type 1 for a level 1 calibration.
7 icon and select Add Valve.
Click the
8
Use the valve menu to select the level 2 calibration gas.
9 Select Calibration Runs.
