Inficon Micro GC Fusion 2-Module Operating Manual page 27

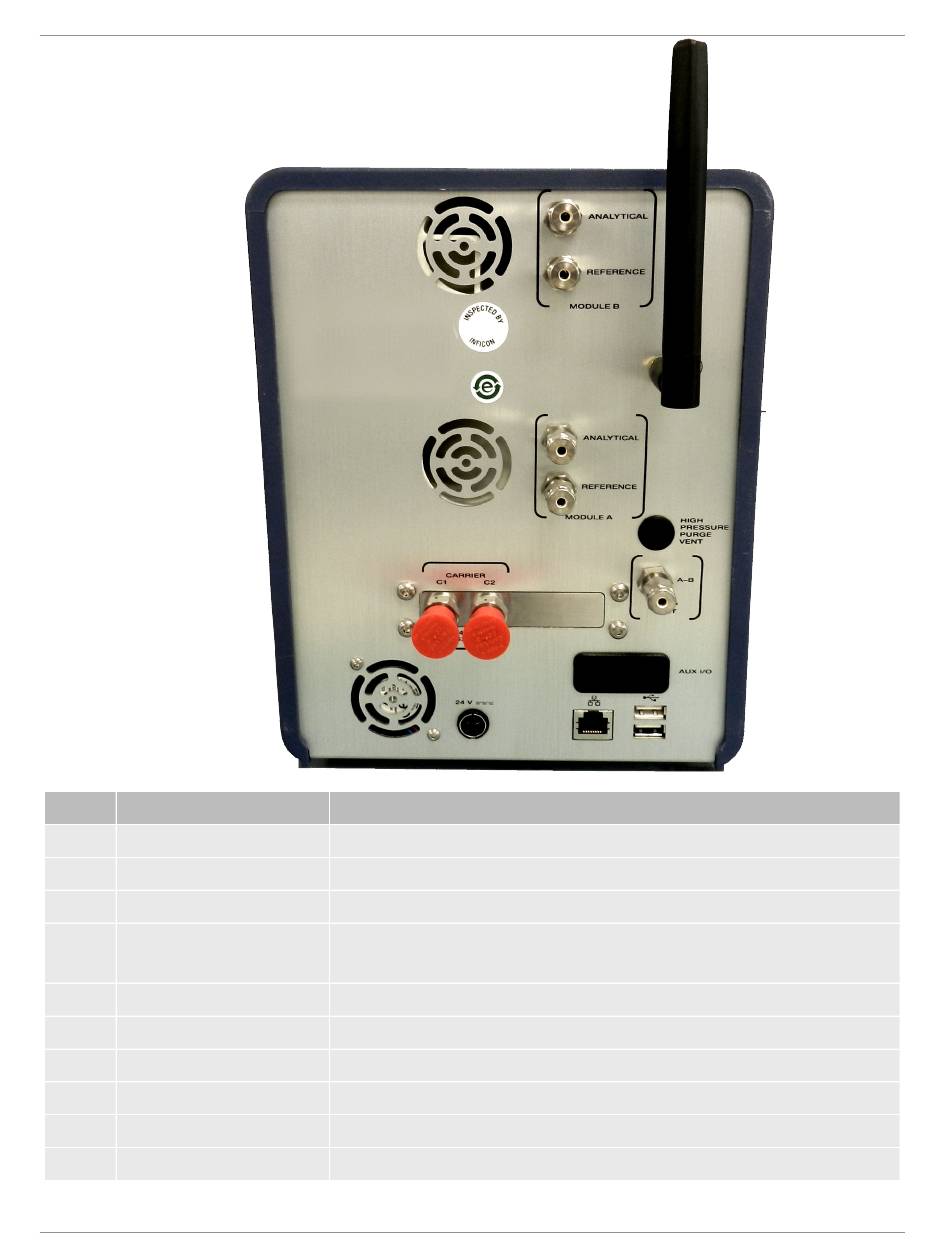

INFICON
Number Label
1 ANALYTICAL
2 REFERENCE
3 Wi-Fi Antenna
4 HIGH PRESSURE
PURGE VENT
5 CARRIER C1 and C2
6 PUMP
7 AUX I/O
8 24V
9 RJ-45 LAN connector
10 USB connectors
074-594-P1H Micro GC Fusion Operating Manual
1
2
5
8
Description
Vents for the analytical column(s) with 1/8 in. Swagelok connectors
Vents for the reference columns(s) with 1/8 in. Swagelok connectors
Boosts wireless signal strength and improves connectivity
Vent for the Integrated Sample Conditioner (if configured)
Carrier gas connections with 1/8 in. Swagelok connectors
Vent for the pump
The AUX I/O can be configured to remotely start or cancel sample runs
24 V (dc) input from the external V (ac) V (dc) power adaptor
Wired LAN connection
Two USB interfaces are provided
3
4
6
7
9 10
