6.12 The AUX I/O Connector

074-594-P1H Micro GC Fusion Operating Manual

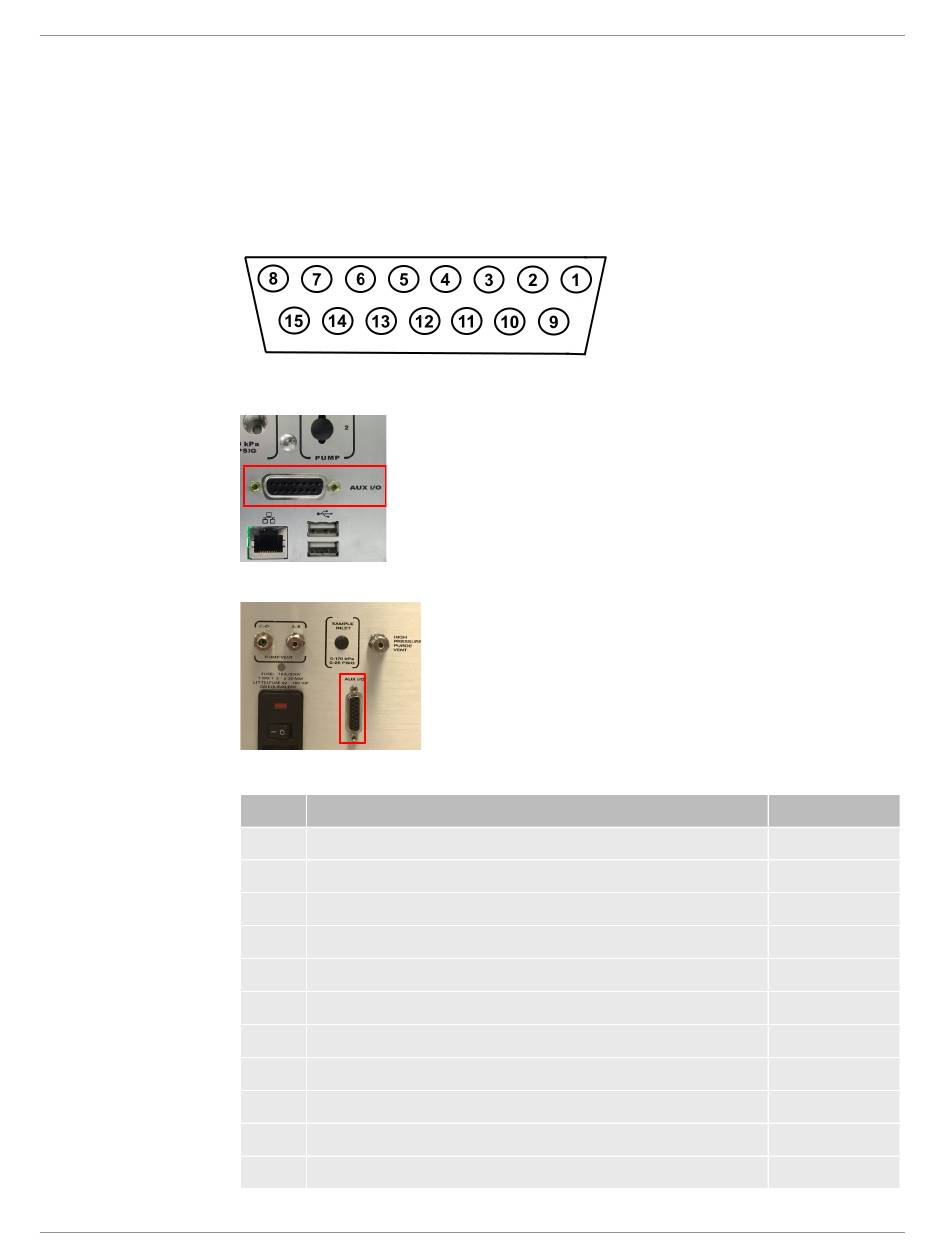

For some applications, an external triggering device may be required for sampling.
This can be accomplished by connecting an external triggering device to the Micro GC
Fusion AUX I/O port via a Remote Start Cable (PN G2801-60618). This cable has a
15 pin connector at one end. The other end can be fitted with a desired connector
type.
2-Module chassis:
4-Module chassis:
The AUX I/O connector pin outputs are listed in the table below.
Pin Function
1 Provides 5 mA remote input
2 REMOTE_START input
3 REMOTE_START input
4 Variable GND
5 Provides "5V pull up" for logic command
6 Provides "5V pull up" for logic command
7 Contact closure output FAULT_OUT*
8 Contact closure output READY_OUT
9 Provides 5 mA for remote input
10 REMOTE_CANCEL input
11 REMOTE_CANCEL input
Installation | 6
Color
Black
White
Red
Green
Orange
Blue
White/black
Red/black
Green/black
Orange/black
Blue/black
