INFICON
074-594-P1H Micro GC Fusion Operating Manual
13

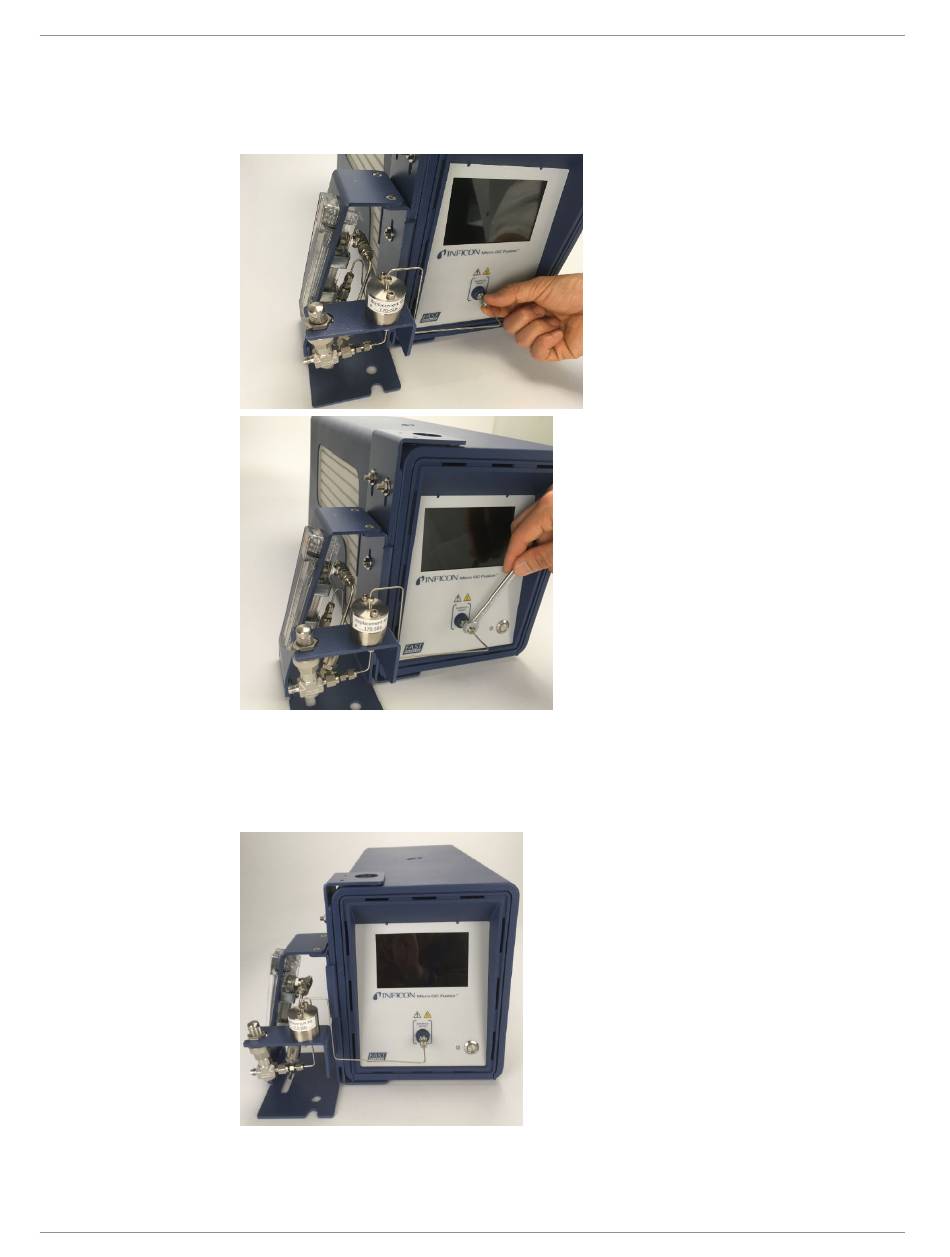

Insert the 1/16 in. sample tubing with the Swagelok fittings onto the instrument
sample inlet. Tighten 1/2 turn past finger-tight using the 5/16 in. wrench.
14
The pressure reducer and gas-liquid separator installation is complete.
Reconnect the power cable, the Ethernet cable and the carrier gas lines.
Installation | 6
119 / 319
