6 | Installation
126 / 319
12

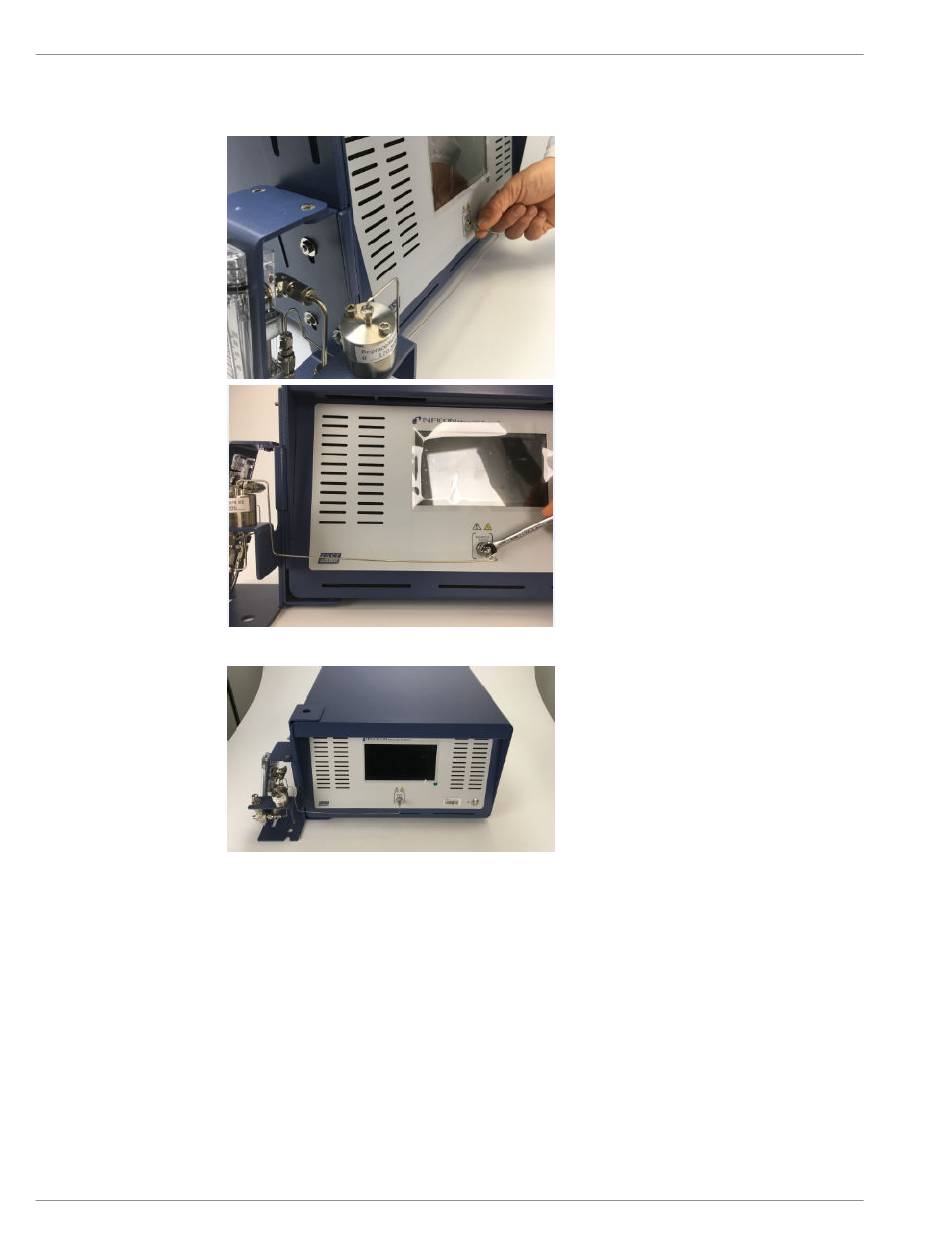

Insert the 1/16 in. sample tubing with the Swagelok fittings onto the instrument
sample inlet. Tighten 1/2 turn past finger-tight using the 5/16 in. wrench.
13
The pressure reducer and gas-liquid separator installation is complete.
14
Reconnect the power cable, the Ethernet cable and the carrier gas lines.
074-594-P1H Micro GC Fusion Operating Man-
INFICON
ual
