5 | Product Overview

5.13 Micro GC Fusion and GC Module Part Numbers

5.13.1 2-Module Micro GC Fusion Part Number

5.13.2 4-Module Micro GC Fusion Part Number
54 / 319

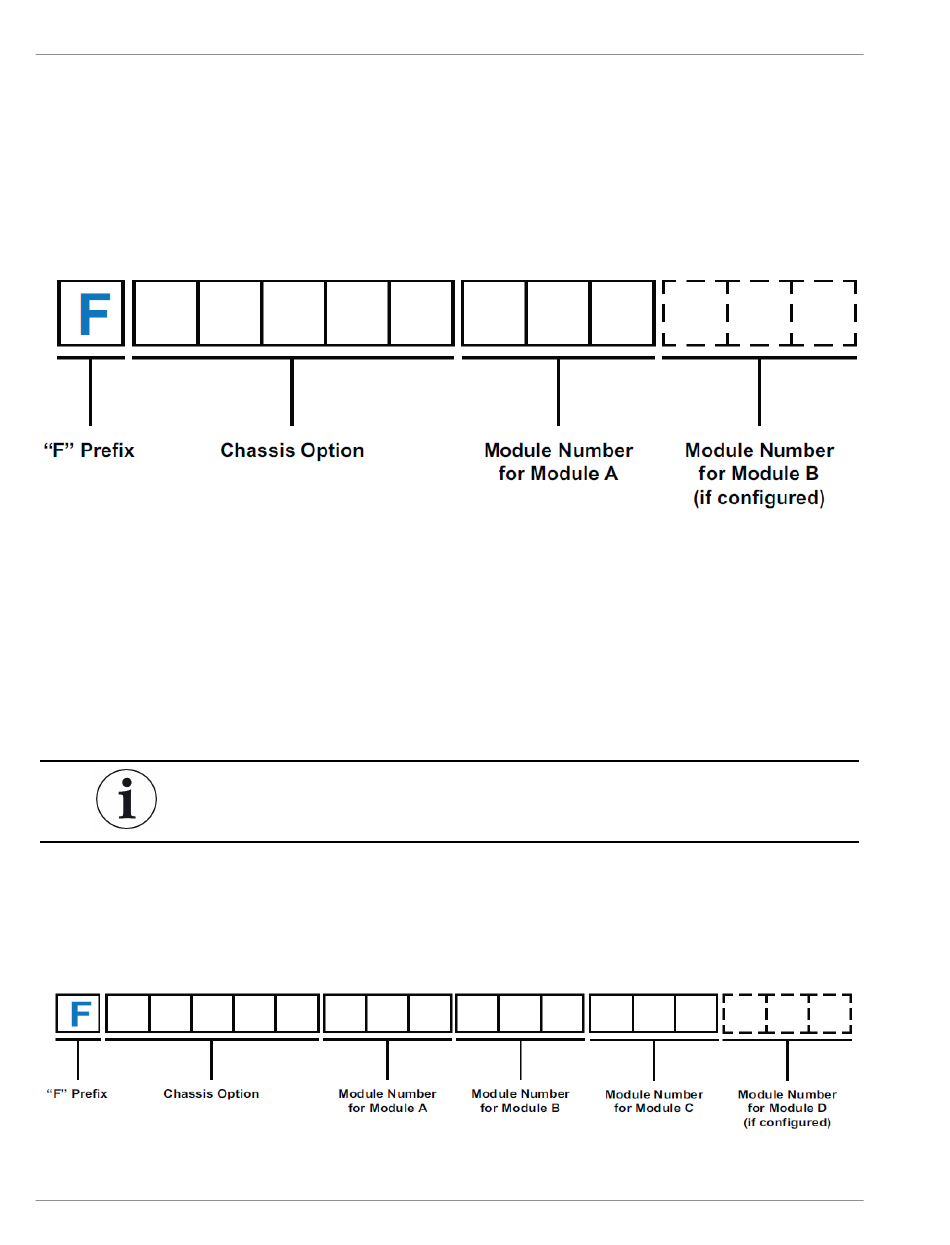

A 2-module Micro GC Fusion can be configured with one or two GC modules. The
figure below shows how a Micro GC part number is constructed.
• "F" prefix: a fixed prefix - this is the same for every instrument
• Chassis Option: a five digit number that identifies sample inlet, carrier gas
connection, number of GC modules, Integrated Sample Conditioner, AUX I/O,
power cord and factory checkout gas type
• Number for Module A: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
• Number for Module B: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
At least one module must be specified for a system. The module (part)
number for Module B is only specified when Module B is configured.
A 4-module Micro GC Fusion can be configured with three or four GC modules. The
figure below shows how a Micro GC part number is constructed.
• "F" prefix: a fixed prefix - this is the same for every instrument
