5.13.3 GC Module Part Number

074-594-P1H Micro GC Fusion Operating Manual
• Chassis Option: a five digit number that identifies sample inlet, carrier gas
connection, number of GC modules, Integrated Sample Conditioner, AUX I/O,
power cord and factory checkout gas type
• Number for Module A: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
• Number for Module B: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
• Number for Module C: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
• Number for Module D: a three digit number that specifies injector type, column
type and length, detector type, and venting connector type
At least three modules must be specified for a system. The module (part)
number for Module D is only specified when Module D is configured.

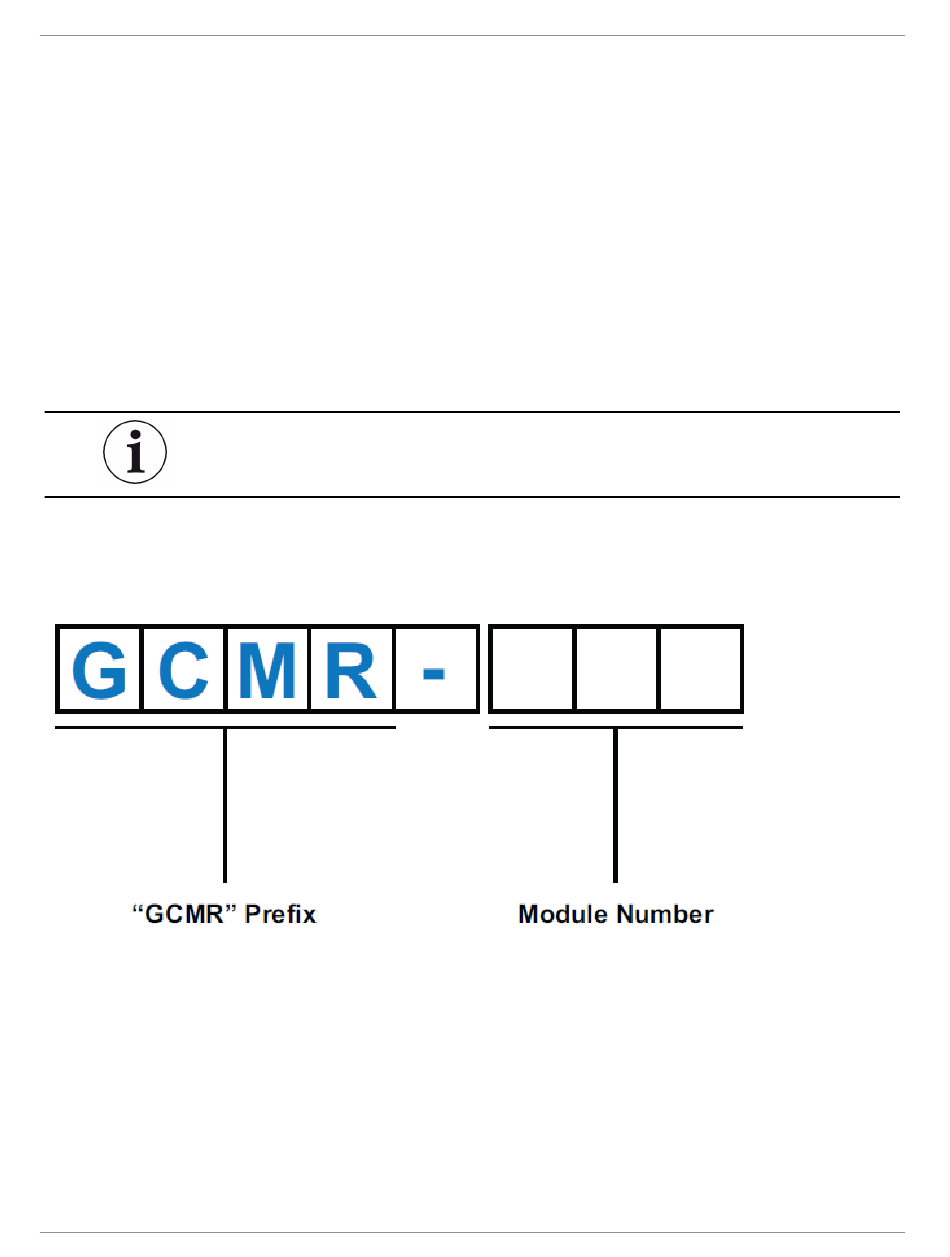

The figure below shows how a GC module replacement part number is constructed.
• "GCMR" Prefix: a fixed prefix that identifies a GC module replacement
• Module Number: a three digit number that specifies injector type, column type and
length, detector type, and venting connector type
