6 | Installation
132 / 319
9

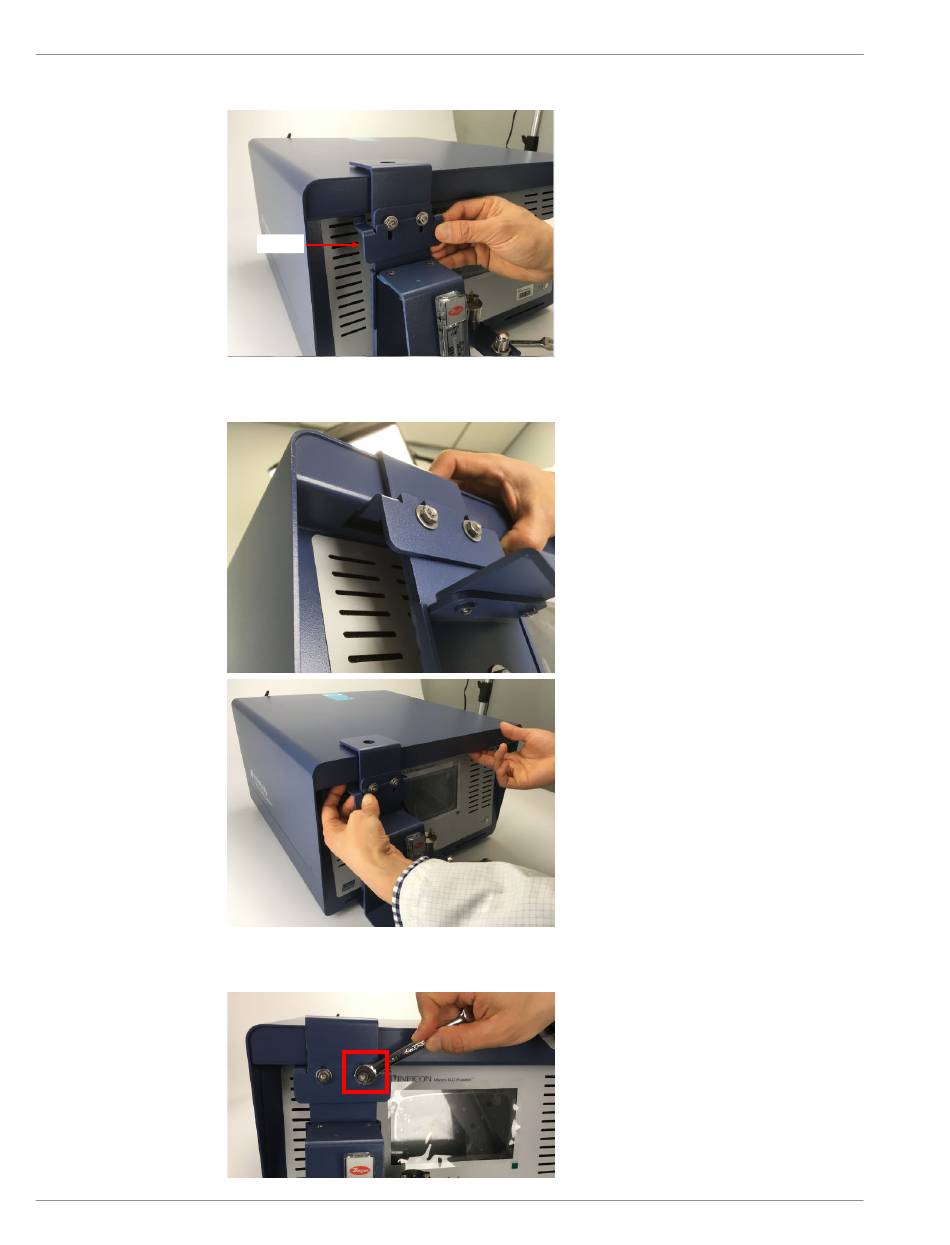

Slide in bracket E.
Bracket E
10
Fit the two inserts of bracket E into the air vent. Push or pull the front cover as
required to align it into the air vent opening.
11
Tighten the two nuts using a 3/8 in. wrench to ensure that bracket E does not fall
off.
074-594-P1H Micro GC Fusion Operating Man-
INFICON
ual
