INFICON
074-594-P1H Micro GC Fusion Operating Manual
8

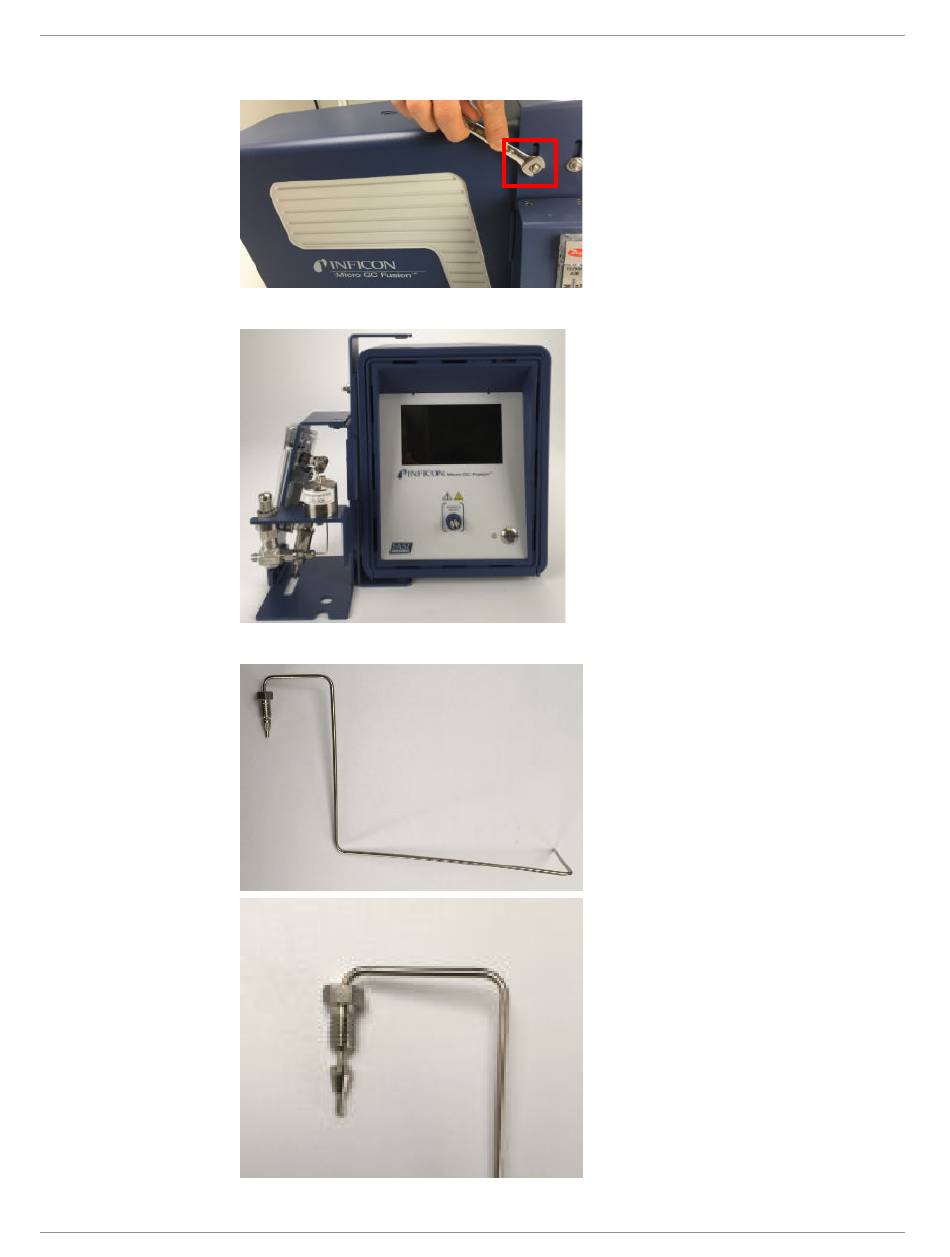

Adjust the nut position to remove the gap between the mounting bracket and the
chassis top.
9
Tighten all nuts with a 3/8 in. wrench to fix the bracket on the instrument chassis.
10
Put the Valco ferrule (PN 059-0335) and the nut (PN 059-0336) on the inlet tube.
Installation | 6
117 / 319
