Inficon Micro GC Fusion 2-Module Operating Manual page 105

INFICON
074-594-P1H Micro GC Fusion Operating Manual
14

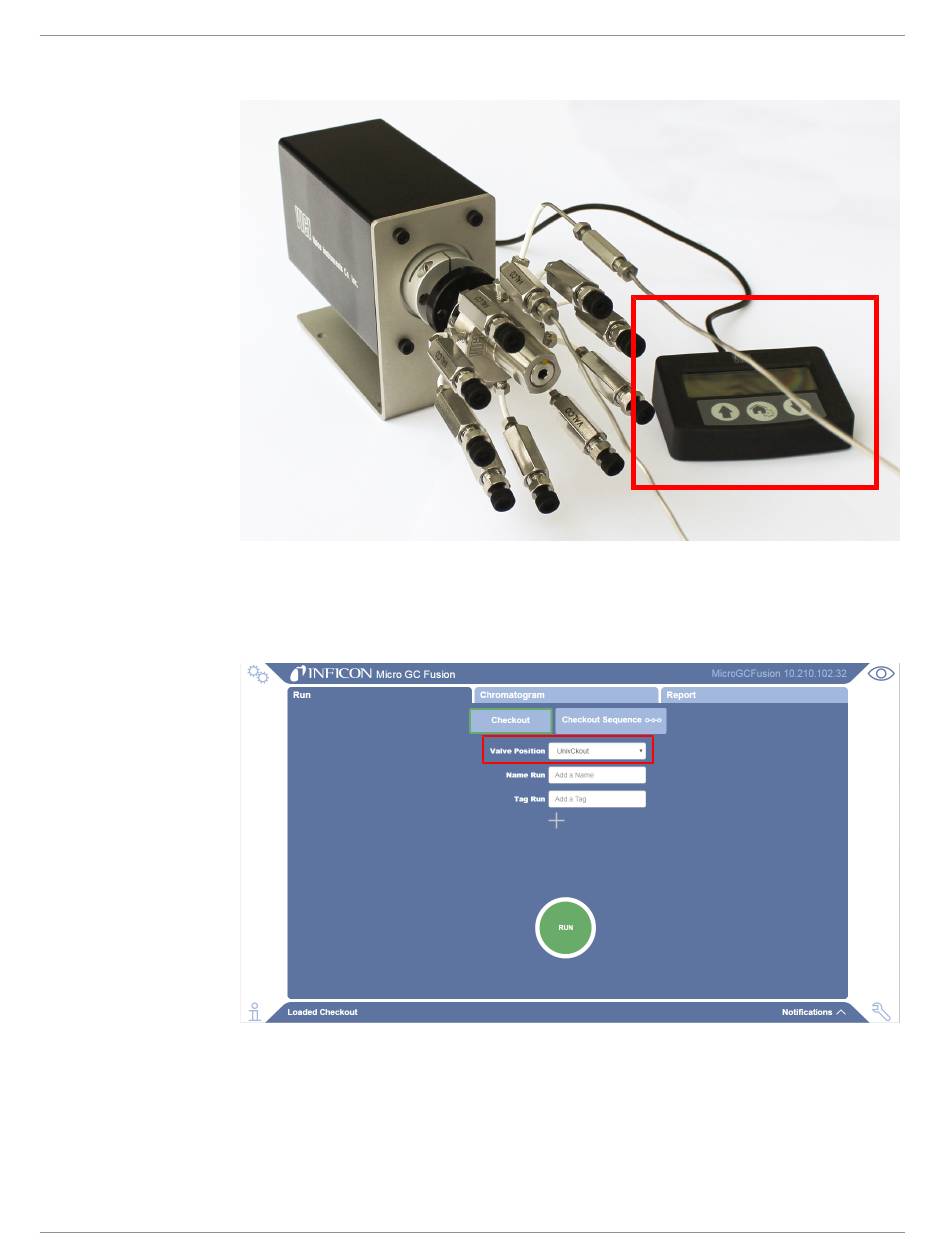

Connect the Manual Controller to the back of the Valco stream selector to
manually control the internal actuator.
15
To validate that the Valco stream selector was installed successfully, open the
Micro GC Fusion Main Page on any supported web browser or wireless device.
The Valve Position quick select menu will appear, enabling the user to select a
valve position.
16
For instructions on Valco stream selector configuration, see Valco Stream
Selector Operation [} 237].
Installation | 6
105 / 319
