INFICON

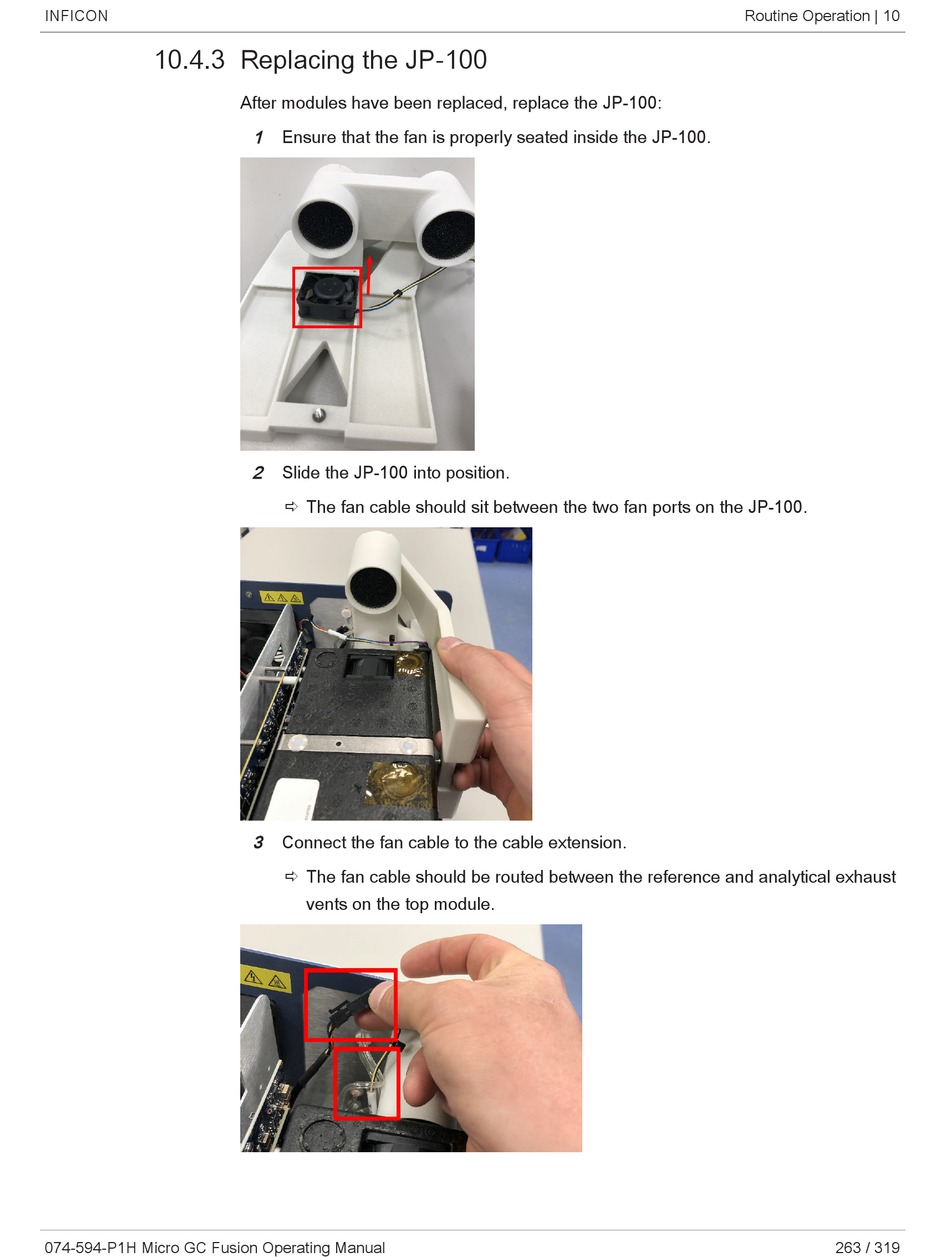

10.4.3 Replacing the JP-100
074-594-P1H Micro GC Fusion Operating Manual
After modules have been replaced, replace the JP-100:
1
Ensure that the fan is properly seated inside the JP-100.
2
Slide the JP-100 into position.
ð The fan cable should sit between the two fan ports on the JP-100.
3
Connect the fan cable to the cable extension.
ð The fan cable should be routed between the reference and analytical exhaust
vents on the top module.
Routine Operation | 10
263 / 319
