Inficon Micro GC Fusion 2-Module Operating Manual page 261

INFICON
074-594-P1H Micro GC Fusion Operating Manual
6

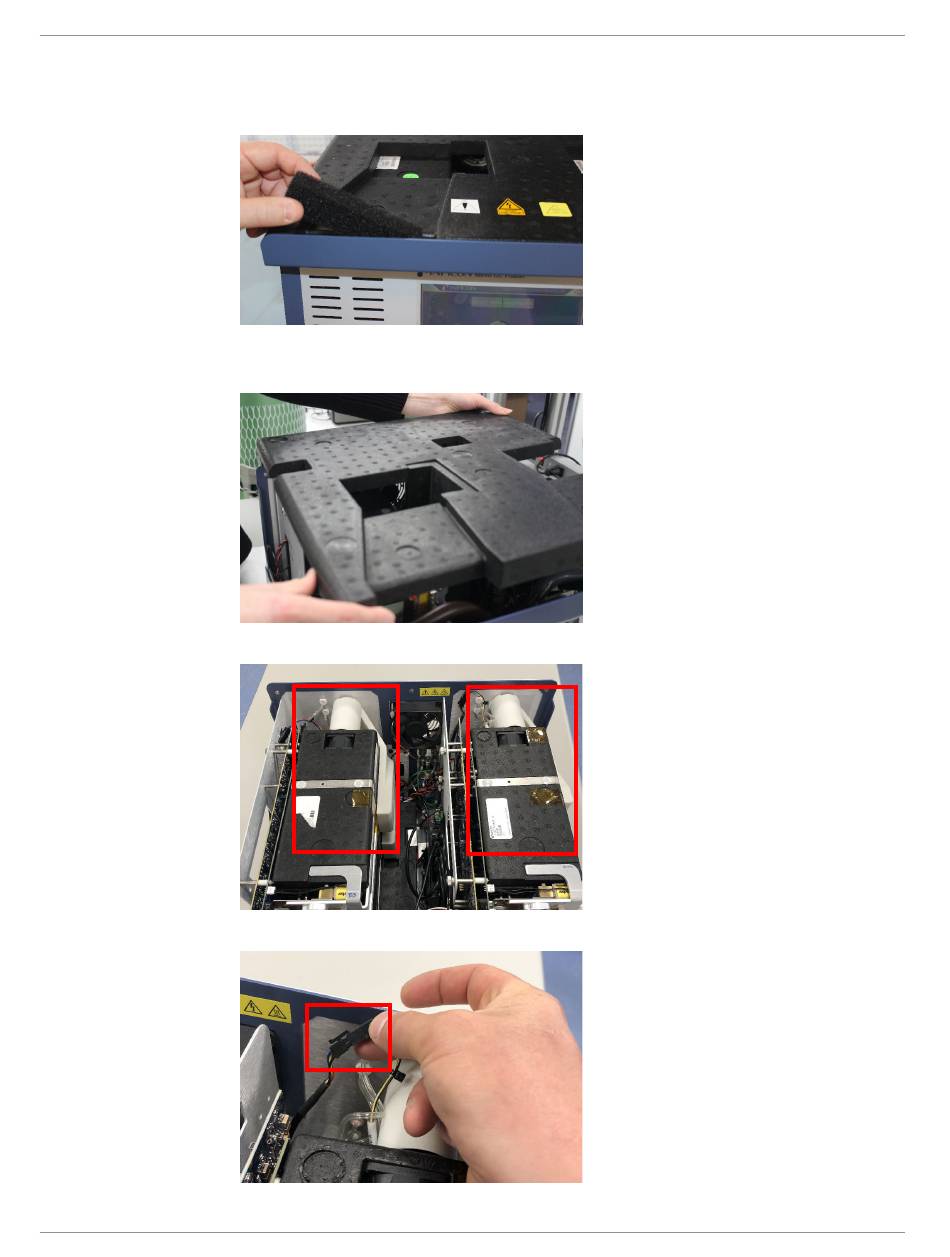

Remove the two small air filters on the top at the front of the unit.
7
Remove the top foam by grasping one front corner and the opposite back corner,
and pulling straight up.
8
Remove the foam by the right side of each module by pulling it straight up out of
the unit.
9
The 4-module Micro GC Fusion contains two JP-100 units.
10
Disconnect the fan cable from the cable extension.
Routine Operation | 10
261 / 319
