6 | Installation
130 / 319
5

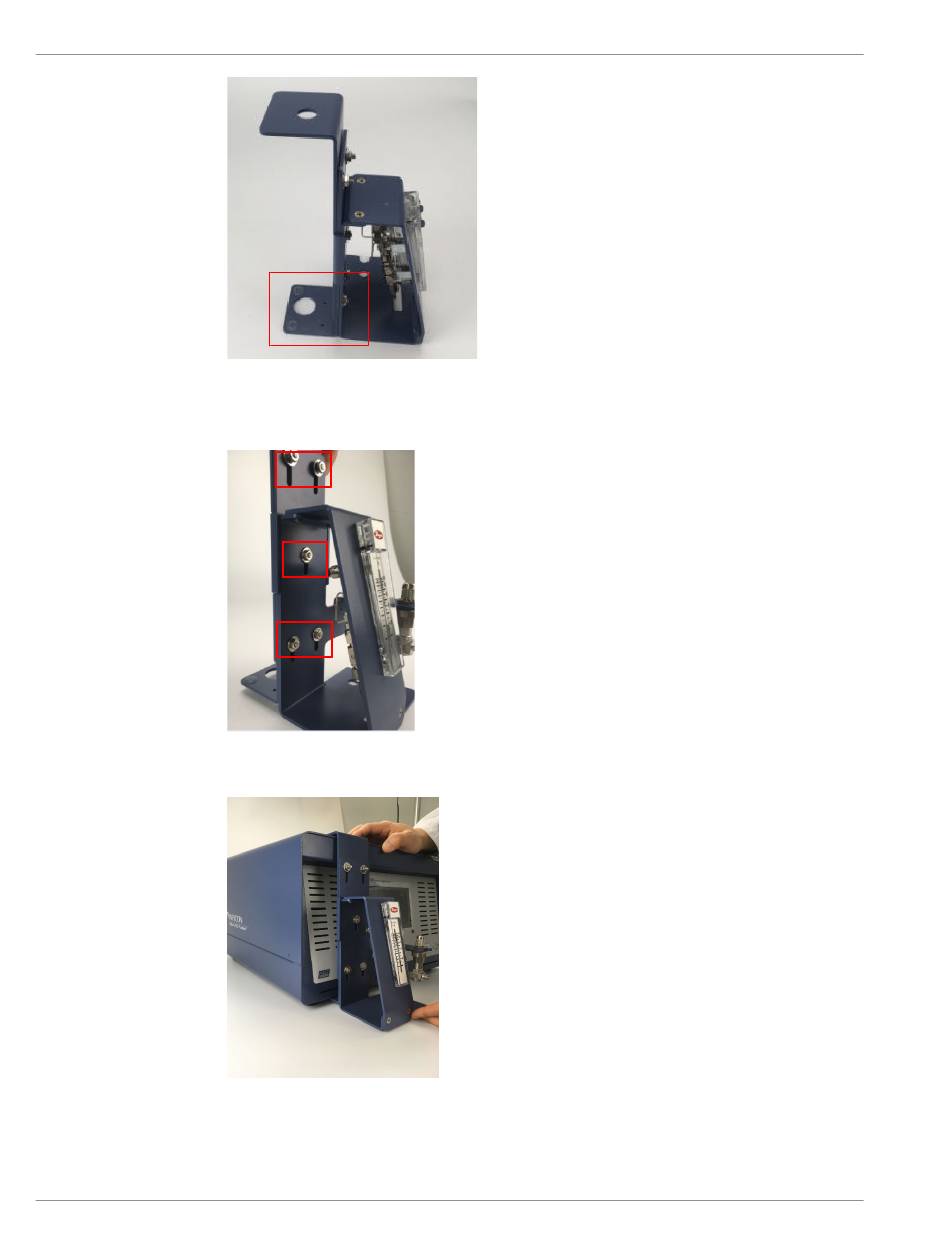

Set the five nuts on the mounting bracket to the positions shown. If the nut
positions need adjustment, relax the nuts, adjust the mounting bracket and re-
tighten the nuts using a 3/8 in. wrench.
6
Clamp the mounting bracket on the instrument front, with the mounting bracket
bottom to the right side of the instrument left front foot.
074-594-P1H Micro GC Fusion Operating Man-
INFICON
ual
