Running A Method Using A Valco Stream Selector; Running A Sequence Using A Valco Stream Selector - Inficon Micro GC Fusion 2-Module Operating Manual

INFICON

9.12.2 Running a Method Using a Valco Stream Selector

9.12.3 Running a Sequence Using a Valco Stream Selector

074-594-P1H Micro GC Fusion Operating Manual

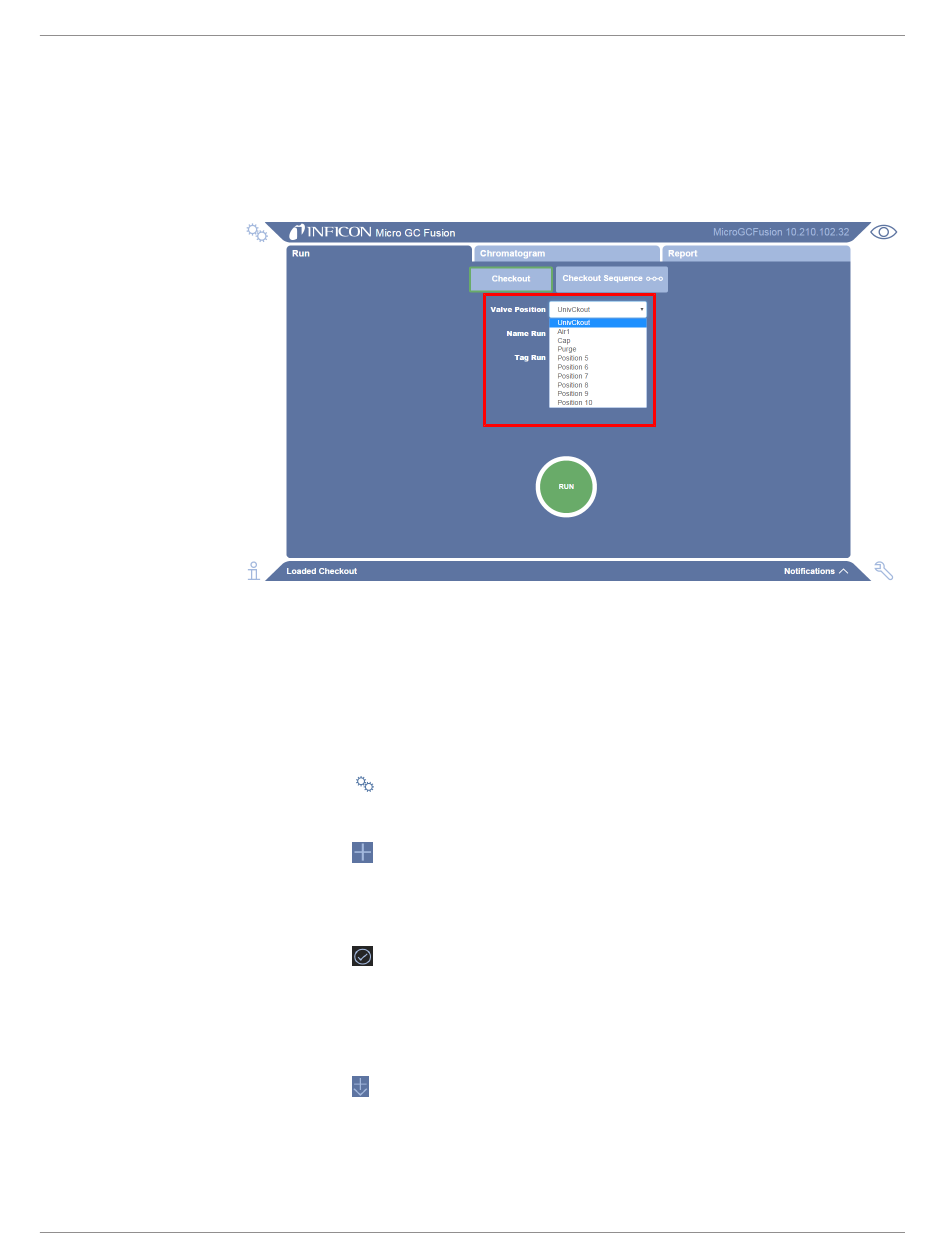

The Micro GC Fusion main page will display a valve position shortcut menu when the
valve is enabled.
To start a single method run:
1
Select the desired Valve Position from the shortcut menu.
2
Type a sample name in Name Run or tags in Tag Run desired.
3 Click the RUN button to initiate a run and the selected valve position.
To create a sequence using a valve:
1 Click the icon.
2
Click the Method / Sequences button.
3
Click the icon.
4
In the pop up window, type a sequence name in the Name: field.
5
Select the Sequence option.
6
Click the icon. The Sequence Editor window opens.
7
Click the step shortcut menu to select an action.
8
To select a method, click the method shortcut menu. Type the number of step
repetitions.
9 Click the icon to add an event.
Software Operation | 9
239 / 319
