6 | Installation

6.13.1.6 Installing the 10-Port SF Valco Stream Selector Accessory

106 / 319

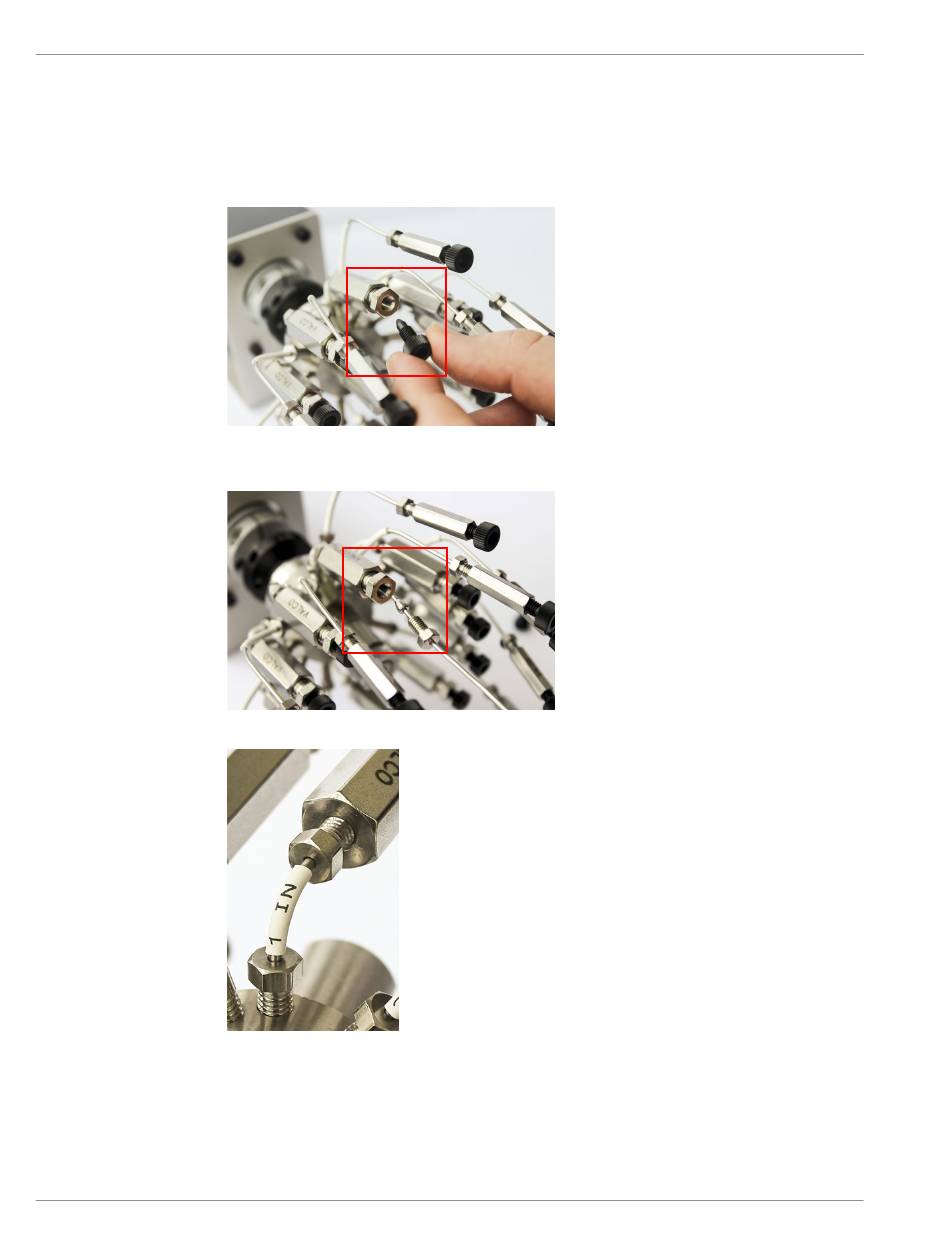

1 Identify sample line 1 IN and remove the black filter caps from the desired
sample line ports.
2
Place a union fitting and ferrule onto a 1/16 in. OD stainless steel sample line.
3
Connect the 1/16 in. sample line to the 1 IN filter on the Valco stream selector.
4
While holding the filter with a 7/16 in. wrench, use a 1/4 in. wrench to turn the
union fitting. Over-tighten by 1/2 turn to swage the union fitting and ferrule onto
the 1/16 in. sample line.
5
Loosen the union fitting and then tighten it again.
