INFICON
074-594-P1H Micro GC Fusion Operating Manual
7

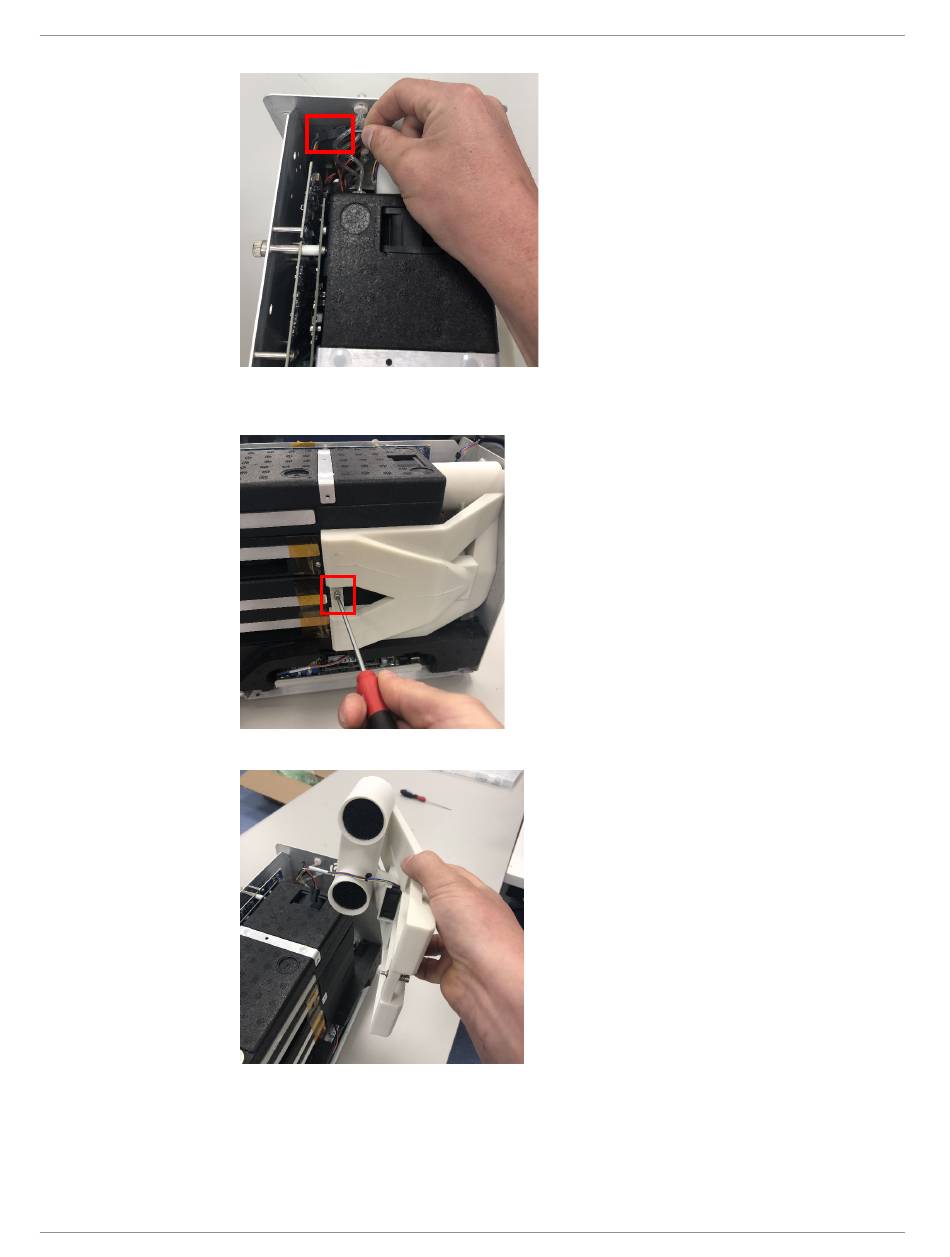

Disconnect the fan cable from the cable extension.
8
Remove the retaining screw holding the JP-100 in place with the 2.5 mm ball
point hex driver.
9
Slide the JP-100 up and out of the instrument.
10
See GC Module Removal Procedure for 2-Module System [} 265] to continue
the module removal process.
Routine Operation | 10
259 / 319
