10 | Routine Operation
274 / 319
6

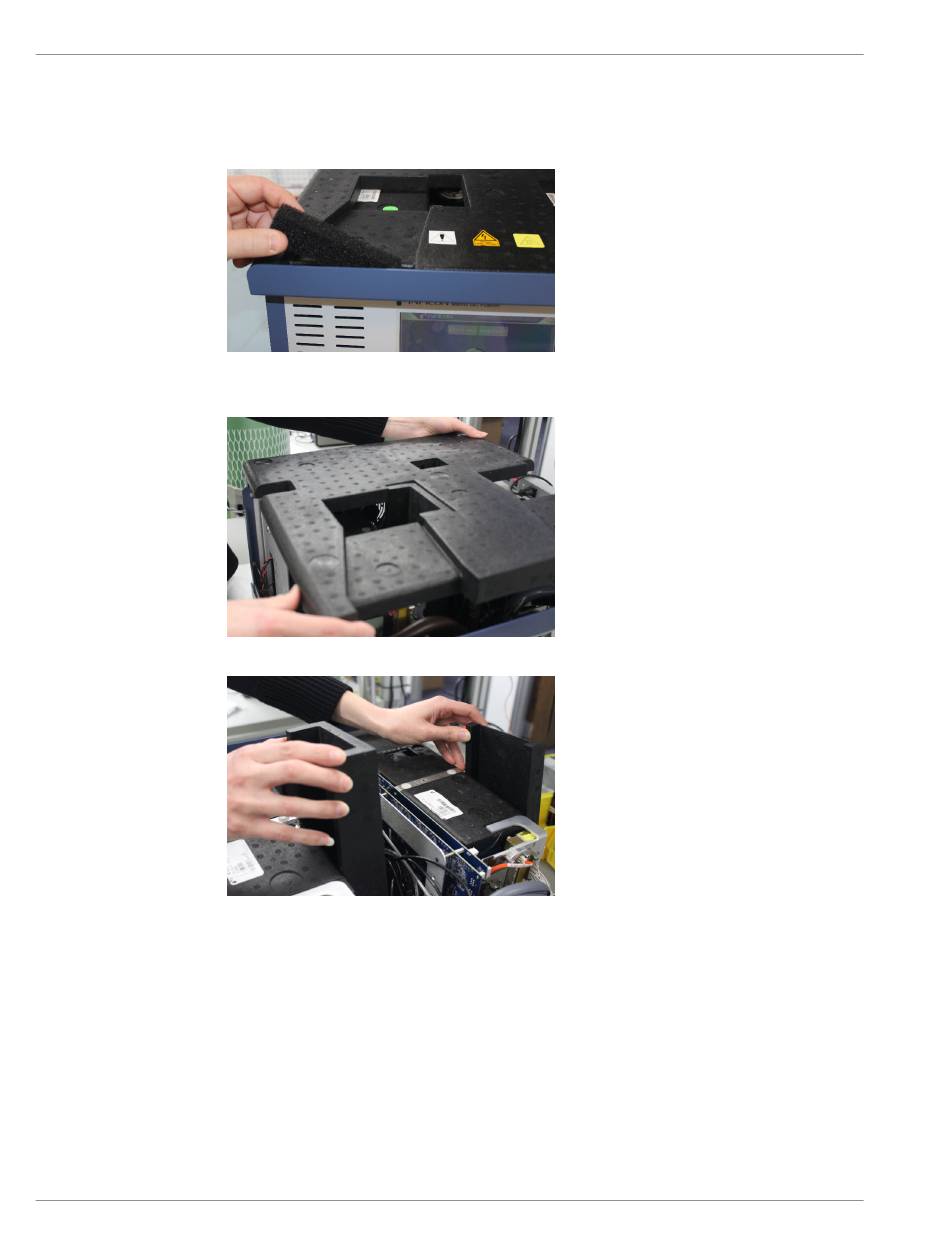

Remove the two small air filters on the top at the front of the unit.
7
Remove the top foam by grasping one front corner and the opposite back corner,
and pulling straight up.
8
Remove the foam by the right side of each module by pulling it straight up out of
the unit.
9
Remove the rear foam by pulling it sideways out of the instrument back.
10 From the left side of the Micro GC Fusion chassis frame, use a Phillips head
screwdriver to loosen the two captive screws that hold the GC module. To
remove the lower GC module, loosen the two captive screws.
