6 | Installation

6.7 Wired Ethernet Connection

6.7.1 Set Up the Dynamic IP Address

84 / 319
Connect an Ethernet (LAN) cable to the RJ45 connector on the rear of Micro GC
Fusion. The other end of this connection can be connected to a computer or Ethernet
switching device.
Micro GC Fusion adopts a dynamic IP address and runs Dynamic Host Configuration
Protocol (DHCP) by default. This means no static IP address is preassigned from the
factory.
When Micro GC Fusion is connected to a computer through a direct Ethernet cable
and the computer is configured to accept an IP address automatically, Micro GC
Fusion will dynamically assign an IP address to the computer such that both devices
are connected automatically.
Under dynamic IP address mode, Micro GC Fusion is also capable of accepting an IP
address when connected to an Ethernet switching device.

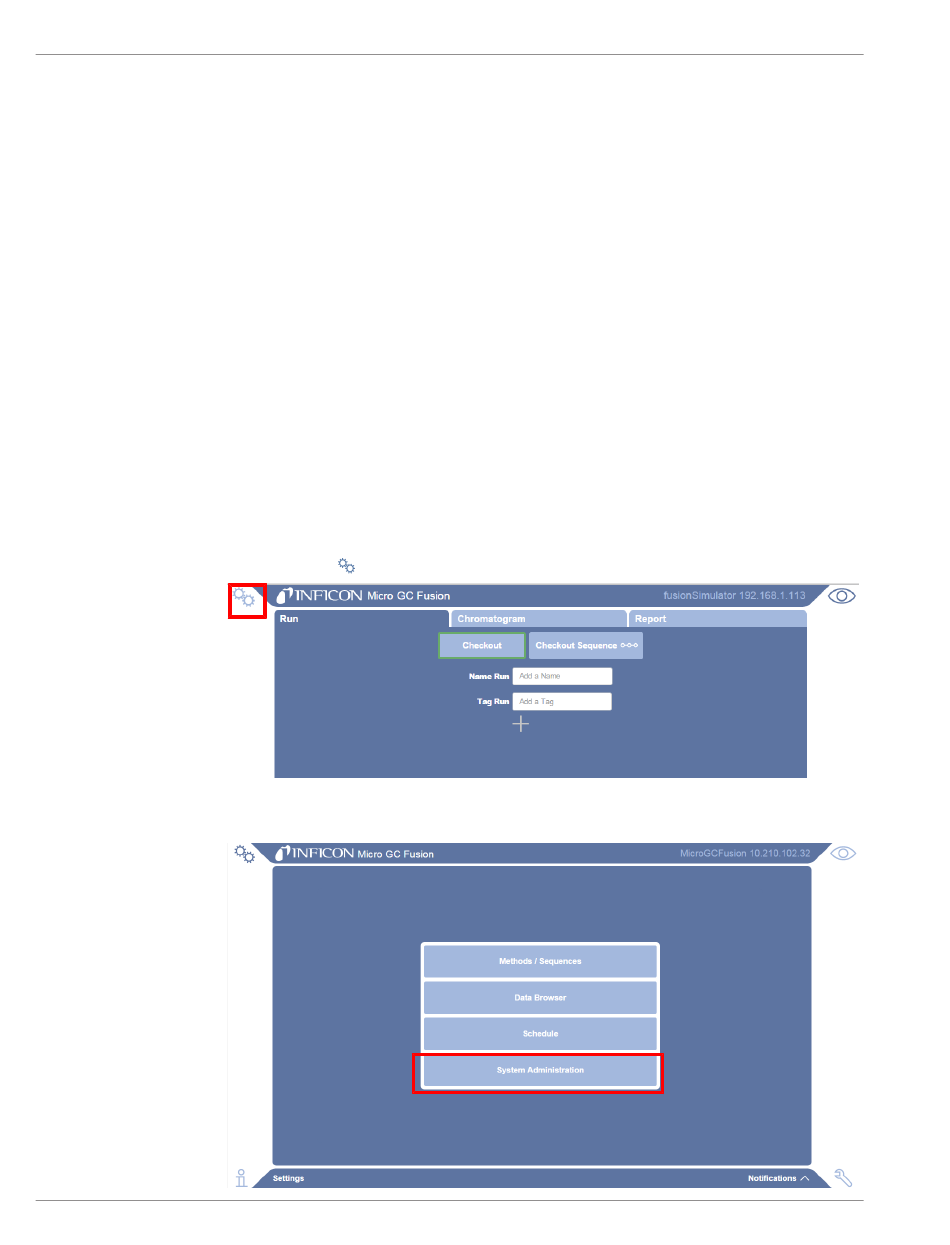

1
Click the icon.
2
Click System Administration.
