10 | Routine Operation
266 / 319
6

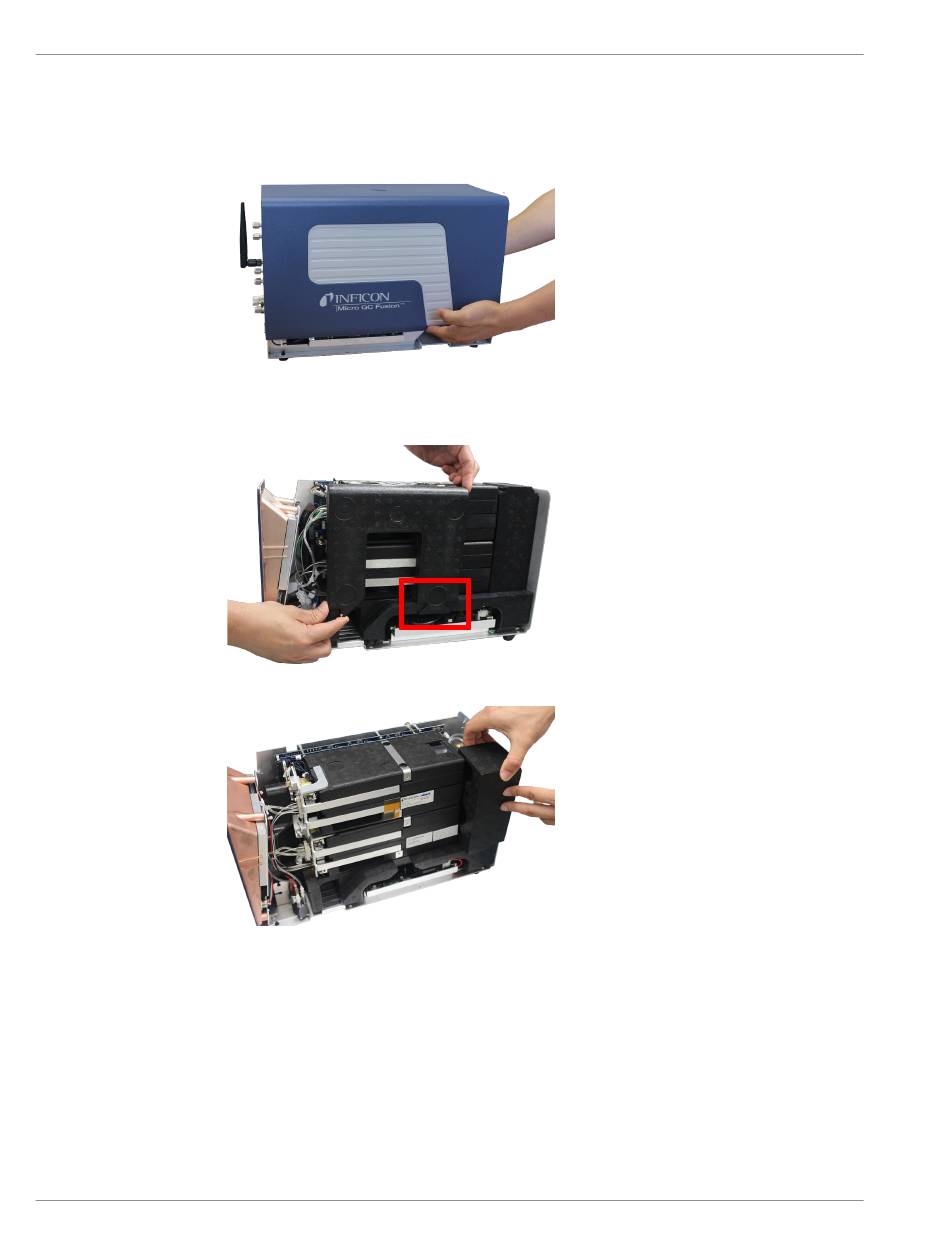

Turn Micro GC Fusion back to its upright position. With finger tips, grasp the
bottom lips of the housing on both sides, carefully pull them apart and lift the
housing off Micro GC Fusion.
7
Remove the side foam by pulling it sideways to free it from the dovetail joint at
the bottom.
8
Remove the rear foam by pulling it sideways out of the instrument back.
9 From the left side of the Micro GC Fusion chassis frame, use a Phillips head
screwdriver to loosen the two captive screws that hold the GC module. To
remove the lower GC module, loosen the two captive screws.
